Step by Step to Pattern-6

1: A pattern project with one pattern and the desired settings is created.

2: Select an existing pattern element in the Knit Explorer -> Dépôt d'élément de tricotage -> Éléments du dessin -> Éléments du dessin, toutes les aiguilles -> Éléments du dessin, jacquard to draw.
- or -
Draw a private motif in the basic pattern with Couleurs de fil and save as pattern element.

3: Draw the desired 2 and 3 color Jacquard areas with the corresponding pattern element over the entire working width (Block Jacquard) into the basic pattern.

4: Generate a row selection over the desired area e.g. area (1) for Jacquard, flottage.

5: Positioning the cursor in the pattern area.

6: Call-up the Sélection / Créer un MC jacquard... context menu.

The Élaborer un jacquard [Nouveau dessin] dialog box appears.

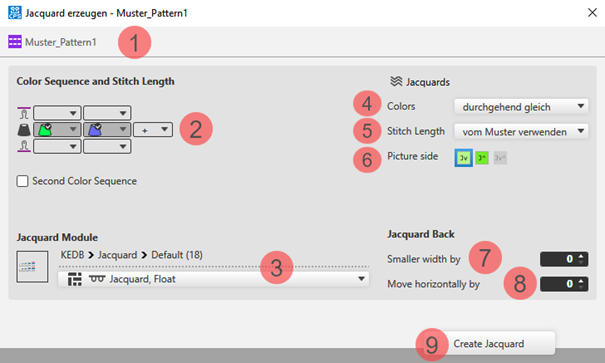

Description to the dialog box


1	Display of the active document window Dessin de conception, for which the dialog box is valid.
2	Séquence de couleurs et longueur de maille
		Display or edit box for the stitch length per color / rear system : Depends on the selection under Longueur de la maille ((4)).
		Display of the used colors in the selection in the color sequence from the left
		Display or edit box for the stitch length per color / front system : Depends on the selection under Longueur de la maille ((4)).
	Deuxième ordre des couleurs
			Default Setting The color sequence is the same as in the first pattern row
			Definition of the color sequence for the second pattern row is possible : Input panel for the color sequence of the second pattern row
3	Module jacquard
		Displays the selected Jacquard module. : Position the cursor in the display, to use the LMB to open the Knit Explorer.
		Display of the path of the selected directory in the Knit Explorer
		Selection list for selecting the desired Jacquard module in the specified directory
Jacquards
4	Couleurs		Selection list for the knitting sequence of the colors constant minimum par rangée minimum par rangée et colonne (XXX)
5	Longueur de la maille		Selection list for the stitch length à utiliser à partir du dessin à utiliser à partir du module Définie par l'utilisateur Make presettings at and / or .
6	Endroit		Selecting the desired face of picture of Jacquard Jv: Endroit devant J^: Endroit à l'arrière Jv^: Endroit devant et derrière : Not with all Jacquard modules available
Envers du jacquard
7	plus étroit de		Specification in case of Jacquard with yarn bridges, by how many needles the back side is to be narrower then the face of picture
8	décaler horizontalement de		Specification by needles for shifting the Jacquard horizontally
9	Élaborer un jacquard		The presets made in the dialog box will be applied to the pattern.

Changing the default settings for Block Jacquard:

: A module for net pick-up and net ending are assigned by default to each area with Block Jacquard in the Projet de dessin.

Possibilities for changing the module allocation:

In Configuration -> Jacquard tab -> Block-Jacquard section
: Changes will apply to all patterns of the Projet de dessin .
Select Jacquards in the ribbon.
: Individual change regarding the desired Jacquard area
Select the context menu -> Ouvrir les jacquards...
: Individual change regarding the desired Jacquard area

7: Make the desired presets in the Élaborer un jacquard [Nouveau dessin] dialog box.

8: Apply the presets to the pattern with the Élaborer un jacquard button.

9: Continue:
Create the next row selection for a new Jacquard area.
- or –
Exit working in the dialog box by Fermer.

The different Jacquards are displayed with different symbols in the pattern and are listed in the Jacquards tool window for another edit.

Direct selection of a Jacquard module in the pattern:

In the pattern there are Jacquard modules in use.

1: Position the cursor in a Jacquard area with an inserted Jacquard module.

2: Apply the Jacquard module with the F5 key.

3: Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.

The selected Jacquard module is inserted in the pattern and in the Jacquards table.

: Pay attention whether the exact same colors are in use in the area to be entered or not!

Used exactly the same colors -> The Jacquard areas will be grouped in the table.
Used different colors -> A new entry is added in the table.

Selection of a Jacquard module in the Jacquard table:

In the pattern there are Jacquard modules in use.
All the Jacquard modules in use are contained in the table.

1: In the Accueil ribbon under Paramètre, open the Jacquards tool window with .

2: Select the desired Jacquard in the Jacquards tool window in the column.
: Pay attention to the Jacquard colors in use!

3: Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.

The following message appears:
Dans la zone où vous avez dessiné se trouve au moins une couleur qui n'est pas contenue dans le jacquard du tableau. La zone est reliée avec un jacquard correspondant. S'il n'y en a pas, un nouveau jacquard sera élaboré.

4: Confirm message with:

OK
-> A new Jacquard with the missing color is created in the table.
Annuler
-> No Jacquard module will be inserted.

Used Jacquards in Pattern-6

	1	Jacquard, flottage
		1 row single jersey 1 row double jersey (for shaft)
	2	Jacquard, flottage sans report : Shaft
		2 rows single jersey
	3	Jacquard, réseau 1x1
		1 row single jersey 1 row double jersey
	2	Jacquard, flottage sans report : Shaft
		2 rows single jersey
	4	Jacquard, réseau 1x2
		1 row single jersey 1 row double jersey
	2	Jacquard, flottage sans report : Shaft
		2 rows single jersey
	5	Jacquard, réseau 1x3
		1 row single jersey 1 row double jersey
	2	Jacquard, flottage sans report : Shaft
		2 rows single jersey
	6	Piqué jacquard
		1 row single jersey 1 row double jersey
	2	Jacquard, flottage sans report
		2 rows single jersey
	7	Jacquard rayure
	8	Any number of rows single jersey
: It is necessary to pay attention when drawing, that not too many colors (yarn carriers) are used depending on the selected machine.

10: To process inserted Jacquards, open the selection list in the Accueil ribbon at Fenêtre Outils and select Jacquards.
- or -
Open the context menu in the Jacquard area in the pattern and click . und Ouvrir les jacquards... .

The Jacquards tool window is opened.

11: Make the desired changes in the table.

Edit inserted Jacquards:

In the pattern there are areas with inserted Jacquard modules.

1: In the Accueil ribbon under Paramètre, open the Jacquards tool window with .
- or -
Open the context menu in the Jacquard area in the pattern and click . und Ouvrir les jacquards... .

The Jacquards tool window is opened.


1	Sélectionner les entrées de tableau sélectionnées dans le dessin
		The Jacquards selected in the table are not displayed as selection in the pattern. : Selection via the first column in the table.
		The Jacquards selected in the table are displayed as selection in the pattern.
ID	Consecutive numbering of the Jacquard areas
2		For drawing a Jacquard module in the pattern The Jacquard area has the same colors as the selected Jacquard: No other entry necessary in the table The Jacquard area has different colors from the selected Jacquard: Another entry necessary in the table
		Index Color: Use in the search area of a Color Arrangement with the marking 'Jq' : If there exist several patterns in the pattern project, the color is marked according to the active document (pattern) with (Utilisé).
3	Module jacquard : Élément de tricotage pour l'envers du jacquard Name of the Jacquard module with the 'L' identifier for local Display of the assigned knitting element color under Caractéristiques
4	Ordre des couleurs : Ordre des couleurs de jacquard sur l'envers Display for the color sequence for the first and second pattern row if Deuxième ordre des couleurs is not active.
5	Deuxième ordre des couleurs : Deusième ordre des couleurs de jacquard pour une rangée de dessin sur deux sur l'envers Display for the color sequence for the second pattern row if Deuxième ordre des couleurs is active.
6	Longueur de la maille Specification for the stitch length which is to be used in the pattern: à utiliser à partir du dessin à utiliser à partir du module Définie par l'utilisateur
7	Décalage X : Décaler le point de départ de l'envers horizontalement Value in needles for the horizontal offset of a Jacquard module
8	Envers plus étroit : Envers plus étroit de n aiguilles par rapport à l'endroit Input value in needles, regarding how many needles the Jacquard back side is to be narrower in relation to the picture side when inserted.
9	Endroit : Endroit du jacquard sur la fonture avant ou arrière avant Rear avant et arrière
10	Prise de réseau jacquard en blocs : Prise de réseau pour le jacquard en blocs Display of the knitting elements in use for the net pick-up with continuous Jacquards (Block Jacquard).
11	Prise de réseau couleur Specification of the color (yarn carrier) which is used for the net pick-up knitting element.
12	Fin de réseau jacquard en blocs : Fin de réseau pour le jacquard en blocs Display of the knitting elements in use for the net ending with continuous Jacquards (Block Jacquard).
13	Fin de réseau couleur Specification of the color (yarn carrier) which is used for the knitting element
14	Prise de réseau jacquard intarsia : Prise de réseau pour le jacquard intarsia Display of the knitting elements in use for the net pick-up with Intarsia with Jacquard back (placed Jacquard back).
15	Supprimer les jacquards sélectionnés		The selected Jacquard is deleted in all the pattern where it is in use.
16	Séquence de couleurs et longueur de maille
		Display or edit box for the stitch length per color / system for rear needle bed : Depends on the selection under Longueur de la maille ((6)).
		Display of the color sequence from the left for the Jacquard area selected in the table
		Display or edit box for the stitch length per color / system for front needle bed : Depends on the selection under Longueur de la maille ((6)).
		Ajouter une nouvelle couleur...
	Deuxième ordre des couleurs
			Default Setting The color sequence is the same as in the first pattern row
			Definition of the color sequence for the second pattern row is possible. : The input panel for the color sequence for the second pattern row is displayed.
17	Dessin avec jacquard actuel List of the patterns, where the Jacquard selected in the table is in use. : Attention: By default, the Jacquard areas with the same Jacquard module and the exact same colors are grouped.
			Ungroup the grouped Jacquard areas. : Necessary, if different settings must be made for the Jacquard areas.
			The inserted Jacquard module will be removed from the area in the pattern or pattern element. Result: In the pattern area or in the pattern element, no Jacquard module is attached anymore.

2: Select the Jacquard to be changed in the table.

3: Activate Sélectionner les entrées de tableau sélectionnées dans le dessin if necessary.

The Jacquard selected in the table will be displayed as a row selection in the design pattern.

4: Make the desired changes in the tool window.

5: Close the tool window with X.

The changes will be applied to the pattern.

Normally, in a Jacquard area, the number of colors found in the design pattern are knitted on the Jacquard back. In special cases it is necessary to knit in an additional thread (color = yarn carrier) on the Jacquard back.
An additional color is added to the Jacquard area for this purpose.

Addition of an additional color:

: The colors identified with knit only on the Jacquard back.

In the pattern there are Jacquard modules in use.
All the Jacquard modules in use are contained in the table.
The Jacquards tool window is open.

1: Select a Jacquard in the first column of the Jacquards tool window.

The color sequence is displayed in the tool window under Séquence de couleurs et longueur de maille.

2: Select an additional color in the edit box at the end of the displayed color sequence using the selection list from the Couleurs de dessin tool window.

The additional color is added to the color sequence and identified with .

Deleting an additional color marked with :

: The colors identified with knit only on the Jacquard back.

In the pattern there are Jacquard modules in use.
All the Jacquard modules in use are contained in the table.
The Jacquards tool window is open.

3: Select a Jacquard with additional colors in the first column of the Jacquards tool window.

The color sequence is displayed in the tool window under Séquence de couleurs et longueur de maille.

4: Position the cursor on the additional color -> click the Supprimer la couleur context menu.

The additional color is removed from the color sequence.

12: To create a project-related lined shape, select the Coupes tab in the tool window.

13: Open the context menu with RMB and select Créer une nouvelle coupe dans la taille M....

The Nouvelle coupe de ligne tool window appears.

14: Make the desired entries:

Nom de la coupe : Any
Format d'entrée : Stitch

15: Confirm with the OK key.

The new lined shape (basic shape) is graphically displayed in the Coupes tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu Fichier -> Options -> Coupe de ligne -> Options pour nouvelle coupe de ligne

16: To create a lined shape based on the displayed rectangle in the ribbon Élaboration de la coupe under Caractéristiques, click the Yableau des lignes button.
- or -
Use the graphic displayed in the New shape xx [size x] document window.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

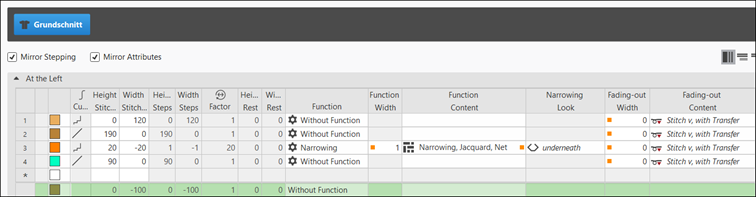

17: Open Yableau des lignes in the ribbon.

The table Coupe de ligne with the values of the rectangular shape is displayed.

18: Insert new shape lines in the table and enter the desired values for the basic shape.

Standard attributes from configuration are assigned to those shape lines.

Example: Lined shape for 'Pattern-6'

Basic Shape: Front

Rules for creating a shape for the jacquard knitting mode with different backs:

Example Front:

Shape Attributes	Rules / possible settings
Knitting Mode:	Different color jacquards
Step width of widening	1 Stitch
Step height of widening	As desired
Quantity of rows without shape modification	As desired
Step width when narrowing	Single-jersey Jacquards (float): 1-3 stitches Double Jersey Jacquards (Stripe, Twill, Net): 1 Stitch
Step height when narrowing	As desired
Fading-out Width	As desired Standard: 2 needles : The motif colors at the border are automatically faded-out and knitted in 1x1.
Knitting mode for fading-out	Module Masquer, jacquard, flottage, réseau
Binding-off width:	Single-jersey Jacquards: from 4 stitches Double Jersey Jacquards:from 2 stitches
Binding-off methods	Single-jersey Jacquards: Binding-off, Structure, Single Jersey Binding-off, SJ, 01 Binding-off, SJ, 02 Double Jersey Jacquards: Binding-off, Structure, Double Jersey Binding-off, DJ, 01 Binding-off, DJ, 02

19: Allocate the desired attributes to the shape lines:

Fade-out width: Set value to 0, since the different Jacquard areas are not to be hidden with Maille v, avec report.
Function width: Set value to 1
