Border Processing for Block Jacquard without Shape

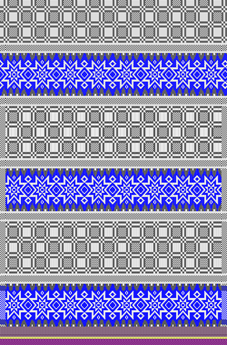

Block Jacquard without border processing

Block Jacquard with border processing

The border processing for Block Jacquard with Jacquards with Float or Net rear sides is worked with the Masquer, jacquard, flottage, réseau fade-out module.

: With rear sides knitted on all needles, no border processing is entered.

Stoll technical module with border processing for Block Jacquard

Border processing for Block Jacquard in pattern without shape:

: Attention:
If the pattern is saved, then the border processing cannot be undone.
Because of this, save the pattern project under a different name before the border processing or duplicate the design pattern in the pattern project.

  1. Pattern project with a design pattern is created.
  2. Jacquard areas are drawn into the basic pattern.
  3. Jacquard backs are inserted.
    1
    Open the selection list in the Accueil ribbon under Dialogues with the button and select Traitement du bord pour jacquard de bloc....
    -  or  -
    In the design pattern, select with LMB -> context menu -> Traitement du bord -> Traitement du bord pour jacquard de bloc....
  1. The Traitement du bord pour jacquard de bloc dialog box appears.

Zone de recherche

The border processing will be entered in the whole pattern

Border processing only in the selected rows

Masquer la lisière du tricot pour le jacquard

Display of the knitting element

Selection of the Masquer, jacquard, flottage, réseau technical module for the border processing

: Fade-out module: Knitting technique single jersey

Largeur

Desired fade-out width for the border processing in needles

:
Default Setting: 2 Needles wide
the border curls up with a fade-out width bigger than 2 needles.

    2
    Make the desired presets in the dialog box.
    3
    Tap the Accepter key.
  1. The desired border processing will be entered and displayed in the design pattern.
    2. 4
    After entering all necessary border processings in the design pattern, close the dialog box with .
    5
    If necessary, to view open the Expanded Symbol View.
    6
    Start the Élaboration technique:
    Show symbol view after Technique.
    7
    Generate Sintral.
    8
    Start the Contrôle du Sintral.
    9
    Extraire the knitting program.
  2. A program for the knitting machine will be created.
  3. Load knitting program into the machine.

: The extracted file can be loaded onto the machine with an USB stick or via Ethernet.

Procedure with the pattern creation:

: With this possibility, the border processing can be changed or deleted with easy steps. A square shape in the size of the design pattern is created for this purpose.

  1. Pattern project with a design pattern is created.
  2. Jacquard areas are drawn into the basic pattern.
  3. Jacquard backs are inserted.
    1
    To create a project-related lined shape, select the Coupes tab in the tool window.
    2
    Open the context menu with RMB and select Créer une nouvelle coupe dans la taille M....
  1. The Nouvelle coupe de ligne tool window appears.
    2. 3
    Make the desired entries:
  • Nom de la coupe : Any
  • Format d'entrée : Stitch
    4
    Confirm with the OK key.
  1. The new lined shape (basic shape) is graphically displayed in the Coupes tab and in a new document window New shape xx [size x] as rectangle.
    2. 5
    To adjust the displayed rectangle to the size of the basic pattern, in the ribbon Élaboration de la coupe under Caractéristiques, click the Yableau des lignes button.
    - or -
    Use the graphic displayed in the New shape xx [size x] document window.
    6
    Open Yableau des lignes in the ribbon.
  2. The table Coupe de ligne with the values of the rectangular shape is displayed.
    3. 7
    Adapt the values in the table to the size of the basic pattern.
    8
    Allocate the desired attributes to the shape lines:
  • Fade-out width: Set value to 0, since the different Jacquard areas are not to be hidden with Maille v, avec report.
    9
    In the New Shape xx [Size x] document window, select the desired shape line with the graphic shape presentation.
    10
    Position cursor on the selected shape line.
    11
    Select LMB -> Propriétés des lignes context menu.
  1. The Propriétés des lignes tool window is opened for the selected shape line.
    2. 12
    Make the following entries under the Pour Jacquards (flottage / réseau) section:
  • Content: Select Masquer, jacquard, flottage, réseau Fade-out Module.
  • Width: specify the desired fade-out width.
    • Default setting: 2 Needles wide
      Attention: The fade-out width is also executed in the rows of the net pick-up and the net ending.
    13
    In the Coupes tool window select the created shape with LMB.
    14
    Open the context menu -> Positionner la coupe -> select Pattern name.
  1. The shape is floating in the selected basic pattern.
    2. 15
    Enable the button of the document window.
    16
    Start the Élaboration technique:
    Show symbol view after Technique.
    17
    Generate Sintral.
    18
    Start the Contrôle du Sintral.
    19
    Extraire the knitting program.
  1. A program for the knitting machine will be created.
  2. Load knitting program into the machine.
