Working with the Stitch Length (NP) Tab

I. Open stitch length tab and select or change an entry:

  1. Amostra de desenho is selected.
    1
    In the Início ribbon in the Parâmetros group or under Tool Windows open the selection list and select Dados de setup.
  1. The Dados de setup tool window appears.

1

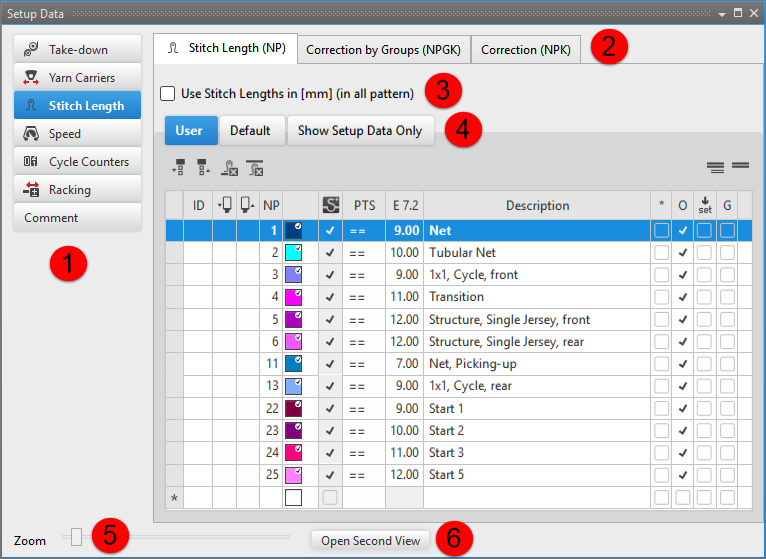

All sections of Machine Parameters appear in Setup

2

Tabs for additional machine parameters

3

Use stitch length values in the STOLL default unit

Use stitch length values in millimeters

4

Tabs

Usuário

  • Stitch lengths used in the pattern
  • Stitch lengths marked as favorites

Predefinição

All the stitch lengths of the STOLL template

Exibir só dados de setup
[Name of the active document]

All the stitch lengths used in the pattern

: These data will be saved to the setup file.

5

Zoom

Zoom in or out

6

Abrir a segunda vista

Opening an additional Dados de setup tool window.

    2
    Select the Graduação section.
    3
    Select the Graduação (NP) / Predefinição tab.
    4
    Select the desired stitch length in the or column of the table and insert it in the control column.

Result:
The default settings in the control columns of these design rows will be overwritten.

Options in the toolbar

Selecting the default value to enter in the control column

Selecting the default value to enter in the control column

Deleting entry in the control column

Deleting entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the stitch length tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting stitch length to enter for the front needle bed

Selecting stitch length to enter for the rear needle bed

NP

Display of the index for the indirect (NPn=1-500) or direct (D) stitch length allocation

Colors

Display of colors to enter in the control columns

PTS

Specification for NPJ or PTS (Power Tension Setting).

Gauge E

List of stitch length values depending on the gauges of the selected machine

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Predefinição table available.

Entry is defined as favorite, meaning the entry is available within the Usuário table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Standard)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Predefinição or Usuário table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Predefinição or Usuário table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

II. Specify favorites:

  1. Amostra de desenho is selected.
    1
    Open the Dados de setup tool window.
    2
    Select the Graduação section.
    3
    Select the Graduação (NP) / Predefinição tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the front or rear stitch length.

III. Add a new entry in the stitch length tab:

New entries can only be added in the Usuário tab.

  1. Amostra de desenho is selected.
    1
    Open the Dados de setup tool window.
    2
    Select the Graduação section.
    3
    Select the Graduação (NP) / Usuário tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Adicionar linha... context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

The changes will be saved to the *.spf file when saving the project.

IV. Add entry of the Stitch Lengths (NP) tab to the pattern:

  1. Amostra de desenho is selected.
  2. The control columns for Front Stitch Length and Rear Stitch Length are displayed.
    1
    Open the Dados de setup tool window.
    2
    Select the Graduação section.
    3
    Select the Graduação (NP) / Usuário tab.
    4
    Select the desired stitch length in the or column:
    5
    The stitch length is entered in the control column.
