Step by Step to Pattern-1

  1. A pattern project with one pattern and the desired settings is created.
    1
    Work with the following drawing tools:

While drawing with drawing tools without the selection of a pattern color, a
selection is generated.
It can be deleted with the shortcut Ctrl+D.

  • Deleting all cursor attributes: Key ESC
  • Deleting of individual cursor attributes with X via the corresponding attribute

  • Eliminar cor

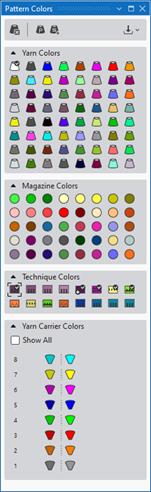

For drawing the design pattern, with it several yarn carriers may be necessary for each yarn color.

  • Bobbin with color
    Not used within design pattern
  • Bobbin with color +
    Used within design pattern

: Yarn carriers will not be allocated automatically to a yarn carrier rail.
Yarn carrier home position can be determined automatically.

    2
    Change the width and height of the pattern.
    3
    Draw-in colored stripes in any yarn color from row 27 at the height of 18 rows.
    4
    Adjust the view of the control columns.

Displaying the control columns in the document window

  • The control columns can be displayed in every document window.
    • Mostrar colunas de controle (TAB)
    • Ocultar colunas de controle (TAB)
  • The control columns are divided into colored groups.

View Options of the Control Columns:

  • Exibir colunas de controle utilizadas
  • Não exibir nenhuma coluna de controle
  • Exibir todas as colunas de controle
  • Colunas de controle personalizadas
    • Project Layout
    • User Layout

Overview of all possible control columns after technical processing

:

  • Before technical processing:
    • The pattern row numbers are displayed in the column.
  • After technical processing:
    • The technical row number is displayed in the column.



Table header

1.

Symbols to identify control columns

2.

Default settings from global file STOLL for the respective control column with a new pattern project

:

  • No Entry
    No default settings for this control column
  • Colored entry
    STOLL Default Setting
    This default setting is displayed more transparent in every pattern row and used by the Processamento.
    • Change of the Stoll default setting in the table header:
      Change valid for all pattern rows in the selected pattern
      : It is not automatically applied in other patterns.
    • The change in the desired pattern rows:
      The change overwrites the default setting in the desired pattern rows with the selected entry (= colored entry)



Group 1

Fileira de amostra

Display the consecutive numbering of the pattern rows.

: If a pattern row consists of several rows (technical rows), the pattern row number is visible multiple times.

Número de linha Jacquard

Display the Jacquard line number.

: Available after Processamento.

Número de linha Sintral

Display the Sintral line number.

: Available after Processamento.

Group 2

Número de curso

Display stroke number

: Is determined by Processamento.

Curso

Specifications for defining the carriage stroke

Direção do carro

Presets of the carriage direction

: Is determined by Processamento.

Sistema

Presets of the use of knitting systems

: Is determined by Processamento.

Função do sistema

With the use of special cams

  • Holding-deep
  • Knitting via split curve
  • Not Sunken Tuck
  • Devoré
  • FlexPly

Group 3

Estirador principal (WMF)

Presets for comb, main take-down and auxiliary take-down

Abrir estirador principal (=W= / =C=)

Estirador auxiliar (W+F)

Pente

Group 4

Controle do depósito (LK / LW)

Presets for the control of the collecting area

: Is only displayed with machines with control of the collecting area.

Sensor de peças (WS)

Specifications for the fabric sensors

: is only displayed for the CMS 9xx

Group 5

Velocidade (MSEC)

Presets for carriage speed

Máquina lenta (ML)

Parada da máquina (MS)

Group 6

Graduação dianteira (NPv)

Presets for the stitch length on front and rear needle bed

Graduação traseira (NP^)

Group 7

Ciclo (RS)

Specifications for cycles for length control

  • Inner cycles
  • Outer cycles

Group 8

Fixação da ourela

Presets for the border fixation

Group 9

Instrução de Sintral / PRINT

Presets for the Sintral and PRINT command

Ativação de funções (F:)

Presets for function calls and additional commands

Group 10

Sair tecendo

Presets for knitting-out all the yarn carriers of a common row

Color Arrangement

Color entry for Color Arrangements in use

Conexão intarsia

Presets for the tuck binding with intarsia / gore in a common row

Group 11

Transferir malhas circundantes

Preset for transferring of the whole pattern or in a defined areas

Transferência com sistemas múltiplas

Module Arrangement

Color entry for Module Arrangements in use

Desprender e Transferir

Preset for combining transferring and casting-off in a common technical row of the whole pattern or in a defined areas

Group 12

Ordenar fileiras técnicas

Specifications for

  • Sorting of rows
  • Weft yarn insertion with CMS 330 / 530

Group 13

Tricotagem com variador (VJA^)

Specifications for jacquard selection at the rear needle bed

Tipo de variador (VN, VU, V#)

Preset of racking type

  • Normal racking (N)
  • Half racking (#)
  • Transfer racking (U)

Valor de variador

Specification of the racking step for the rear needle bed

Correção do variador (VCI)

Preset for racking corrections

Group 14

Escalonamento de guia-fios (YD/YDI)

Presets of yarn carrier staggering on the fabric selvedge for Setup

Correção de guia-fios (YC/YCI)

Presets of yarn carrier corrections for Setup

Predefinições dos guia-fios

Specifications for

  • Swiveling of I yarn carriers
  • Clamp of yarn carriers
  • Open Clamp
  • Stop at the SEN edge
  • Waiting position of the yarn carriers

Guia-fios

Column for display of all relevant yarn carrier data after Processamento

Two modes to enter data in the control columns:

In the Início ribbon under Desenhar.

  • 1 clique
    Press LMB at start position and hold it until the end position.
  • 2 cliques
    Click and release LMB at start position and click it again at the end position.

Two modes to delete data in the control columns:

In the Início ribbon under Preencher.

  • Delete All from Control Column (except racking)
    Eliminar
  • All Control Columns to Default
    Predefinição

The procedure for multiple entries in control columns:

  • Ciclo (RS)
  • Predefinições dos guia-fios
  • Parada de guia-fios

Add an entry to an existing entry:

  • Add
    With the Ctrl key
    • Select the desired location in the menu:
    • Set cursor to the start position.
    • Press the CTRL key.
    • Press LMB and hold it until the end position.
    • Release the left mouse button.
  • Add
    With the Ctrl key
    • Select the desired location in the menu:
    • Set cursor to the start position.
    • Press the CTRL key.
    • Click left mouse button.
    • Draw the cursor to the end position.
    • Click left mouse button again.

Delete Entry:

  • Delete
    With the CTRL + ALT key
    • Set cursor to the start position.
    • Press LMB and hold it until the end position.
    • Release the left mouse button.
  • Delete
    With the CTRL + ALT key
    • Select the desired location in the menu:
    • Set cursor to the start position.
    • Press the CTRL + ALT keys.
    • Click left mouse button.
    • Draw the cursor to the end position.
    • Click left mouse button again.

Selecting Control Columns

    1
    Position the cursor in the header of the control columns and press the right mouse button to open the context menu.
  1. The context menu appears.
    2. 2
    Select the desired control columns in the context menu via Colunas de controle personalizadas.
    3
    Open the context menu with RMB.
    4
    Select Salvar a representação como predefinição para amostras de desenho in the menu.
  1. The setting will be saved and loaded when opening a design pattern.

Viewing Options of Control Columns

Colunas de controle personalizadas

Adding or closing the desired control columns in the selection list

Exibir colunas de controle utilizadas

Display of the control columns used in the pattern

Exibir todas as colunas de controle

Display of all control columns

Não exibir nenhuma coluna de controle

Hide the display of control columns

Fixar a coluna de controle (fazer duplo clique)

Freezed control columns keep visible when hiding control columns
Identification of freezed control columns by a point

: Unfreezing by Ocultar este grupo or Ocultar esta coluna de controle

Ocultar esta coluna de controle

Hide control columns at the cursor position.

Ocultar este grupo

Hide all control columns allocated to a group.

Salvar a representação como predefinição para amostras de desenho

Save the selected control columns as user defined default for editing the design pattern.

Carregar a representação predefinida para amostras de desenho

Restore the customized default for editing the design pattern.

Restabelecer a representação para amostras de desenho para a predefinição da STOLL

Restore the saved STOLL default setting.

    5
    Change the following pattern parameters using the control column in the colored stripe:
    1
    Position the cursor on the control column.
    2

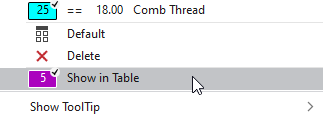

    Select Exibir na tabela in the context menu.

    - or -
    Select directly from the list of the Favoritos.
  1. The Dados de setup dialog box appears.
    2. 3
    Open the Predefinição tab.
    - or -
    Open the Usuário tab.
    4
    Select the desired existing entry from the tables.
    - or -
    In the Usuário tab position the cursor in the first column and select Adicionar linha... in the context menu.
  2. New entry is added at the end of the table.
    3. 5
    Make the desired presettings for the entries in use:
  • Define NP index.
  • Change Color.
  • Enter NP value.
  • Enter the description.
    6
    In the desired area of the control column enter the color of the stitch length.

Change the specifications for the stitch lengths in the pattern:

  1. See and modify the default settings for the stitch lengths in the Amostra de desenho.
  2. The Graduação dianteira (NPv) / Graduação traseira (NP^) control columns appear.
    1
    Open the existing Projecto de amostra and save it with a new name via the Arquivo / Salvar como menu.
    -  or  -
    Create new Projecto de amostra with an individual pattern.
    2
    Set the cursor to the Graduação dianteira (NPv) / Graduação traseira (NP^) control columns of the Amostra de desenho document window and click the RMB.
    -  or  -
    Open the Graduação (NP) context menu in the second row of the table header containing the default settings.
  1. The stitch lengths context menu appears.
  • The stitch lengths used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Graduação (NP) / Predefinição tab under the Graduação section of the Dados de setup tool window are displayed.
    3
    Select the desired stitch length and enter it in the control column.
    -  or  -
    Fill a selection.

Notice:

The stitch lengths shown in the context menu correspond to the table in theDados de setup tool window under the Graduação section of the Graduação (NP) / Usuário tab.

Open stitch length tab and select or change an entry:

  1. Amostra de desenho is selected.
    1
    Open the selection list in the Início ribbon under Parâmetros at Tool Windows and select the Dados de setup .
    -  or  -
    Click the symbol directly under Parâmetros.

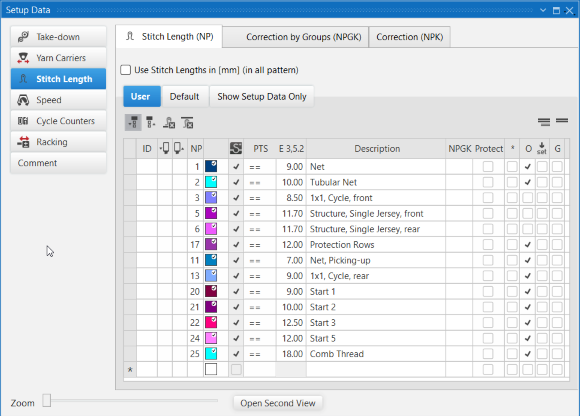

  1. The Dados de setup tool window appears.

1

All sections of Machine Parameters appear in Setup

2

Tabs for additional machine parameters

3

Use stitch length values in the STOLL default unit

Use stitch length values in millimeters

4

Tabs

Usuário

  • Stitch lengths used in the pattern
  • Stitch lengths marked as favorites

Predefinição

All the stitch lengths of the STOLL template

Exibir só dados de setup
[Name of the active document]

All the stitch lengths used in the pattern

: These data will be saved to the setup file.

5

Zoom

Zoom in or out

6

Abrir a segunda vista

Opening an additional Dados de setup tool window.

    2
    Select the Graduação section.
    3
    Select the Graduação (NP) / Predefinição tab.
    4
    Select the desired stitch length in the or column of the table and insert it in the control column.
  • Graduação dianteira (NPv)
    Click the stitch length in the column.
  • Graduação traseira (NP^)
    Click the stitch length in the column.
  • Graduação dianteira (NPv) and Graduação traseira (NP^)
    Click the stitch lengths with the CTRL key in the and columns.

The default settings in the control columns of these design rows will be overwritten.

Options in the toolbar

Selecting the default value to enter in the control column

Selecting the default value to enter in the control column

Deleting an entry in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the stitch length tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting stitch length for the front needle bed to enter it into the control column and as PTS into the pattern

Selecting stitch length for the rear needle bed to enter it into the control column and as PTS into the pattern

NP

Input and display of the index for the indirect (NPn=1-500) or direct (D) stitch length allocation

Colors

Display of colors to enter in the control columns

PTS

Specification for NPJ or PTS (Power Tension Setting).

Gauge E

List of stitch length values depending on the gauges of the selected machine

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Predefinição table available.

Entry is defined as favorite, meaning the entry is available within the Usuário table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Predefinição or Usuário table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Predefinição or Usuário table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Amostra de desenho is selected.
    1
    Open the Dados de setup tool window.
    2
    Select the Graduação section.
    3
    Select the Graduação (NP) / Predefinição tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the front or rear stitch length.

Add a new entry in the stitch length tab:

Notice:
New entries can only be added in the Usuário tab.

  1. Amostra de desenho is selected.
    1
    Open the Dados de setup tool window.
    2
    Select the Graduação section.
    3
    Select the Graduação (NP) / Usuário tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Adicionar linha... context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Stitch Lengths (NP) tab to the pattern:

  1. Amostra de desenho is selected.
  2. The control columns for Front Stitch Length and Rear Stitch Length are displayed.
    1
    Open the Dados de setup tool window.
    2
    Select the Graduação section.
    3
    Select the Graduação (NP) / Usuário tab.
    4
    Select the desired stitch length in the or column:
  • Entry in the control column:
    Click on the stitch length in the column.
  • Entry in the control column:
    Click on the stitch length in the column.
  • Entry in the and control column
    Click on the stitch lengths with the CTRL key in the and columns.
    5
    Enter the stitch length in the control column.
    6
    If necessary, change more pattern parameters, e.g. in the colored stripe, via the control columns:

Change the specifications for the main take-down in the pattern:

  1. You see and change the default settings for the main take-down in the Amostra de desenho.
  2. The Estirador principal (WMF) control column is displayed.
    1
    Open the existing Projecto de amostra and save it with a new name via the Arquivo / Salvar como menu.
    -  or  -
    Create new Projecto de amostra with an individual pattern.
    2
    In the document window Amostra de desenho, position the cursor on the Estirador principal (WMF) control column and click the RMB.
    -  or  -
    Open the context menu in the second row of the table header containing the default settings with RMB.
  1. The context menu for the Estirador principal (WMF) appears.
  • The fabric take-down functions (WMF) used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Estirador principal (WMF / WBF) / Predefinição tab under the Estiragem section of the Dados de setup tool window are displayed.
    3
    Select the desired main take-down value and enter it in the control column.
    -  or  -
    Fill a selection.

: The main take-down values (WMF) displayed in the context menu correspond to the table in the Dados de setup tool window in the Estirador principal (WMF) section of the Usuário tab.

Select an entry of the Main Take-down (WMF) tool window and change it:

  1. Amostra de desenho is selected.
  2. The Estirador principal (WMF) control column is displayed.
    1
    Open the Dados de setup tool window.
    Início ribbon -> Tool Windows -> Dados de setup selection menu
    -  or  -
    Parameter ribbon group-> Dados de setup.
  1. The Dados de setup tool window appears.
    2. 2
    Select the Estiragem section.
    3
    Estirador principal (WMF) / Predefinição tab
    - or -
    Select Usuário.
    4
    Select the desired main take-down value in the column and enter it in the control column.
  1. The default setting in the control column will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

WMF

Hide the display of the columns wit the main take-down values for the Multiflex take-down

Show the display of the columns wit the main take-down values for the Multiflex take-down

WBF

Hide the display of the columns wit the take-down values for the belt take-down

Show the display of the columns wit the take-down values for the belt take-down

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the main take-down (WMF) tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting the main take-down value to enter it in the control column

WMF / WBF

Index for indirect allocation of the fabric take-down value for the main take-down Multiflex or belt take-down

Color

Display of colors to enter in the control columns

WM(N)

WM

Fabric take-down value when this is not changed in accordance with the quantity of needles.

WMN

Fabric take-down value when this is changed in accordance with the quantity of needles (fabric width).

WM

Fabric take-down value when this is not changed in accordance with the quantity of needles.

WM min

Fabric take-down value for minimum fabric width

WM max

Fabric take-down value for maximum fabric width

N min

Quantity of needles for minimum fabric width

N max

Quantity of needles for maximum fabric width

WMI

Fabric take-down impulse value

WM^

Specification of a number of degrees for the reverse rotation of the take-down

WMC

Value for the sensitivity of the stop motion control of the main take-down

WM+C

Specification of the system number for the fabric take-down control

WMK+C

Specification of the system number for comb monitoring

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Predefinição table available.

Entry is defined as favorite, meaning the entry is available within the Usuário table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Predefinição or Usuário table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Predefinição or Usuário table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Amostra de desenho is selected.
    1
    Open the Dados de setup tool window.
    2
    Select the Estiragem section.
    3
    Select the Estirador principal (WMF) / Predefinição tab.
    4
    Mark the desired entry of the table in the * column as .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the main take-down.

Add a new entry in the main take-down (WMF) tab:

: New entries can only be added in the Usuário tab.

  1. Amostra de desenho is selected.
    1
    Open the Dados de setup tool window.
    2
    Select the Estiragem section.
    3
    Select the Estirador principal (WMF) / Usuário tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Adicionar linha context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Main take-down (WMF) tab to the pattern:

  1. Amostra de desenho is selected.
  2. The Estirador principal (WMF) control column is displayed.
    1
    Open the Dados de setup tool window.
    2
    Select the Estiragem section.
    3
    Select the Estirador principal (WMF) / Usuário tab.
    4
    Select the desired main take-down value in the column.
    5
    Enter the selected main take-down value in the control column.

Change specifications for the auxiliary take-down in the pattern:

: In the Auxiliary take-down (W+F) control column the value W+F1 is entered by default and the value is set to 'Don't Care'. This allows for activating / deactivating the auxiliary take-down at the machine.

  1. You see and change the default settings for the auxiliary take-down in the Amostra de desenho.
  2. The Auxiliary take-down (W+F) control column is displayed.
    1
    Open the existing Projecto de amostra and save it with a new name via the File / Save as… menu.
    -  or  -
    Create new Projecto de amostra with an individual pattern.
    2
    In the document window Amostra de desenho, position the cursor on the Auxiliary take-down (W+F) control column and click the RMB.
    -  or  -
    Open the Auxiliary take-down context menu in the 2nd row of the table header containing the default settings with RMB.
  1. The context menu for the auxiliary take-down (W+F) appears.
  • The auxiliary take-down functions (W+F) used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Estirador auxiliar (W+F) / Predefinição tab under the Estiragem section of the Dados de setup tool window are displayed.
    3
    Select the desired auxiliary take-down value and enter it in the control column.
    -  or  -
    Fill a selection.

: The auxiliary take-down values (W+F) shown in the context menu correspond to the table in the Dados de setup tool window under the Estiragem section of the Estirador auxiliar (W+F) / Usuário tab.

Select an entry of the Auxiliary Take-down (W+F) tool window and change it:

  1. Amostra de desenho document window is selected.
  2. The Estirador auxiliar (W+F) control column is displayed.
    1
    Open the selection list in the Início ribbon at Tool Windows and select Dados de setup.
    -  or  -
    Directly under Parâmetros click the Dados de setup icon.
  1. The Dados de setup tool window appears.
    2. 2
    Select the Estiragem section.
    3
    Estirador auxiliar (W+F) tab / Predefinição
    - or -
    Select Usuário.
    4
    Select the desired auxiliary take-down value in the column and enter it in the control column.
  1. The default setting will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the auxiliary take-down (W+F) tool window

Column

Display

ID

Consecutive numbering and sorting of the entries

Selecting the speed value to enter it in the control column

W+F

Index for indirect allocation to the auxiliary take-down

Color

Display of colors to enter in the control columns

W+

Open or close the auxiliary take-down

W+=

Speed of auxiliary take-down

W+P

Value for the contact pressure of the auxiliary take-down (CMS 822 only)

W+C

Specification of the system number for the auxiliary take-down control

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Predefinição table available.

Entry is defined as favorite, meaning the entry is available within the Usuário table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Predefinição or Usuário table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Predefinição or Usuário table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Amostra de desenho is selected.
    1
    Open the Dados de setup tool window.
    2
    Select Estiragem section -> Estirador auxiliar (W+F) tab.
    3
    Select the Predefinição tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the auxiliary take-down (W+F) tab:

: New entries can only be added in the Usuário tab.

  1. Amostra de desenho document window is selected.
    1
    Open the Dados de setup tool window.
    2
    Select the Estiragem section.
    3
    Select the Estirador auxiliar (W+F) / Usuário tab.
    4
    Set the cursor in the left table column to the * row.
    5
    With the RMB open the context menu and select Add row.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Auxiliary take-down (W+F) tab to the pattern:

  1. Amostra de desenho document window is selected.
  2. The Auxiliary take-down (W+F) control column is displayed.
    1
    Open the Dados de setup tool window.
    2
    Select the Estiragem section.
    3
    Select the Estirador auxiliar (W+F) / Usuário tab.
    4
    Select the desired auxiliary take-down value in the column.
    5
    Enter the selected auxiliary take-down value in the control column.

Change the specifications for the carriage speed in the pattern:

  1. See and modify the default settings for the stitch lengths in the Amostra de desenho.
  2. The Velocidade (MSEC) control column is displayed.
    1
    Open the existing Projecto de amostra and save it with a new name via the Arquivo / Salvar como menu.
    -  or  -
    Create new Projecto de amostra with an individual pattern.
    2
    In the document window Amostra de desenho, position the cursor on the Velocidade (MSEC) control column and click the RMB.
    -  or  -
    In the 2nd row of the table header, open the context menu containing the default settings with RMB.
  1. The context menu for the Velocidade (MSEC) appears.
  • The speed functions (MSEC) used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Dados de setup tool window under the Velocidade section of the Predefinição table are displayed.
    3
    Select the desired main take-down value and enter it in the control column.
    -  or  -
    Fill a selection.

: The velocity values (MSEC) displayed in the context menu correspond to the table in the Dados de setup tool window in the Velocidade section / Usuário tab.

Select an entry of the Speed (MSEC) tool window and change it:

  1. Amostra de desenho is selected.
  2. The Velocidade (MSEC) control column is displayed.
    1
    Open the selection list in the Início ribbon at Janela de ferramentas and select Dados de setup.
    -  or  -
    click the Dados de setup icon directly under Parâmetros.
  1. The Dados de setup tool window appears.
    2. 2
    Select the Velocidade (MSEC) section.
    3
    Predefinição Tab
    - or -
    Select Usuário.
    4
    Select the desired speed value in the column and enter it in the control column.
  1. The default setting will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the Speed (MSEC) tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting the speed value to enter it in the control column

MSEC

Index for indirect allocation of the speed

Color

Display of colors to enter in the control columns

m/s

Value for the speed

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Predefinição table available.

Entry is defined as favorite, meaning the entry is available within the Usuário table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Predefinição or Usuário table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Predefinição or Usuário table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Amostra de desenho is selected.
    1
    Open the Dados de setup tool window.
    2
    Select the Velocidade (MSEC) section.
    3
    Select the Predefinição tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the speed (MSEC) tab:

: New entries can only be added in the Usuário tab.

  1. Amostra de desenho document window is selected.
    1
    Open the Dados de setup tool window.
    2
    Select the Velocidade (MSEC) section.
    3
    Select the Usuário tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Adicionar linha... context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Speed (MSEC) tab to the pattern:

  1. The Amostra de desenho document window is selected.
  2. The Velocidade (MSEC) control column is displayed.
    1
    Open the Dados de setup tool window.
    2
    Select the Velocidade (MSEC) section.
    3
    Select the Usuário tab.
    4
    Select the desired speed value in the column.
    5
    Enter the selected speed value in the control column.
    7
    Import the existing sleeve shape and position it.

: If the basic pattern is too small for the shape, then the size of the basic pattern will be automatically adjusted to the size of the shape.
Attention: Perhaps the color strap needs to be adapted.

    8
    Open the line table by the Tabela de linhas button to get an explanation of a shape.

Structure of a basic shape

A

Starting line

B

Area with shape modification because of widening

C

Area without shape modification

D

Area with shape modification because of narrowing

E

End line

Recommendation:
Create a shape of an even numbered height in total.

Fading-out

Exchange of the knitting mode at the shape edges

While cutting out the shape, the knitting mode is replaced at the shape edges.

1

Cutting-out the shape

  • Grey area = Outside shape
  • White area = Within shape

: This results in the shape edges for fading-out, widening, and narrowing.

2

Marked area (blue):

  • Fade-out width
    Number of stitches, that should be replaced with a different knitting mode.
  • Fade-out content
    Selection of the desired knitting mode for the specified fading-out width

Widening

Widening of a fabric piece

1

Step width of widening

: Widening by 1 needle only

2

Step height of widening

= Number of rows between two widening steps

: Step height is as desired.

Widening Width

Depending from the selected widening module

: When widening by 1 needle with the Aumento, predefinição module, the widening width is 1 by default.

Narrowing

Narrowing of a fabric piece

: The transfer of stitches results in double stitches (fashioning marks).

1

Step Width

  • 1 needle (stitch) narrowing
  • 2-needle-narrowing (stitches)
  • 3-needle-narrowing (stitches)
  • From a narrowing greater than 4 needles (stitches) a binding-off is carried out

2

Step height

= Number of rows between two narrowing steps

: Step height is as desired.

Narrowing Width

Depending on the knitting mode of the basic pattern

Rules for a raglan sleeve shape in the SJ knitting mode

Shape Attributes

Rules

Knitting Mode

Single Jersey

Step width of widening

1 needle (stitch) per knitting row

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

1 - 3 needles (stitches)

Step height when narrowing

As desired

Narrowing Width

As desired

Fading-out Width

As desired

Knitting mode for fading-out

Front Stitch with Transfer (default)

    9
    Click the Guia-fios button under Pré-visualização in the Início ribbon.
  1. The New Pattern xx document window is opened as view and the Guia-fios ribbon appears.

Yarn Carrier Color as Background

Switching the view between the different pattern colors

: Only with certain pattern colors available.

Show Knitting-out

inactive

Knitting-out of the yarn carriers is not displayed in the graphic.

Active

Knitting-out of the yarn carriers is displayed in the graphic.

: The knitting-out is displayed as marking with specified direction at the corresponding side of the area.

    10
    Open the tool window with the Guia-fios button -> Exibir guia-fios -> Fios e guia-fios disponíveis tab

    11
    Select the desired yarn carrier.
    12
    Make the following changes:
    13
    Apply the changes:
    Editar group -> Aceitar
    - or -
    Editar group -> Aplicar e fechar

Sincronizar

Aplica as alterações a partir da amostra de desenho para a vista de guia-fios aberta e sincroniza ambas vistas para o atual estado de amostra.

Aceitar

Aplica as alterações para guia-fios à amostra de desenho. Outras alterações (por exemplo, o parâmetro de cor) tem efeito imediatamente.

Aplicar e fechar

Aplica as alterações para guia-fios à amostra de desenho e fecha a vista. Outras alterações (por exemplo, o parâmetro de cor) tem efeito imediatamente.

Cancelar

Rejeita as alterações e fecha a vista de guia-fios.

Close with Cancelar if you only opened the Yarn Carrier view for control.

Explanation of the Guia-fios tool window:

1

Fios e guia-fios disponíveis Tab

5

Returning yarn carriers to the magazine according to their position at the left or right side of the yarn carrier rails.

: Yarn carriers of the pattern only - excepting the yarn carrier colors which are firmly allocated to a certain rail.

Allocating the yarn carriers for technique colors to the yarn carrier rails according to the standard preallocation.

Returning yarn carriers from the yarn carrier rails to the magazine as 'undefined'.

: Yarn carrier of the pattern only.

Allocating the yarn carriers from the magazine to the yarn carrier rails.

Exibir cores técnicas não utilizadas

In the view of the yarn carrier rails, only the technique colors used in the pattern are displayed.

In the view of the yarn carrier rails, the technique colors not used in the pattern are displayed as well.

6

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the left side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the left side when allocating.

7

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the right side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the right side when allocating.

8

Display of the yarn carriers for yarn and magazine colors undefined.

: The yarn carriers have no allocation to a rail nor to a side (left/right)

9 / 10

Release for allocation of the rail with a yarn carrier left / right

No release for allocation of the rail with a yarn carrier left / right

10 / 11

Graphic presentation of the yarn carrier rails with the used yarn carrier types on the left / right side and specification of the corresponding colors.
This results in the yarn carrier home position left / right.

Input panel for the selected yarn carrier

13

Set as Used

Yarn carrier position is free for allocation

Yarn carrier position is not free for allocation

: For example when inserting Sintral functions where yarn carriers are used.

Posição

Specification of the yarn carrier position of a yarn carrier color

Tipo

Descrição

Comment on a yarn carrier

: Is entered in Sintral in the table of the yarn carriers.

14

Cor de amostra (após expandir)

Display of the pattern color of the selected yarn carrier

Cor técnica

Display of the technique color of a selected technical yarn carrier

Clamping Depth

Needle sinking of clamping and cutting needle
Command: NCC=n (n= -10 to 10)

15

Entrar tecendo antes de começo

Selected yarn carrier is not knit-in in the Knitting-in before start function.

Selected yarn carrier is knit-in in the Knitting-in before start function.

Entrar tecendo no lado oposto

A yarn carrier remains on the corresponding side based on its home position.

A yarn carrier is knitted before the start to the opposite side of its home position.

: Use:
With MC with single-sided clamping / cutting.

Parar em:

  • Canto de forma
  • SEN Edge

16

Valor de ação de guia-fios [mm]

Á esquerda (Ua)

Engaging width for the left side

Á direita (Ub)

Engaging width for the right side

Largura de caixa [mm]

Specification depending on the yarn carrier type specified under Tipo

: No entry possible!

17

Fixação da ourela

Selection of the knitting mode for the border fixation (module)

Distância mínima

Distance for the border fixation in rows

18

Flutuar transição de Fully Fashion

At the end a yarn carrier is moved to the home position according to the setting in the Yarn Field Allocation.

At the end a yarn carrier is moved to its home position without knitting.

: Use:
For technical fabrics with weft yarn.

Para o canto de forma depois de EAY/S0Y (YG:nF)

The yarn carrier will not be positioned at the counters #L and #R.

The yarn carrier will be positioned at the counters #L and #R and follows the shape.

Excetuar de 'Abrir pinça' (Y-RALL( n ))

Selected yarn carrier is controlled by the Y-RALL function.

Selected yarn carrier will be excluded from the Y-RALL function and can be defined differently by the value (rows) at Color Parameters under .

: By default, the clamp will be opened by the Y-RALL function for all yarn carriers after about 25 rows.

Additional tabs:

2

Áreas de tricotagem (SEN)

Working with several SEN areas:

  • Machines without comb
  • Machines with comb but without using it

3

Tandem (YLR)

Change of the yarn carrier home position with tandem machines

4

Agrupar alimentadores

Use when working with feed wheels

: For the use of the feed wheels, you have define them in the Configuração dialog box -> Atributos da máquina tab under Alimentadores electrónicos.

    14
    Open the Expanded Symbol View with the Símbolo button as preview if necessary to check the design pattern before further editing.
      - and / or -
    Open the expanded fabric view with the Tecido button

Expanded Symbol View

  1. The desired pattern is selected.
    1
    Click the Pré-visualização button in the ribbon under Símbolo.

: An additional document window appears with the expanded view of the design pattern.

    2
    Close the document window with in the Pattern name... tab.

Design Pattern

Expanded Symbol View

: The expanded symbol view opened via Símbolo button is write protected.

Vista do tecido expandida

  1. The desired pattern is selected.
    3
    Click the Pré-visualização button in the ribbon under Tecido.

: An additional document window appears with the fabric view of the design pattern.

    4
    Close the document window by in the pattern name... tab.

Fabric View

Options in the status bar

Aberto

Show Vista do tecido expandida with knitting rows and not knitting rows (transfer, cast-off, etc.)

Contraída

Show Vista do tecido expandida only with knitting rows

Calcular distorção

Calculate the stitch distortion in order to get a realistic fabric view.

Exibição em relação de densidade de malhas.

Show Vista do tecido expandida with the specified stitch ratio

Não resolver malhas caídas

Drop stitches are displayed.

Exibir fileiras de proteção

Display of the protection rows

Puxa o fio de separação

Display of the draw thread

Textura do fio

View of the selected yarn texture from the Yarn Explorer

Fundo

Set background color for Vista do tecido expandida

: The fabric view opened with the Tecido button is write protected.

    15
    Start Technical Processing:

: Tip
Open the yarn carrier path in the "Technical View" :
The yarn carrier for the protection thread 1 (#205) will be clamped after the start and at the end brought in again in the protection rows in the Fio flutuante, bloquear, ourela do tecido module from Configuration.

Technical processing of an individual pattern:

    1
    Select the desired pattern for the technical processing in the Amostra ribbon under Início .
    - or –
    Open the desired pattern in the Amostra tool window double clicking.
    2
    Start the technical processing for the selected pattern by the button in the Início ribbon under Técnica.

: The result is shown in the pattern name... document window by an unprotected symbol view.

    3
    Close the document windows with in the Pattern name... tab of the document windows.
    : The data will not get lost and can at any time be shown and edited in a document window by the Símbolo button.
  1. The success of technical processing is shown by in the Amostra tool window behind the pattern name.

Technical Processing successfully performed

Outdated technical processing

: Changes in the design pattern discard the already performed technique processing.

Presentation of the views

Design Pattern

Processed Symbol View

(not write-protected)

Before Technical Processing:
Only knitting rows will be displayed in the design pattern.

After Technical Processing:
The knitting rows and the transfer rows will be displayed in the symbol view.
The data contained in the modules such as racking specifications, fabric take-down, carriage direction, etc. will be entered in the corresponding control columns.

: The pattern will completely be processed and checked by all technical rules.

: You can open a write-protected display of stitches (Fabric View) after the technical processing by the Tecido button.

: Changes will be overwritten by re-processing .

Multiple Selection of Patterns for Technical Processing:

You can select several patterns for technical processing to start it more quickly.

  1. Several patterns are created.
    1
    Click the Processamento button in the Casa ribbon under Processamento múltiplo .
  1. The Processamento técnico dialog box appears.
    2. 2
    Select the desired setting.

: You cannot start the technical processing for patterns greyed-out as data may be missing.

    3
    Close the dialog box with OK.
  1. The technical processing is done automatically and shown by in the Amostra tool window.
    2. 4
    Close the document windows by in the pattern name... tab of the document windows.
    : The data will not get lost and can at any time be shown and edited in a document window by the Símbolo button.
  1. Successful processing is shown in the Amostra tool window by behind the pattern name.
    16
    Generate Sintral.

Generate knitting program for a single pattern:

  1. Pattern is successfully processed.
    1
    Select the desired pattern in order to create it for the knitting program in the Início ribbon under Amostra .
    - or –
    Open the desired pattern in the Amostra tool window double clicking.
    2
    Start the technical processing by the button in the Sintral ribbon.
  1. The *.sin; *.jac and *.setx files will be generated for the current patten.

The elements of the program are displayed by the following buttons:

Sintral

Displaying the Sintral file

Jacquards

Displaying the packed Jacquard file

Setup MC

Displaying the Setup file

Generate knitting programs for several patterns:

: You can select several patterns for the Criar programa de tricotagem procedure to start it more quickly.

  1. Several patterns or an order with several patterns is created and the technical processing is carried out for all patterns.
    1
    Click the Criar programa de tricotagem button in the Início ribbon under Processamento múltiplo .
  1. The Criar programa de tricotagem tool window is displayed.
    2. 2
    Select the desired setting.
  2. You cannot start the Criar programa de tricotagem processing for patterns greyed-out as data may be missing.
    3. 3
    Close the dialog box with OK.
  1. The processing step is automatically done for the selection and the patterns are marked with symbol in the Amostra tool window.
    17
    Start Sintral Check

Sintral Check for a single pattern:

  1. The Criar programa de tricotagem processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.
    1
    Select the desired pattern for the Sintral Check in the Início ribbon under Amostra .
    - or –
    Open the desired pattern in the Amostra tool window double clicking.
    2
    Start the Sintral Check with the Controle Sintral button.
  1. The Controle Sintral dialog box appears.
    2. 3
    Start the simulation by the START button.
  1. The Simulation OK message appears
    4
    Close the dialog box with X.
    5
    Continue with the next pattern.

Run the Sintral Check for several patterns (multiple selection):

You can select several patterns for the processing step

Sintral Check, to start it more quickly.

  1. Several patterns or an order with several patterns is created and processing steps are carried out until Criar programa de tricotagem.
    1
    Click the Controle Sintral... button in the Início ribbon under Processamento múltiplo .
  1. The Controle Sintral tool window is displayed.
    2. 2
    Select the desired setting.

: You cannot start the Sintral Check for greyed-out patterns as data may be missing.

    3
    Close the dialog box with OK.
  1. The processing step is automatically done for the selection and the patterns are marked with symbol in the Amostra tool window.
    18
    Extract knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-1.zip.

Extract an individual pattern (*.zip) and save it:

  1. The Criar programa de tricotagem processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.
  2. Sintral Check was done.
    1
    Select the desired pattern in order to extract it in the Início ribbon under Amostra .
    - or –
    Open the desired pattern in the Amostra tool window double clicking.
    2
    Click the Extrair button in the Início ribbon under Sintral.
  1. The Salvar como dialog box will appear.
    2. 3
    Change file name if desired.
    4
    Select the desired path for the *.zip file.
  • Local Drive
  • USB Memory Stick
  • Network Drive
    5
    Close the dialog box with the Salvar button.
  1. After saving it, the zip file can be loaded and knitted on the machine.

Multiple selection of patterns or orders to create knitting programs:

You can select several patterns or orders for the processing step Extrair..., to start it more quickly.

  1. Several patterns are created.
  2. The processing steps up to Criar programa de tricotagem, even up to Controle Sintral... are done.
    1
    Click the Extrair button in the Início ribbon under Processamento múltiplo .
  1. The Search Folder dialog box will be opened.
    2. 2
    Select an existing folder.
    - or –
    Create a new folder under the desired path by the Create folder button.
    3
    Select the folder.
    4
    Close the dialog box with OK.
  2. Note appears: Following files successfully extracted:
  3. You cannot start the Extrair... processing step for greyed-out patterns / orders as data may be missing.
    4. 5
    Close the dialog box with OK.
  1. The extracted knitting programs are available in the folder and can be loaded on the machine.
    19
    Load knitting program into the machine.

: The extracted file CMS530.Pattern-1.zip can be loaded onto the machine with an USB stick or via Ethernet.
