Step by Step to Pattern-2

A pattern project with one pattern and the desired settings is created.

1: Select an existing Aran pattern element in Knit Explorer to draw.
- or -
Generate a private Aran diamond as a pattern element.

Selection of the needed Aran structure modules via:

Knit Explorer
Acesso rápido
: The desired folder has to be added in Knit Explorer to the folder Acesso rápido.

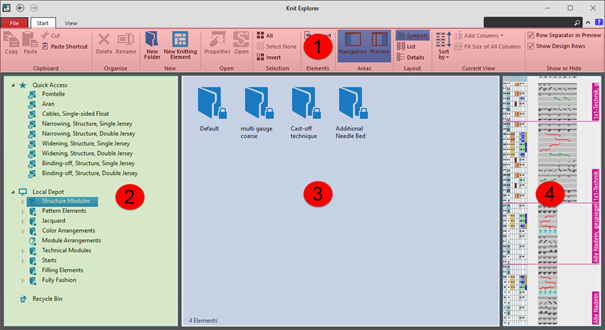

Knit Explorer

Managing all STOLL knitting elements

Pattern Elements
All types of knitting elements
STOLL knitting elements are write protected

Managing self created pattern elements and knitting elements


1	Ribbon	Arquivo	Information about the Knit Explorer Exiting the Knit Explorer
		Início	Functions for working in the Knit Explorer
		Vista	Possible settings for the Knit Explorer view
2	Painel de navegação	Acesso rápido	Managing linked directories for a faster access
		Depósito de elementos de tricotagem	Managing all knitting elements / modules STOLL database (write-protected) Private database (not write-protected)
3	Display of the content of a selected folder
4	Preview of a selected knitting element / module

Marking of directories

Directory without property
Directory without content
Write-protected directory

STOLL knitting elements are write protected

Linked directory

Managing the Knitting Elements and Different Types of Knitting Elements

Managing the knitting elements in the Knit Explorer

You will find the different types of knitting elements in the following directories:

This write-protected directories contains all the knitting elements from STOLL with their corresponding properties for each type of knitting element.
For a better structuring there are sub-directories assigned to the directories.

Types of knitting elements

Pattern Elements
Módulo de estrutura

All structures with / without transfer rows
Knitting element with connecting points

Color Arrangement
Module Arrangement
Módulo de Jacquard
Módulo técnico
Módulo técnico de desenho
Módulo de minguado
Módulo de minguado em vários passos
Módulo de aumento
Módulo de aumento em vários passos
Módulo de remate
Começo

2: Drawing of an Aran diamond with the drawing tools.

Select group Alterar, function Multi-Copy.
: For easier, faster handling of the drawing tools, open the pop-up window with CTRL + Space bar.

3: Filling of the interior of the Aran diamond with Pattern element / Structure module Ponto arroz with the following drawing tools and settings:

Varinha de condão with corresponding settings in the group Preencher :

Ourela livre
Ourela exacta
Sobrepor ourela

Preencher linha

: The result when filling the Aran diamond depends on whether a pattern element or a structure module is used.
The use of a pattern element is recommended.

4: Select the created Aran diamond.

5: Press the keys CTRL + C.

A temporary pattern element is assigned to the cursor.

6: Draw basic pattern with the temporary pattern element.

Create the selection as a temporary pattern element with CTRL + C.
: Pattern element is not saved and can be deleted from the cursor with the ESC button.
Context menu -> Seleção -> Criar parte de amostra...
: Pattern element will be saved as Partes de amostra and with the project.
Context menu -> Seleção -> Criar módulo de estrutura...
: Structure module will be saved as Módulos and with the project.

: Attention:
The behavior of the pattern element and module is different when working with shapes.
Recommendation:
Create the basic pattern only with pattern elements when working with shapes.

7: Import and position the existing shape Front with V-neck.

: If the basic pattern is too small for the positioning of the shape, then the size of the basic pattern will be automatically adjusted to the size of the shape.

: This adjustment always takes place with Malha à frente com transferência .

8: Open the shape with the Tabela de linhas button.

9: Make the desired changes in the basic shape and neckline:

: These changes are directly visible in the document window Amostra de desenho with positioned shape.

Narrowing:

Function width

10 needles (stitches)

Fade-out:

Fade-out width:

10 needles (stitches)

Fade-out content:

Shape edges in the basic shape: Knitting Element Canelado 1x1, Ocultar (v^....^v)
Shape edges neckline. Knitting Element Canelado 1x1, Ocultar (v^....^v)

	1	After cutting out the shape, the fading-out is inserted, where knitting elements are 'cut-into'.
	2	Cut into knitting elements are displayed.

	1	After cutting out the shape, the fading-out is inserted, where knitting elements are 'cut-into'.
	2	Cut into knitting elements are not displayed and are replaced by default with Front Stitch with Transfer.

Power Tension Setting (NPJ) at the shape edge:

+ :
Allocation of the desired stitch length indexes for stitch length at the front / rear
Width + Width :
Quantity of stitches for PTS (NPJ): 12 needles (stitches)

: Power Tension Setting (NPJ) is needed at the shape edge, to adjust the quality of the stitch lengths between the different structures Aran diamond and the 1x1 Rib at the shape edge.

In the document window Amostra de desenho switch the view to Graduação à frente e atrás na área de agulhas.

Shape generation in the current pattern project

Tab Cortes -> Context menu Criar novo corte em tamanho M...

Shape generation with Novo projecto corte de linhas

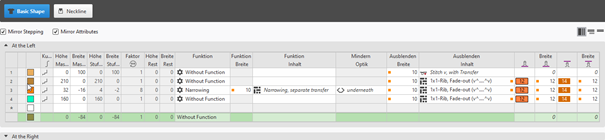

Basic Shape

: Ensure an even numbered height in total in the basic shape.

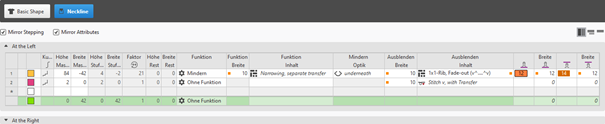

Neckline

Ensure an even numbered height in total in the element Decote.
V-neck starts by default with 2 needles.
A marking point with the allocation of the knitting element Start decote em V, cruzamento is automatically set at the V-neck start.

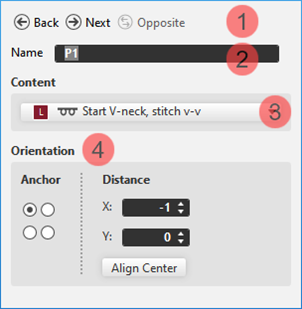

Displaying and changing marking point properties:

In the document window

Position the cursor on a marking point in the displayed graphic -> open the context menu with RMB and select -> Propriedades de ponto de marcação and make the desired entries in the tool window.
With the Propriedades de ponto de marcação button in the ribbon, open the tool window and make the desired entries.

1	Buttons for switching between the created marking points
2	Name of the selected marking point : Name changing possible.
3	Used knitting element as marking
4	Positioning of the knitting element at the marking point
	Âncora	Corresponds to the reference point in a knitting element : The reference point is at the bottom left by default.
	Distância	Offset in x direction and y direction for positioning the assigned knitting element regarding the marking point depending on the set anchor point
	Centralizar	Centers the assigned knitting element at the anchor point

Quantity of yarn carriers for shapes with neckline:

The row number after the start up to the beginning of the neck has to be aligned to the number of yarn carriers in use to achieve a correct knitting sequence.

Graphic presentation	Quantity of yarn carriers up to neckline	Height up to neckline
	One yarn carrier	Even-numbered
	Two yarn carriers in the same home position	odd
	Two yarn carriers in different home position	Even-numbered
: If the shape is not placed directly on the first knitting row after the start, these knitting rows outside shape will be removed.

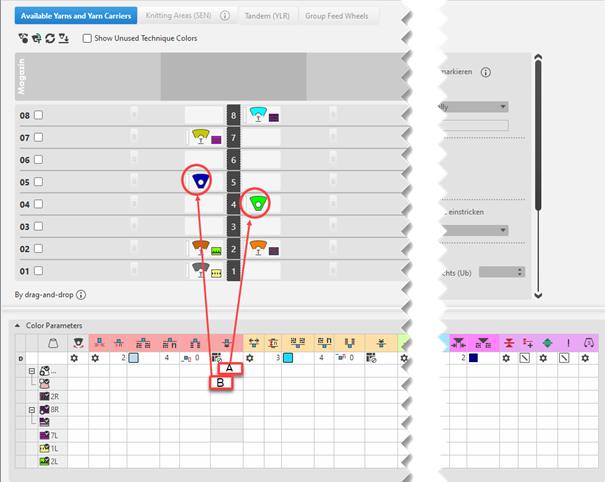

10: Working in the dialog box Guia-fios -> Exibir guia-fios

Fios e guia-fios disponíveis Tab

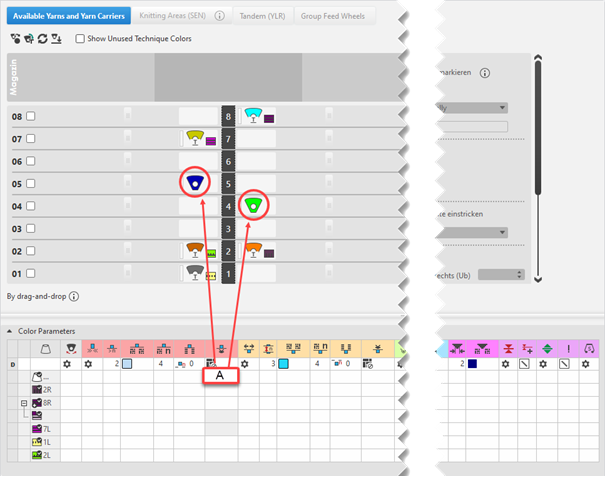

Combine Yarn Carriers
If desired, allocate the yarn carriers to the yarn carrier rails manually

Parâmetros de cor Table

Allocate the Fio flutuante, bloquear, ourela do tecido module as attribute to the yarn carrier of the left shoulder

Open the Yarn Carrier document window:

: The motive is created in the Amostra de desenho.

Click the Guia-fios button under Pré-visualização in the Início ribbon.
The New Pattern xx document window is opened as view and the Guia-fios ribbon appears.
Make the desired settings for the view of Yarn Carriers the status bar:

Cores de guia-fios como fundo
	Switching the view between the different pattern colors : Only with certain pattern colors available.

Exibir Sair tecendo
	inactive	Knitting-out of the yarn carriers is not displayed in the graphic.
	Active	Knitting-out of the yarn carriers is displayed in the graphic. : The knitting-out is displayed as marking with specified direction at the corresponding side of the area.

Table Parâmetros de cor

You can make the desired presettings for the colors used in the pattern (color areas) within the Parâmetros de cor table.

Open the Parâmetros de cor table:

With the Yarn Carriers button open the document window (Pattern name) in the ribbon.
Open the dialog box via Exibir guia-fios.

For each color in the pattern color tables used in the design pattern, a color area is created in the color parameter table.
This means that you can make presettings only once for this color area.
For pattern related, different changes of a color area sub-colors must be created. You have to draw them manually in the design pattern at the point to be changed.
Then, other specifications can be set in the color parameter table.
Make the desired presettings for the corresponding color:

Knitting-in and out
Change the starting direction of a color (yarn carrier)
Knot or binding at start or end of a color
Border Processing
etc.

Apply the modifications of the Color Parameter table to the pattern:
Editar group -> Aceitar
- or -
Editar group -> Aplicar e fechar

Functions of the Editar ribbon

	Sincronizar	Aplica as alterações a partir da amostra de desenho para a vista de guia-fios aberta e sincroniza ambas vistas para o atual estado de amostra.
	Aceitar	Aplica as alterações para guia-fios à amostra de desenho. Outras alterações (por exemplo, o parâmetro de cor) tem efeito imediatamente.
	Aplicar e fechar	Aplica as alterações para guia-fios à amostra de desenho e fecha a vista. Outras alterações (por exemplo, o parâmetro de cor) tem efeito imediatamente.
	Cancelar	Rejeita as alterações e fecha a vista de guia-fios. Close with Cancelar if you only opened the Yarn Carrier view for control.

Adjust the display of the columns in the Parâmetros de cor table:

Move the cursor to the first row of the table header.
Open the context menu with RMB.


Selecionar colunas	Adding or closing the desired columns in the selection list.
Exibir colunas utilizadas	Display of the columns used in the pattern
Exibir todas as colunas	Display all of the columns

Ocultar este grupo	Hide all columns allocated to a group (color coded)
Ocultar esta coluna	Hide the individual column at cursor position

Structure and column headers of the Parâmetros de cor table:

Group 1: General / Table header:

1st row:
All the symbols identifying the table columns
2nd row D
Default settings for the respective column
Settings from the STOLL file - cannot be modified at the moment

Default settings are applied from a STOLL file and cannot be modified at the moment.
These are automatically applied to all colors without specifications.


Group 1: General

1. Column		Entry D for the definition of the 2nd row of the table (D = Default settings for the table columns)
2. Column		Display for available sub-colors
	Cor	Display of all the colors used in a project Symbol and color: Not visible but used within the design pattern. Symbol and color + : Visible and used within the design pattern. : The symbols show the type of pattern color.
	Guia-fios tece uma cor de sistemas múltiplas	Specifications with multi-system knitting
	Guia-fios tece uma cor de vanizagem	Specifications with plating
	Bascular	Settings for the swivelling of intarsia yarn carriers or of autarkic yarn carriers
	Quantity of Rows for Knitting-out, SEN edge and clamping Define the distance of color fields from which on you want to knit-out, to move to SEN edge and to clamp.	Specify the maximum distance between the color fields of the yarn carrier. If this value is exceeded, one of the intended actions will take place: Knitting-out the yarn carrier Move the yarn carrier to the SEN border Clamp Yarn Carrier

Group 2: Knitting-in

	Direção de início	Specification of the knitting direction for the first row of a color (color area)
	Número de colunas sem Entrar tecendo	Quantity of columns (wales) without knitting-in module
	Módulo para entrar tecendo	Specification of the knitting mode for knitting-in : The module for knitting-in has two functions: Repeatable knitting mode for feeding-in the yarn carrier Knitting mode for knot or binding at the edge of the color area
	Largura de repetição para entrar tecendo	Presetting of the module width in total for the knitting mode of feeding-in the yarn carrier : The module width is repeatable.
	Deslocamento de fileiras para desprender	Column appears automatically if a module for knitting-in with casting-off is used
	Fileiras de offset para entrar tecendo	Knitting-in of the yarn carrier by x rows before the beginning of the color area Related to: Fileiras de amostra Default Setting Fileiras técnicas Em fileira extra
	Nó / Conexão no início	Presetting a module for knot / binding at start of a color area without knitting-in. : Entry in intarsia color areas, without assigned knitting-in module and thus no knitting-in is entered. Example: Two overlapping color areas without knitting-out and knitting-in.
	Offset de coluna para entrar tecendo com nó	Move the position of a knot (module) by x columns to the left or right. : This column is displayed automatically if a module is allocated in the Nó / Conexão no início column.

The direction of knitting-in of a yarn carrier is always carried out from last position.

Group 3: Knitting-out

	Direção de saída da tricotagem	Preset of the direction for knitting-out of the yarn carrier at the end of a color area
	Módulo para sair tecendo	Preset of the knitting mode (module) for knitting-out : The module for knitting-out has two functions: Example Repeatable knitting mode for feeding-out the yarn carrier Knitting mode for knot or binding at the edge of the color area
	Largura de repetição para sair tecendo	Presetting of the module width in total for the knitting mode of feeding-in the yarn carrier : The module width is repeatable
	Deslocamento de fileiras para desprender	Column appears automatically if a module for knitting-out with casting-off is used
	Offset de fileira para sair tecendo	Knitting-out of the yarn carrier by x rows after the end of the color area Related to: Fileiras de amostra Default Setting Fileiras técnicas Em fileira extra
	Nó / Conexão no final	Presetting a module for knot / binding at end of a color area without knitting-out. : Entry in intarsia color areas, without assigned knitting-out module and thus no knitting-out is entered. Example: Two overlapping color areas without knitting-out and knitting-in.
	Offset de coluna para sair tecendo com nó	Move the position of a knot (module) by x columns to the left or right. : This column is displayed automatically if a module is allocated in the Nó / Conexão no final column.

Group 4 : Intarsia Binding

	Conexão intarsia à esquerda	Presetting of a binding or no binding at the left border of the color area
	Conexão intarsia à direita	Presetting of a binding or no binding at the right border of the color area
	Direção da conexão intarsia à esquerda	Specification for inserting the Binding module at the left border of the color area depending on the carriage direction Conexão ao entrar tecendo Binding at the left at the beginning of a knitting row Conexão ao sair tecendo Binding at the left at the end of a knitting row
	Direção da conexão intarsia à direita	Specification for inserting the module Binding at the right border of the color are depending on the carriage direction Conexão ao entrar tecendo Binding at the right at the beginning of a knitting row Conexão ao sair tecendo Binding at the right at the end of a knitting row
	Módulo para conexão intarsia à esquerda	Presetting of the knitting mode for binding at the left border of the color area
	Módulo para conexão intarsia à direita	Presetting of the knitting mode for binding at the right border of the color area

Group 5: Border Processing

	Escalonamento permitido sem processamento de ourelas, lado esquerdo	Maximum number of needles when widening at the left border of the color area without automatic border processing. : No module is inserted.
	Escalonamento permitido sem processamento de ourelas, lado direito	Maximum number of needles when widening at the right border of the color area without automatic border processing. : No module is inserted.
	Módulo para processamento de ourelas à esquerda	Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area : With steppings greater than the setting in the Escalonamento permitido sem processamento de ourelas, lado esquerdo column.
	Módulo para processamento de ourelas à direita	Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area : For steppings which are larger than the settings in the Escalonamento permitido sem processamento de ourelas, lado direito column.

Group 6: Multi Gauge

	Escalonamento permitido das fileiras multi gauge	Allowed number of needles when widening at the left and right border of the color area without automatic border processing. : No module is inserted.
	Módulo para processamento de ourelas, transição mg grosso para mg fino	Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area and as transition : For steppings which are larger than the setting in the Escalonamento permitido das fileiras multi gauge column

Group 7: Miscellaneous

	Pinçar	Presetting for the yarn carrier, when it is to be clamped after knitting its color area.
	Pinçamento com retraso	Sem retardamento Pinçar após n fileiras de amostra: Pinçar depois de n fileiras técnicas:
	Abrir pinça	Abrir pinça depois de n fileiras: Automático
	Ourela SEN	Specifications for positioning the yarn carrier during the knitting SEN Edge Stop at the SEN edge W Posição de espera Parking (waiting position) at the fabric selvedge with an additional distance (needles). Sem ação Default Setting
	Sistema (independente da direção)	Selection of a knitting system for the selected color area 1º sistema da esquerda 2º sistema da esquerda 3º sistema da esquerda … : The yarn carrier is always knitted by the same system. The system specification changes depending on the carriage direction.
Group 8
Descrição		Nota para a utilização da entrada. Aqui você pode entrar um texto. Comment about the color area

Standard behavior by the yarn carrier allocation

On the left side (shoulder) an additional yarn carrier is required for the yarn color #1 in shapes with neckline (shape element outside shape). It will be knitted-in from left by default at the start of the shoulder.

: In this knitting situation it might happen that the yarn does not lay-in correctly at the fabric selvedge.

: A row is created in the Color Parameter table for the Yarn color #1 in which the desired attributes A can be allocated.
These attributes are valid for both yarn carriers 4R and 5L.

:
If there is the necessity to allocate other attributes to the yarn carrier of the left shoulder, there has to be another yarn color or a sub-color of the main color available in the table Parâmetros de cor.

Creating Sub-colors within the Different Tables of Pattern Colors

Possible in the following tables:

Cores de fio
Cores de depósito
Cores técnicas
Cores de guia-fios

: You can create sub-colors in each of these tables in the same way.

Creating Sub-colors:

: Be sure to create the sub-color for a main color used in the pattern only, as no additional yarn carrier should be added to the pattern.
With the help of the sub-color, you can allocate others attributes to a yarn carrier.

Position the cursor to the main color in use (e.g. yarn color #1) in the tool window Pattern Colors / Cores de fio.
The icon appears beside the symbol.
Click the icon.
The input panel for the sub-color appears.
Click on the icon.
A new empty sub-color will be created and selected.
If required:
Call up the Alterar valor da cor... context menu in order to change the color.
- or -
Delete the sub-color by Eliminar subcor.
If required, create additional sub-colors for the same main color.
- or –
Switch to another main color in order to add sub-colors.
Select sub-color und draw it into the area of Amostra de desenho for which different specifications are necessary.
The sub-color will be marked by the icon and appears in the color parameter table.
Allocate the Fio flutuante, bloquear, ourela do tecido module to the sub-color 1/1.

Modified Design Pattern	Yarn Carrier View


: A row is created in the Parâmetros de cor Table for the main color of the yarn color #1 (yarn carrier 4R) in which the desired attributes A can be allocated. A row is created in the Parâmetros de cor Table for the sub-color of the yarn color #1 (yarn carrier 5L) in which the desired attributes B can be allocated.

11: Start Technical Processing:

Show symbol view after technical processing.

12: Generate Sintral.

13: Start Sintral Check

14: Extract knitting program.

A program for the knitting machine will be created: CMS530.Pattern-2.zip.

15: Load knitting program into the machine.

: The extracted file CMS530W.Pattern-2.zip can be loaded onto the machine with an USB stick or via Ethernet.

Step by Step to Pattern-2

Working with Knit Explorer and Quick Access

Information about the Knit Explorer

Knit Explorer

Directories in the Knit Explorer

Marking of directories

Managing the Knitting Elements and Different Types of Knitting Elements

Managing the Knitting Elements and Different Types of Knitting Elements

Types of knitting elements

General Handling of the 'Multi-Copy' Drawing Tool

Generate a private Aran diamond

Fill the interior of the Aran diamond with the desired structure

Possibilities to create pattern elements and structure modules from a selection

Behavior of the knitting elements in the basic pattern when fading-out

Activate display of Power Tension Setting in the document window Design Pattern

Shape editing: Import of a shape and change of the shape attributes

Options for creating a lined shape based on the shape example

Shape generation via 'New Lined Shape Project'

Line table Basic Shape

Line Table Neckline

Displaying and changing marking point properties

Displaying and changing marking point properties:

Specifications for the yarn carrier for shapes with neck

Quantity of yarn carriers for shapes with neckline:

View in the Yarn Carrier document window

Open the Yarn Carrier document window:

Working in the Color Parameter table

Table Parâmetros de cor

Open the Parâmetros de cor table:

Functions of the Editar ribbon

Adjust the display of the columns in the Color Parameter table

Adjust the display of the columns in the Parâmetros de cor table:

Structure and column headers of the Color Parameter table

Structure and column headers of the Parâmetros de cor table:

Explanation group 2: Knitting-in

Explanation group 3: Knitting-out

Explanation group 4: Intarsia Binding

Explanation group 5: Border Processing

Explanation group 6: Multi Gauge

Explanation group 7 and 8: Miscellaneous and description

Allocation of attributes in the Color Parameter table

Options to add sub-colors

Creating Sub-colors within the Different Tables of Pattern Colors

Creating Sub-colors

Creating Sub-colors:

All steps of the pattern creation 'Pattern-2'

Mais informações:
