User Interface of CREATE PLUS

1

Quick Access Toolbar

Adjusting via the selection list

2

Ribbons

Ribbons containing the necessary groups for editing

  • Arquivo
  • Início
  • Vista
  • Seleção

: The ribbon can be minimized.

3

Properties of Drawing Tools

Adjusting the selected drawing tool

4

Tool Windows

Selection of the corresponding tool windows by in the ribbon

: You can move the tool windows by the Left Mouse Button and dock them to the edges of the main window or position them floating freely.

5

Document Window

Display and editing of pattern information

: You can move the tool windows by the Left Mouse Button and dock them in the center of the main window or position them floating freely.

6

Status Bar

  • Information about
    • Cursor position
    • Size when drawing
    • Color and needle action of the design pattern at the cursor position
    • Stitch length at the front / at the rear
  • Functions of controlling the view of the pattern
    • Dividir a vista verticalmente
    • Todas as cores da amostra à frente e atrás
    • Graduação à frente e atrás na área de agulhas
    • Cor de módulo
      Shows the module identifying color
    • Correção de grupos de graduações (NPGK)
      Display of the colors for the individual NPGK definitions
    • #1 Configurar vista...
      View  (#1-#5) possible
    • Símbolos de forma grandes
    • Exibir sombreados de estrutura
    • Exibir limites do módulo
    • Exibir variador
    • Exibir ocupação de agulhas
    • Exibição em relação de densidade de malhas.
    • Exibir comentários
    • Exibir grelha
    • : Opções
      Settings for the needle occupancy and the grid
  • Additional functions of controlling the view of the pattern after the technical processing
    • Show Cor de guia-fios
    • Exibir guia-fios
      Display of the yarn carrier paths
  • Functions of controlling the view of shapes
    • Exibir eixo de simetria
    • Exibir grelha de malhas
    • Exibir eixos de diagrama
    • Exibir dimensionamentos de controle
    • Ocultar áreas de tricotagem
    • Exibir áreas de tricotagem
    • Exibir áreas de tricotagem (cor de fio)
    • Exibir áreas de tricotagem (cor de CA)
    • Exibir os símbolos dos pontos de marcação
    • Deslocar o objecto selecionado (ponto de corte, marcação de ponto, área de tricotagem ou elemento de corte) com teclas de seta do teclado (ponto de corte só em formato de entrada Malhas)

Adjusting and Saving the User Interface as User Profile

You can position the tool windows and document windows of CREATE PLUS as desired and save it as user profile.

Profiles

  • Layout da janela de ferramentas
    : Default layout of windows provided by STOLL which is used for all new pattern projects.
    • Creating Private Tool Window Layout
      : Layout da janela predefinido from STOLL will be overwritten.
    • Resetting the private tool window layout to the STOLL tool window layout.
  • Layout do projecto
    Due to modifying the default window layout, these window positions will be saved as project layout in the *.spf file as Layout do projecto when closing the CREATE PLUS. They will be used within this pattern project only.
  • Additional Private Profiles
    Change position of windows and save them under a profile name.

Positioning tool windows and document windows, saving and loading them:

Display and selection of the profiles at the top right of the main window

Creating a single additional window layout only (project-related):

    1
    Position windows as desired.
  1. The display is automatically switched from Layout da janela predefinido to Layout do projecto.
    2. 2
    Close or exit the CREATE PLUS main window.
  1. The positioning of the windows is saved as Layout do projecto within the pattern project and will automatically be used when opening the pattern project.

: Keep an eye on the current layout setting when closing the CREATE PLUS!

Creating more additional window layouts:

    1
    Position windows as desired.
  1. The display is automatically switched from Layout da janela predefinido to Layout do projecto.
    2. 2
    Click the button next to the selection list.
  2. The Layout-Management dialog box appears.
    3. 3
    Enter a name under Novo layout:.
    4
    Click the Salvar button.
  3. All saved layouts are listed under Window Layout.
    4. 5
    Click the Fechar button.
  1. Profile is saved and available for further projects.

You can create several different user profiles for the CREATE PLUS following this procedure.

Selecting Saved Profiles:

  1. Layout do projecto is selected.
    1
    Open the selection list with the button.
    2
    Select the desired profile from the list.
  1. Selected windows layout is shown.

Deleting or Renaming Saved Profiles:

    1
    Open the Layout-Management dialog box with the button.
    2
    Select the desired profile from the list.
    3
    Open the context menu with RMB ->delete the profile by .
    - or -
    Change the profile name by Renomear

Create and save a private default window layout:

  1. Layout do projecto is selected.
    1
    Position windows as desired.
    2
    Select the Arquivo tab of the main window.
    3
    Click the Utilizar o atual layout de janela como layout de janela predefinido button under Opções / Geral at Layout.
  1. The arrangement of the windows when closing the program is saved as default window layout and the STOLL default of the tool window layout will be overwritten.
    2. 4
    Close the Options dialog box with OK.

Resetting the Private Default Layout to STOLL Default Layout:

    1
    Select the Arquivo tab of the main window.
    2
    Click the Restabelecer layout de informações button under Opções / Geral at Layout.
  1. The arrangement of the windows is set to the STOLL default window layout.
    2. 3
    Close the Options dialog box with OK.
Procedure with Window Layout

Define the Behavior of Document Windows:

  1. A pattern project is created.
    1
    Select the Arquivo tab of the main window.
    2
    Make the desired settings under Opções -> Geral -> Layout da janela de documento.
    3
    Close the Options dialog box with OK.
  1. The Options dialog box gets closed and the setting applied.

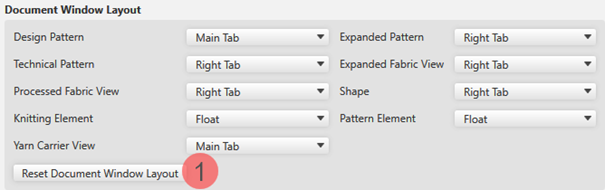

You can define the behavior of the listed document windows as follows:

Guia principal

The selected document window is added as an additional window (register) to the other windows that are set as main windows.

Guia direita

The selected document window is arranged as a new main window to the right of the open main windows.

Flutuante

The document window is opened floating and can be positioned as desired.

Restabelecer layout da janela de documento

The existing document window layout is restored to the STOLL document window layout.
