1: Open Localizar e substituir dialog box:

A training pattern is available.

2: If desired, select the cursor attributes for Find and Replace before opening the dialog box.
: Without selection, the dialog box will appear without entries.

3: Open the Localizar e substituir dialog box with the button.

The dialog box will appear accordingly with or without entries.

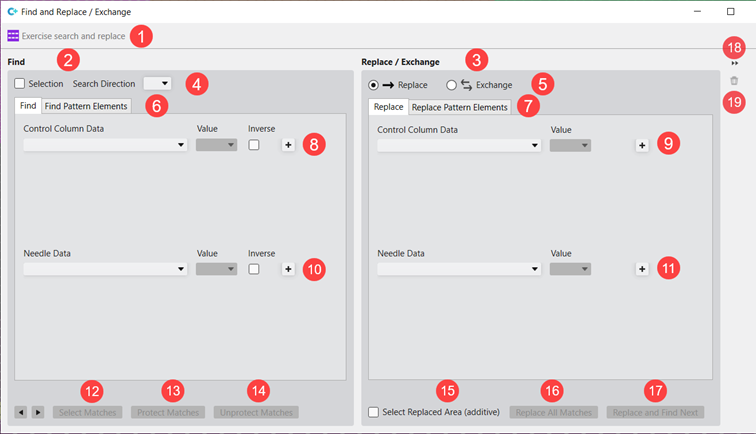

1	Pattern name, where the Find and Replace dialog box is active.
2	Specified search criteria Find in Control Columns Find in the needle data (design area)
3	Specified criteria for insert With Substituir With Trocar
4		Search in the entire design
		Search in a selection : Selection has to be generated.
	Search Direction		Preset of the search direction Para cima From top to bottom Para baixo From bottom to top
5	Selecting the desired action
			Substituir
			Trocar
6	Tabs of the Procurar area
	Procurar		Selection while searching for Data in the control columns : Only possible with permanently entered data (not default entries) Data in the pattern
	Procurar partes de amostra		Selection while searching for pattern elements
7	Tabs of the Substituir / Trocar area
	Substituir		Selection for replace or exchange Data in the control columns : Only possible with permanently entered data (not default entries) Data in the pattern
	Substituir partes de amostra		Selection for 'Replacing / Exchanging' pattern elements
8	Settings of the search criteria in the Procurar tab for searching in the Dados de colunas de controle
9	Settings of the criteria for insert in the Substituir and Trocar tab for replacing in the Dados de colunas de controle
10	Settings of the search criteria in the Procurar tab for searching in the Dados de agulha.
11	Settings of the criteria for insert in the Substituir and Trocar tab for replacing in the Dados de agulha.
12	Select All Matches : from one position to the next position, to select individual positions
13	Protect Matches
14	Unprotect Matches
15		Matches are replaced but not selected
		All matches are replaced and selected, to then add this selection to an existing selection (in addition)
16	Replace all matches in one step
17	Do not replace or replace matches position for position.
18		Opening of the Processamento de listas view
		Closing of the Processamento de listas view
19		Deleting of all criteria
