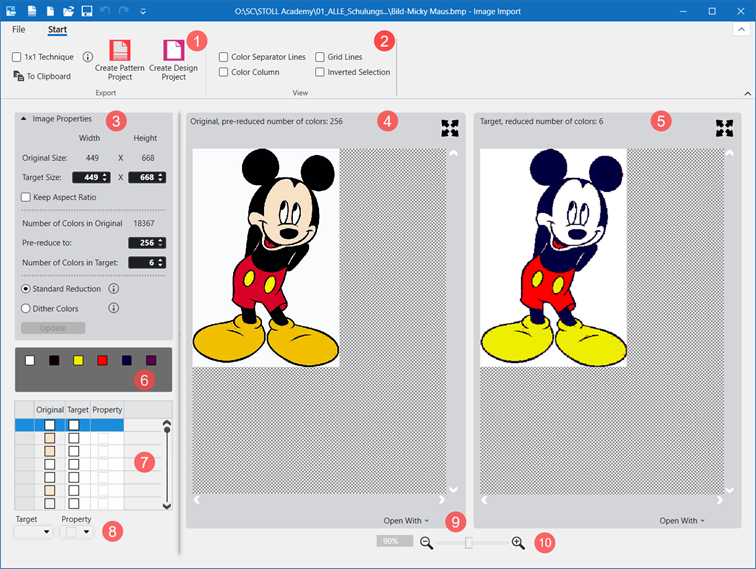

Image Import dialog box

Working with the Image Import dialog box

Options to open the dialog box

Importing an image:

    1
    Start the program double-clicking .
    2
    Click Importar imagem in the start page under Start.
    - or -
    In the started CREATE PLUS, in the File ribbon, Importar tab, select Importar imagem.
  1. The Image import dialog box is opened without display of an image.
    2. 3
    Select and open the path of the desired image in the File ribbon over Abrir.
    : The following formats can be read: bmp, jpg, jpeg, jpe, jfif, gif, tiff, tif, png
  2. The image reduced by the default settings is displayed in the dialog box under Target and the original one under Original.

Start ribbon

1

Group Exportar

Técnica 1x1

The image will be doubled in the width (1x1 technique).

: Attention:
Note the knitting technique of the design pattern!

  • Todas as agulhas
  • Técnica 1x1

This affects the insertion of the image!

Na área de transferência

The edited image is copied to the clipboard.

: In the CPS, the image can be inserted in the Pattern Elements tool window under Pattern Elements.

Criar projecto de amostra

A pattern project with a design pattern is opened from an edited image.

Criar projecto de desenho

A design project with a design pattern is opened from an edited image.

2

Group Vista

: The settings are displayed only in the Destino, número de cores reduzido: view.

Linhas de separação de cores

Display of the Destino, número de cores reduzido: view of colored separating lines for subdividing the different areas with different quantity of colors

Linhas de grelha

Display of a grid in the Destino, número de cores reduzido: view

Coluna de cor

Display of an additional column in the Destino, número de cores reduzido: view with the existing colors in each case.

Seleção invertida

Display of the selected color

: Select the color only in the Original or in the Destino.

3

Propriedades de imagem

Tamanho original:

Display of the original size of the image in width x height

Tamanho de destino:

Edit boxes for the size of the target in width x height

Manter a proporção

Size of the image freely changeable in width and height.

Size of the image changeable depending on the aspect ratio.

Número de cores no original

Original quantity of colors in the original image

Reduzir previamente a:

Entry of the quantity of colors to which the image is to be reduced when loading it.

: This, already reduced image will be displayed as Original.

Número de cores no destino:

Entry of the quantity of colors for reducing the Original to Destino

Redução padrão

Type of reduction of an image, e.g. for Jacquard

Misturar cores (dithering)

Type of reduction of an image with smooth color transitions, e.g. for photos

Atualizar

Apply changes of the settings

4

Display of the Original with already previously reduced number of colors

5

Display of the Destino image with the specified quantity of colors

6

  • Display of all colors in the target
  • For selecting all the original colors of the table that correspond to the target color

: Corresponds to the entry under Número de cores no destino: .

7

Table with the following columns

Original

Quantity of colors which were entered at Reduzir previamente a:.

Destino

Allocation of a target color to a original color

: Manual changing of the allocation via the selection menu at the corresponding target color.

Propriedade

 Fora da forma

Allocate 'outside shape' to one or more selected target colors.

: When importing an image, e.g. as shape template

 Utilizar cor

One or more selected target colors are imported as color in the CPS.

: When importing an image as Jacquard template

 Transparente

Allocate Transparente to one or more selected target colors.

: When importing an image, which is to be positioned on a specific background.

8

Destino

Selection of the target color for the allocation of a property

Propriedade

Selection of the desired property for the selected target color

9

Abrir com

Open the original or the target in an image editing app to make changes

10

Zoom

Zoom display
