Working with the main take-down (WMF) Tab

I. Open main take-down (WMF) tab and select / change the entry:

  1. Tasarım deseni is selected.
  2. The Ana merdane (WMF) control column is displayed.
    1
    Open the Setup verileri tool window.
    Başlat ribbon -> Araç penceresi -> Setup verileri selection menu
    - or -
    Parametreler ribbon group-> Setup verileri.
  1. The Setup verileri tool window appears.
    2. 2
    Select the Kumaş çekimi section.
    3
    Ana merdane (WMF) / Varsayılan tab
    - or -
    Select Kullanıcı.
    4
    Select the desired main take-down value in the column and enter it in the control column.
  1. The default setting in the control column will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

WMF

Hide the display of the columns wit the main take-down values for the Multiflex take-down

Show the display of the columns wit the main take-down values for the Multiflex take-down

WBF

Hide the display of the columns wit the take-down values for the belt take-down

Show the display of the columns wit the take-down values for the belt take-down

Show Pattern-related Values

Hide Pattern-related Values

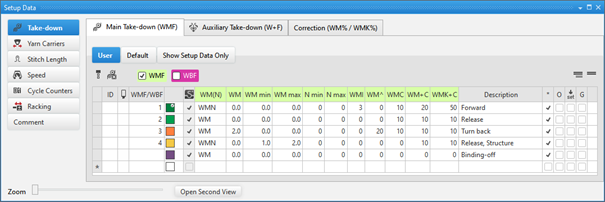

Column labels of the main take-down (WMF) tool window

Column

Display

ID / IDv / ID^

Running numbering and sorting of the entries

Selecting the main take-down value to enter it in the control column

WMF / WBF

Index for indirect allocation of the fabric take-down value for the main take-down Multiflex or belt take-down

Color

Display of colors to enter in the control columns

WM(N)

WM

Fabric take-down value when this is not changed in accordance with the quantity of needles.

WMN

Fabric take-down value when this is changed in accordance with the quantity of needles (fabric width).

WM

Fabric take-down value when this is not changed in accordance with the quantity of needles.

WM min

Fabric take-down value for minimum fabric width

WM max

Fabric take-down value for maximum fabric width

N min

Quantity of needles for minimum fabric width

N max

Quantity of needles for maximum fabric width

WMI

Fabric take-down impulse value

WM^

Specification of a number of degrees for the reverse rotation of the take-down

WMC

Value for the sensitivity of the stop motion control of the main take-down

WM+C

Specification of the system number for the fabric take-down control

WMK+C

Specification of the system number for comb monitoring

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Varsayılan table available.

Entry is defined as favorite, meaning the entry is available within the Kullanıcı table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Standard)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Varsayılan or Kullanıcı table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Varsayılan or Kullanıcı table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

II. Specify favorites:

  1. Tasarım deseni is selected.
    1
    Open the Setup verileri tool window.
    2
    Select the Kumaş çekimi section.
    3
    Select the Ana merdane (WMF) / Varsayılan tab.
    4
    Mark the desired entry of the table in the * column as .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the main take-down.

III. Add a new entry in the main take-down (WMF) tab:

New entries can only be added in the Kullanıcı tab.

  1. Tasarım deseni is selected.
    1
    Open the Setup verileri tool window.
    2
    Select the Kumaş çekimi section.
    3
    Select the Ana merdane (WMF) / Kullanıcı tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Satır ekle context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

The changes will be saved to the *.spf file when saving the project.

IV. Add entry of the Main take-down (WMF) tab to the pattern:

  1. Tasarım deseni is selected.
  2. The Ana merdane (WMF) control column is displayed.
    1
    Open the Setup verileri tool window.
    2
    Select the Kumaş çekimi section.
    3
    Select the Ana merdane (WMF) / Kullanıcı tab.
    4
    Select the desired main take-down value in the column.
    5
    Enter the selected main take-down value in the control column.

More optional control columns:
