Make settings for racking corrections in the knitting element
With STOLL knitting elements, the racking correction index (VCI) is used by default.
Enter settings for a racking correction in a local knitting element:
All the knitting elements drawn in the pattern which came out of the Knit Explorer are saved as local knitting elements in the Desen projesi.
- The settings for a racking correction referred to transfer rows are to be entered into a local knitting element in the
Tasarım deseni. - The
control column can be displayed in Tasarım deseni, but without entries, as no transfer rows are displayed.
- 1
- Open the existing project and save it with a new name via the Dosya / Farklı Kaydet menu.
- or -
Create new Desen projesi with one individual pattern and draw-in structure. - 2
- Open local knitting element with double-click.
- 3
- Display the control column in the Knitting Element editor.
- 4
- In the
Cable stitch 3x3 window, position the cursor on the control column and tap the RMB. - The context menu for the racking correction (VCI) appears.
- All the racking correction indices (VCI) used in the Cable stitch 3x3 knitting element are displayed and are marked with the
symbol.
Note:
In the knitting elements, the structures for knitting on all needles are managed and also for 1x1 technique. This means, that there is entered a racking correction value for all racking courses in the knitting element. - The entries marked as favorites in the Jakar kırma section / of the Varsayılantab in the Setup verileri tool window are displayed.
- 5
- Select the desired racking correction and enter it in the control column.

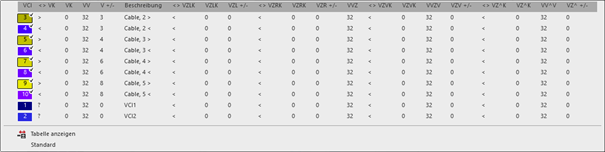

The racking correction index (VCI) shown in the context menu correspond to the table in the Setup verileri tool window under the Jakar kırma section of the Kullanıcı tab.
