Creating Plating Color and Draw it into the Design Pattern

Creating Plating Colors:

    1
    Open the dialog box with in the Desen renkleri tool window.

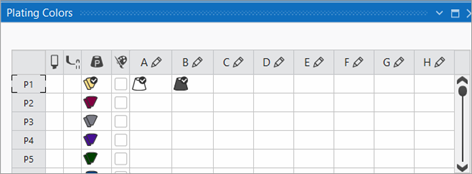

  1. The Plating Color tool window appears.
    2. 2

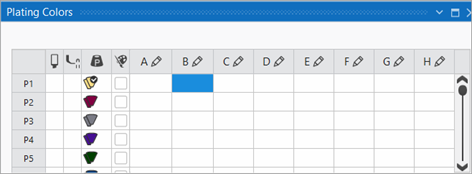

    Under P1 (Plating color 1) in the columns A to H allocate the desired colors for plating.
  2. In the Index color column under P1 the automatically generated plating color is displayed.

You can make upto 8 entries (columns A - H) for plating or for knitting with weft yarn carrier.

    3
    If necessary change the color in the Index color column via the menu.
    4
    Select the P1 entry in the column.
  1. The selected plating color can be drawn-in.
    2. 5
    Draw-in the plating color into the desired pattern rows of the design pattern.
    6
    Close the tool window.
