Step by Step to Pattern-2

A pattern project with one pattern and the desired settings is created.

1: Select an existing Yürütme pattern element in Knit Explorer to draw.
- or -
Generate a private Aran diamond as a pattern element.

Selection of the needed Yürütme structure modules via:

Knit Explorer
Hızlı erişim
: The desired folder has to be added in Knit Explorer to the folder Hızlı erişim.

Knit Explorer

Managing all STOLL knitting elements

Pattern Elements
All types of knitting elements
STOLL knitting elements are write protected

Managing self created pattern elements and knitting elements

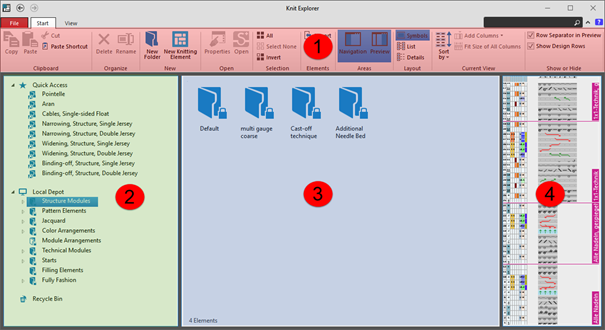

1	Ribbon	Dosya	Information about the Knit Explorer Exiting the Knit Explorer
		Başlat	Functions for working in the Knit Explorer
		Görünüm	Possible settings for the Knit Explorer view
2	Gezinti bölmesi	Hızlı erişim	Managing linked directories for a faster access
		Örme elemanı deposu	Managing all knitting elements / modules STOLL database (write-protected) Private database (not write-protected)
3	Display of the content of a selected folder
4	Preview of a selected knitting element / module

Marking of directories

Directory without property
Directory without content
Write-protected directory

STOLL knitting elements are write protected

Linked directory

Managing the Knitting Elements and Different Types of Knitting Elements

Managing the knitting elements in the Knit Explorer

You will find the different types of knitting elements in the following directories:

This write-protected directories contains all the knitting elements from STOLL with their corresponding properties for each type of knitting element.
For a better structuring there are sub-directories assigned to the directories.

Types of knitting elements

Desen Parçaları
Yapı modülü

All structures with / without transfer rows
Knitting element with connecting points

Color Arrangement
Module Arrangement
Jakar modülü
Teknik modül
Tasarım teknik modülü
Reglan modülü
Çok basamaklı reglan modülü
Artırma modülü
Çok basamaklı artıma modülü
Remayöz modülü
Başlangıç

2: Drawing of an Aran diamond with the drawing tools.

Select group Değiştir, function Çoklu kopya.
: For easier, faster handling of the drawing tools, open the pop-up window with CTRL + Space bar.

3: Filling of the interior of the Aran diamond with Pattern element / Structure module Yosun dikiş with the following drawing tools and settings:

Sihirbaz Değneği with corresponding settings in the group Doldur :

Kenar boş
Hassas Kenar
Kenarı ört

Çizgiyi doldur

: The result when filling the Aran diamond depends on whether a pattern element or a structure module is used.
The use of a pattern element is recommended.

4: Select the created Aran diamond.

5: Press the keys CTRL + C.

A temporary pattern element is assigned to the cursor.

6: Draw basic pattern with the temporary pattern element.

Create the selection as a temporary pattern element with CTRL + C.
: Pattern element is not saved and can be deleted from the cursor with the ESC button.
Context menu -> Seçimden oluştur -> Desen parçası
: Pattern element will be saved as Desen parçası and with the project.
Context menu -> Seçimden oluştur -> Yapı modülü
: Structure module will be saved as Modüller and with the project.

: Attention:
The behavior of the pattern element and module is different when working with shapes.
Recommendation:
Create the basic pattern only with pattern elements when working with shapes.

7: Import and position the existing shape Front with V-neck.

: If the basic pattern is too small for the positioning of the shape, then the size of the basic pattern will be automatically adjusted to the size of the shape.

: This adjustment always takes place with Aktarmalı ön ilmek .

8: Open the shape with the Çizgi tablosu button.

9: Make the desired changes in the basic shape and neckline:

: These changes are directly visible in the document window Tasarım deseni with positioned shape.

Narrowing:

Function width

10 needles (stitches)

Fade-out:

Fade-out width:

10 needles (stitches)

Fade-out content:

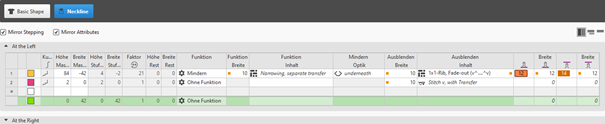

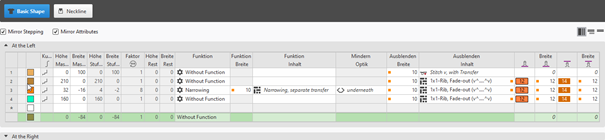

Shape edges in the basic shape: Knitting Element 1x1 fitil, kenar düzeltmesi (v^....^v)
Shape edges neckline. Knitting Element 1x1 fitil, kenar düzeltmesi (v^....^v)

	1	After cutting out the shape, the fading-out is inserted, where knitting elements are 'cut-into'.
	2	Cut into knitting elements are displayed.

	1	After cutting out the shape, the fading-out is inserted, where knitting elements are 'cut-into'.
	2	Cut into knitting elements are not displayed and are replaced by default with Front Stitch with Transfer.

Power Tension Setting (NPJ) at the shape edge:

+ :
Allocation of the desired stitch length indexes for stitch length at the front / rear
Width + Width :
Quantity of stitches for PTS (NPJ): 12 needles (stitches)

: Power Tension Setting (NPJ) is needed at the shape edge, to adjust the quality of the stitch lengths between the different structures Aran diamond and the 1x1 Rib at the shape edge.

In the document window Tasarım deseni switch the view to İğne alanında ön ve arka ilmek uzunluğu.

Shape generation in the current pattern project

Tab Kesimler -> Context menu M boyutunda yeni kesim oluştur...

Shape generation with Yeni çizgi kesimi projesi

Basic Shape

: Ensure an even numbered height in total in the basic shape.

Neckline

Ensure an even numbered height in total in the element Yaka açıklığı.
V-neck starts by default with 2 needles.
A marking point with the allocation of the knitting element V-yaka başlangıcı, Çapraz is automatically set at the V-neck start.

Displaying and changing marking point properties:

In the document window

Position the cursor on a marking point in the displayed graphic -> open the context menu with RMB and select -> İşaret noktası özellikleri and make the desired entries in the tool window.
With the İşaret noktası özellikleri button in the ribbon, open the tool window and make the desired entries.

1	Buttons for switching between the created marking points
2	Name of the selected marking point : Name changing possible.
3	Used knitting element as marking
4	Positioning of the knitting element at the marking point
	Demir atma	Corresponds to the reference point in a knitting element : The reference point is at the bottom left by default.
	İç boşluk	Offset in x direction and y direction for positioning the assigned knitting element regarding the marking point depending on the set anchor point
	Ortala	Centers the assigned knitting element at the anchor point

Quantity of yarn carriers for shapes with neckline:

The row number after the start up to the beginning of the neck has to be aligned to the number of yarn carriers in use to achieve a correct knitting sequence.

Graphic presentation	Quantity of yarn carriers up to neckline	Height up to neckline
	One yarn carrier	Even-numbered
	Two yarn carriers in the same home position	odd
	Two yarn carriers in different home position	Even-numbered
: If the shape is not placed directly on the first knitting row after the start, these knitting rows outside shape will be removed.

10: Working in the dialog box Mekikler -> Mekikleri göster

Mevcut iplikler ve mekikler Tab

Combine Yarn Carriers

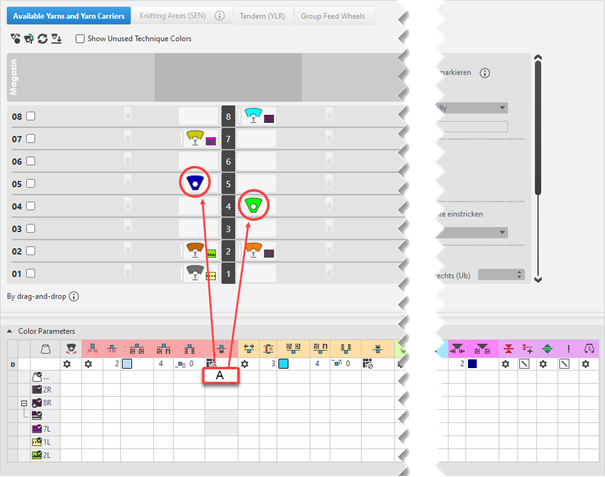

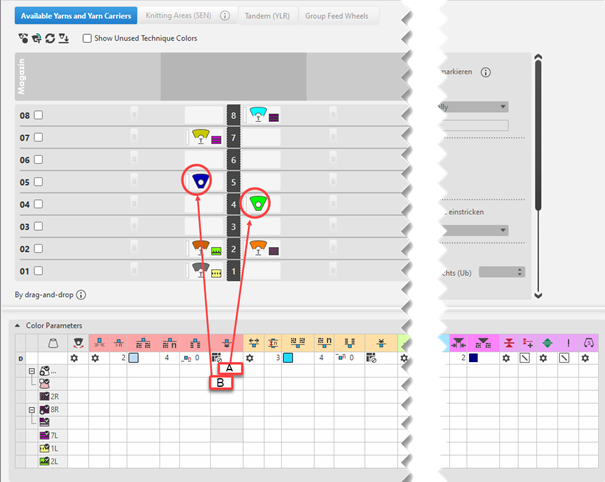

If desired, allocate the yarn carriers to the yarn carrier rails manually

Renk parametreleri Table

Allocate the Atla, kilitle, kumaş kenarı module as attribute to the yarn carrier of the left shoulder

Open the Yarn Carrier document window:

: The motive is created in the Tasarım deseni.

Click the Mekikler button under Önizleme in the Başlat ribbon.
The New Pattern xx document window is opened as view and the Mekikler ribbon appears.
Make the desired settings for the view of Yarn Carriers the status bar:

Arka plan olarak mekik renkleri
	Switching the view between the different pattern colors : Only with certain pattern colors available.

Örgü çıkışını göster
	inactive	Knitting-out of the yarn carriers is not displayed in the graphic.
	Active	Knitting-out of the yarn carriers is displayed in the graphic. : The knitting-out is displayed as marking with specified direction at the corresponding side of the area.

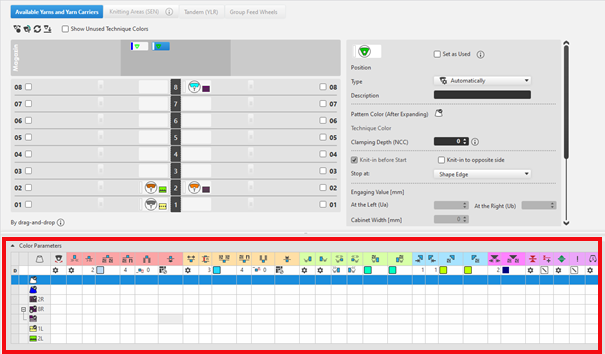

Table Renk parametreleri

You can make the desired presettings for the colors used in the pattern (color areas) within the Renk parametreleri table.

Open the Renk parametreleri table:

With the Mekikler button open the document window (Pattern name) in the ribbon.
Open the dialog box via Mekikleri göster.

For each color in the pattern color tables used in the design pattern, a color area is created in the color parameter table.
This means that you can make presettings only once for this color area.
For pattern related, different changes of a color area sub-colors must be created. You have to draw them manually in the design pattern at the point to be changed.
Then, other specifications can be set in the color parameter table.
Make the desired presettings for the corresponding color:

Knitting-in and out
Change the starting direction of a color (yarn carrier)
Knot or binding at start or end of a color
Border Processing
etc.

Apply the modifications of the Color Parameter table to the pattern:
Düzenle group -> Uygula
- or -
Düzenle group -> Uygula ve kapat

Functions of the Düzenle ribbon

	Senkronizasyon	Tasarım desenindeki değişiklikleri açık mekik görünümüne uygular ve her iki görünümü güncel desen durumuna senkronize eder.
	Uygula	Mekik değişikliklerini tasarım desenine alır. Diğer değişiklikler (örneğin renk parametreleri) hemen etkili olur.
	Uygula ve kapat	Mekik değişikliklerini tasarım desenine alır ve görünümü kapatır. Diğer değişiklikler (örneğin renk parametreleri) hemen etkili olur.
	İptal	Değişiklikleri siler ve mekik görünümünü kapatır. Close with İptal if you only opened the Yarn Carrier view for control.

Adjust the display of the columns in the Renk parametreleri table:

Move the cursor to the first row of the table header.
Open the context menu with RMB.


Sütun seç	Adding or closing the desired columns in the selection list.
Kullanılan sütunlarını göster	Display of the columns used in the pattern
Tüm sütunları göster	Display all of the columns

Bu grubu gizle	Hide all columns allocated to a group (color coded)
Bu sütunu gizle	Hide the individual column at cursor position

Structure and column headers of the Renk parametreleri table:

Group 1: General / Table header:

1st row:
All the symbols identifying the table columns
2nd row D
Default settings for the respective column
Settings from the STOLL file - cannot be modified at the moment

Default settings are applied from a STOLL file and cannot be modified at the moment.
These are automatically applied to all colors without specifications.


Group 1: General

1. Column		Entry D for the definition of the 2nd row of the table (D = Default settings for the table columns)
2. Column		Display for available sub-colors
	Renk	Display of all the colors used in a project Symbol and color: Not visible but used within the design pattern. Symbol and color + : Visible and used within the design pattern. : The symbols show the type of pattern color.
	Mekik çok sistem rengi örüyor.	Specifications with multi-system knitting
	Mekik vanize rengi örüyor	Specifications with plating
	Salınım	Settings for the swivelling of intarsia yarn carriers or of autarkic yarn carriers
	Quantity of Rows for Knitting-out, SEN edge and clamping Define the distance of color fields from which on you want to knit-out, to move to SEN edge and to clamp.	Specify the maximum distance between the color fields of the yarn carrier. If this value is exceeded, one of the intended actions will take place: Knitting-out the yarn carrier Move the yarn carrier to the SEN border Clamp Yarn Carrier

Group 2: Knitting-in

	Başlangıç yönü	Specification of the knitting direction for the first row of a color (color area)
	Örgüye giriş olmadan sütun sayısı	Quantity of columns (wales) without knitting-in module
	Örgüye giriş için modül	Specification of the knitting mode for knitting-in : The module for knitting-in has two functions: Repeatable knitting mode for feeding-in the yarn carrier Knitting mode for knot or binding at the edge of the color area
	Örgüye giriş için tekrar genişliği	Presetting of the module width in total for the knitting mode of feeding-in the yarn carrier : The module width is repeatable.
	İlmek kapama için sıra kaydırma	Column appears automatically if a module for knitting-in with casting-off is used
	Örgüye giriş için Sıra-Ofseti	Knitting-in of the yarn carrier by x rows before the beginning of the color area Related to: Desen sıraları Default Setting Teknik sırası Ekstra sırada
	Başlangıçta düğüm / bağlama	Presetting a module for knot / binding at start of a color area without knitting-in. : Entry in intarsia color areas, without assigned knitting-in module and thus no knitting-in is entered. Example: Two overlapping color areas without knitting-out and knitting-in.
	Örgüye düğümlü giriş için Sütun-Ofseti	Move the position of a knot (module) by x columns to the left or right. : This column is displayed automatically if a module is allocated in the Başlangıçta düğüm / bağlama column.

The direction of knitting-in of a yarn carrier is always carried out from last position.

Group 3: Knitting-out

	Örgüden çıkış yönü	Preset of the direction for knitting-out of the yarn carrier at the end of a color area
	Örgüden çıkış için modül	Preset of the knitting mode (module) for knitting-out : The module for knitting-out has two functions: Example Repeatable knitting mode for feeding-out the yarn carrier Knitting mode for knot or binding at the edge of the color area
	Örgüden çıkış için tekrar genişliği	Presetting of the module width in total for the knitting mode of feeding-in the yarn carrier : The module width is repeatable
	İlmek kapama için sıra kaydırma	Column appears automatically if a module for knitting-out with casting-off is used
	Örgüden çıkış için Sıra Ofseti	Knitting-out of the yarn carrier by x rows after the end of the color area Related to: Desen sıraları Default Setting Teknik sırası Ekstra sırada
	Sonda düğüm / bağlama	Presetting a module for knot / binding at end of a color area without knitting-out. : Entry in intarsia color areas, without assigned knitting-out module and thus no knitting-out is entered. Example: Two overlapping color areas without knitting-out and knitting-in.
	Düğümlü örgüden çıkış için Sütun-Ofseti	Move the position of a knot (module) by x columns to the left or right. : This column is displayed automatically if a module is allocated in the Sonda düğüm / bağlama column.

Group 4 : Intarsia Binding

	Sol İntersiya Bağlantısı	Presetting of a binding or no binding at the left border of the color area
	Sağ İntersiya Bağlantısı	Presetting of a binding or no binding at the right border of the color area
	Sol intersiya bağlantısının yönü	Specification for inserting the Binding module at the left border of the color area depending on the carriage direction Örgüye girişte bağla Binding at the left at the beginning of a knitting row Örgüden çıkışta bağla Binding at the left at the end of a knitting row
	Sağ intersiya bağlantısının yönü	Specification for inserting the module Binding at the right border of the color are depending on the carriage direction Örgüye girişte bağla Binding at the right at the beginning of a knitting row Örgüden çıkışta bağla Binding at the right at the end of a knitting row
	Sol intersiya bağlantısı için modül	Presetting of the knitting mode for binding at the left border of the color area
	Sağ intersiya bağlantısı için modül	Presetting of the knitting mode for binding at the right border of the color area

Group 5: Border Processing

	Kenar düzenlemesi olmadan izin verilen basamaklama, sol taraf	Maximum number of needles when widening at the left border of the color area without automatic border processing. : No module is inserted.
	Kenar düzenlemesi olmadan izin verilen basamaklama, sağ taraf	Maximum number of needles when widening at the right border of the color area without automatic border processing. : No module is inserted.
	Sol kenar düzenlemesi için modül	Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area : With steppings greater than the setting in the Kenar düzenlemesi olmadan izin verilen basamaklama, sol taraf column.
	Sağ kenar düzenlemesi için modül	Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area : For steppings which are larger than the settings in the Kenar düzenlemesi olmadan izin verilen basamaklama, sağ taraf column.

Group 6: Multi Gauge

	Kalın multi gauge sıralarının izin verilen basamaklaması	Allowed number of needles when widening at the left and right border of the color area without automatic border processing. : No module is inserted.
	Kenar düzenlemesi için modül, mg-kalından mg-inceye geçiş	Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area and as transition : For steppings which are larger than the setting in the Kalın multi gauge sıralarının izin verilen basamaklaması column

Group 7: Miscellaneous

	Tutma	Presetting for the yarn carrier, when it is to be clamped after knitting its color area.
	Gecikmeli tutma	Gecikmesiz n desen sırasından sonra tut: n teknik sırasından sonra tut:
	Tutucuyu aç	n sıra sonra tutucuyu aç: Otomatik
	SEN kenarı	Specifications for positioning the yarn carrier during the knitting SEN kenarı Stop at the SEN edge W Bekleme pozisyonu Parking (waiting position) at the fabric selvedge with an additional distance (needles). İşlem yok Default Setting
	Sistem (yönden bağımsız)	Selection of a knitting system for the selected color area Soldan 1. sistem Soldan 2. sistem Soldan 3. sistem … : The yarn carrier is always knitted by the same system. The system specification changes depending on the carriage direction.
Group 8
Açıklama		Girdinin kullanımı ile ilgili bilgi. Buraya bir metin girebilirsiniz. Comment about the color area

Standard behavior by the yarn carrier allocation

On the left side (shoulder) an additional yarn carrier is required for the yarn color #1 in shapes with neckline (shape element outside shape). It will be knitted-in from left by default at the start of the shoulder.

: In this knitting situation it might happen that the yarn does not lay-in correctly at the fabric selvedge.

: A row is created in the Color Parameter table for the Yarn color #1 in which the desired attributes A can be allocated.
These attributes are valid for both yarn carriers 4R and 5L.

:
If there is the necessity to allocate other attributes to the yarn carrier of the left shoulder, there has to be another yarn color or a sub-color of the main color available in the table Renk parametreleri.

Creating Sub-colors within the Different Tables of Pattern Colors

Possible in the following tables:

İplik renkleri
Depo renkleri
Teknik renkleri
Mekik renkleri

: You can create sub-colors in each of these tables in the same way.

Creating Sub-colors:

: Be sure to create the sub-color for a main color used in the pattern only, as no additional yarn carrier should be added to the pattern.
With the help of the sub-color, you can allocate others attributes to a yarn carrier.

Position the cursor to the main color in use (e.g. yarn color #1) in the tool window Desen renkleri / İplik renkleri.
The icon appears beside the symbol.
Click the icon.
The input panel for the sub-color appears.
Click on the icon.
A new empty sub-color will be created and selected.
If required:
Call up the Renk değerini değiştir... context menu in order to change the color.
- or -
Delete the sub-color by Alt rengi sil.
If required, create additional sub-colors for the same main color.
- or –
Switch to another main color in order to add sub-colors.
Select sub-color und draw it into the area of Tasarım deseni for which different specifications are necessary.
The sub-color will be marked by the icon and appears in the color parameter table.
Allocate the Atla, kilitle, kumaş kenarı module to the sub-color 1/1.

Modified Design Pattern	Yarn Carrier View


: A row is created in the Renk parametreleri Table for the main color of the yarn color #1 (yarn carrier 4R) in which the desired attributes A can be allocated. A row is created in the Renk parametreleri Table for the sub-color of the yarn color #1 (yarn carrier 5L) in which the desired attributes B can be allocated.

11: Start Technical Processing:

Show symbol view after technical processing.

12: Generate Sintral.

13: Start Sintral Check

14: Extract knitting program.

A program for the knitting machine will be created: CMS530.Pattern-2.zip.

15: Load knitting program into the machine.

: The extracted file CMS530W.Pattern-2.zip can be loaded onto the machine with an USB stick or via Ethernet.

Step by Step to Pattern-2

Working with Knit Explorer and Quick Access

Information about the Knit Explorer

Knit Explorer

Directories in the Knit Explorer

Marking of directories

Managing the Knitting Elements and Different Types of Knitting Elements

Managing the Knitting Elements and Different Types of Knitting Elements

Types of knitting elements

General Handling of the 'Multi-Copy' Drawing Tool

Generate a private Aran diamond

Fill the interior of the Aran diamond with the desired structure

Possibilities to create pattern elements and structure modules from a selection

Behavior of the knitting elements in the basic pattern when fading-out

Activate display of Power Tension Setting in the document window Design Pattern

Shape editing: Import of a shape and change of the shape attributes

Options for creating a lined shape based on the shape example

Shape generation via 'New Lined Shape Project'

Line table Basic Shape

Line Table Neckline

Displaying and changing marking point properties

Displaying and changing marking point properties:

Specifications for the yarn carrier for shapes with neck

Quantity of yarn carriers for shapes with neckline:

View in the Yarn Carrier document window

Open the Yarn Carrier document window:

Working in the Color Parameter table

Table Renk parametreleri

Open the Renk parametreleri table:

Functions of the Düzenle ribbon

Adjust the display of the columns in the Color Parameter table

Adjust the display of the columns in the Renk parametreleri table:

Structure and column headers of the Color Parameter table

Structure and column headers of the Renk parametreleri table:

Explanation group 2: Knitting-in

Explanation group 3: Knitting-out

Explanation group 4: Intarsia Binding

Explanation group 5: Border Processing

Explanation group 6: Multi Gauge

Explanation group 7 and 8: Miscellaneous and description

Allocation of attributes in the Color Parameter table

Options to add sub-colors

Creating Sub-colors within the Different Tables of Pattern Colors

Creating Sub-colors

Creating Sub-colors:

All steps of the pattern creation 'Pattern-2'

Diğer bilgiler
