Find and Replace Drawing Tool

Feature of the Find and Replace / Exchange Dialog Box

In Entire Pattern

Control Column Data (without default settings)
Needle Data (knitting elements, pattern colors, etc.)
Pattern Elements

Within a selection

Control Column Data (without default settings)
Needle Data (knitting elements, pattern colors, etc.)
Pattern Elements

Find and Protect

In Entire Pattern
Within a selection

Working with lists (execute several actions according to a specified order)

1: Open Bul ve değiştir dialog box:

A training pattern is available.

2: If desired, select the cursor attributes for Find and Replace before opening the dialog box.
: Without selection, the dialog box will appear without entries.

3: Open the Bul ve değiştir dialog box with the button.

The dialog box will appear accordingly with or without entries.

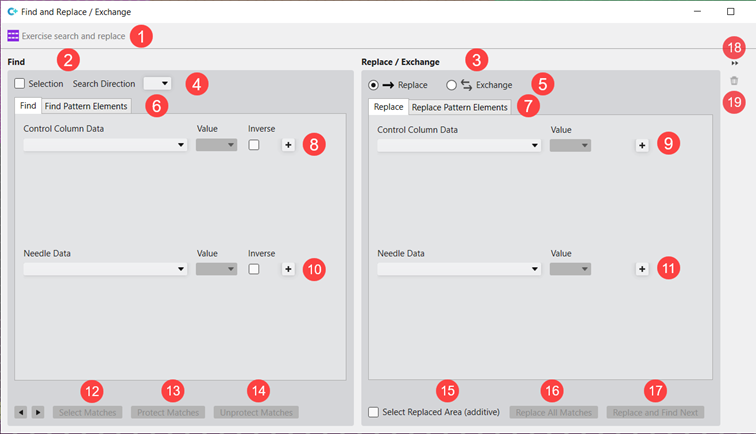

1	Pattern name, where the Find and Replace dialog box is active.
2	Specified search criteria Find in Control Columns Find in the needle data (design area)
3	Specified criteria for insert With Değiştir With Değiştir
4		Search in the entire design
		Search in a selection : Selection has to be generated.
	Search Direction		Preset of the search direction Yukarı doğru From top to bottom Aşağı doğru From bottom to top
5	Selecting the desired action
			Değiştir
			Değiştir
6	Tabs of the Ara area
	Ara		Selection while searching for Data in the control columns : Only possible with permanently entered data (not default entries) Data in the pattern
	Desen parçası ara		Selection while searching for pattern elements
7	Tabs of the Değiştir / Karşılıklı Değiştir area
	Değiştir		Selection for replace or exchange Data in the control columns : Only possible with permanently entered data (not default entries) Data in the pattern
	Desen parçaları değiştir		Selection for 'Replacing / Exchanging' pattern elements
8	Settings of the search criteria in the Ara tab for searching in the Kumanda sütunu verileri
9	Settings of the criteria for insert in the Değiştir and Değiştir tab for replacing in the Kumanda sütunu verileri
10	Settings of the search criteria in the Ara tab for searching in the İğne verileri.
11	Settings of the criteria for insert in the Değiştir and Değiştir tab for replacing in the İğne verileri.
12	Select All Matches : from one position to the next position, to select individual positions
13	Protect Matches
14	Unprotect Matches
15		Matches are replaced but not selected
		All matches are replaced and selected, to then add this selection to an existing selection (in addition)
16	Replace all matches in one step
17	Do not replace or replace matches position for position.
18		Opening of the Liste prosesi view
		Closing of the Liste prosesi view
19		Deleting of all criteria

Working in the 'Find and Replace' dialog box
