Step by Step to Pattern-5

A pattern project with one pattern and the desired settings is created.

1: Generate basic pattern with:

İplik renkleri

Basic Color
Color stripe

İğne hareketleri

Aktarmalı ön ilmek
Aktarmalı arka ilmek

Stoll pattern element

Knit Explorer -> Desen parçası -> Desen Parçaları, Tüm İğneler -> Desen Parçaları, Yürütmeli -> Yürütmeli DP 4


1	Color stripe 1	Yarn Color #3 Aktarmalı ön ilmek
2	Color stripe 2	Yarn Color #4 Links-Links: Change in rows from Aktarmalı ön ilmek and Aktarmalı arka ilmek Left + right selvedge: per 2x Aktarmalı ön ilmek
3	Color stripe 3	Yarn Color #6 Aktarmalı ön ilmek
4	Color area	Yarn Color #1 Yürütmeli DP 4 pattern element on reverse jersey Left + right selvedge: per 2x Aktarmalı ön ilmek

2: Display the Raport (RS) control column.

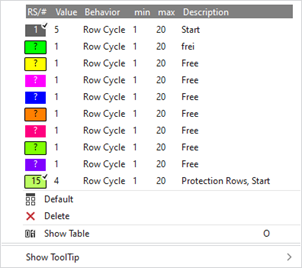

3: Place the cursor in the control column and with RMB -> open the context menu.

4: Select available cycle counter color+(?) directly in the context menu and draw into control column
- or -

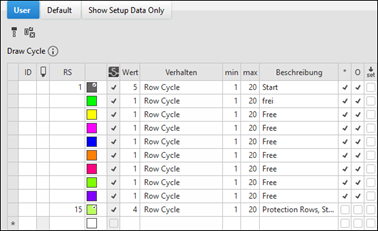

using Tabloyu göster open the Rapor Şalteri tool window in the context menu.

5: Select the Kullanıcı tab.

The tool window is displayed.

: In the table, the cycle counters in use (from knitting elements) and the ones to be used (available) are displayed before Teknik işlem.


ID	Running numbering and sorting of newly created entries
	Selecting the cycle counter to enter in the Raport (RS) control column
RS	Input and display of the index for the indirect (RSn =1-39) or direct (D) cycle counter allocation
Renk	Display of the color to enter in the Raport (RS) control column
Değer	Number of repetitions with Sıra raportu selection Specification of the validity with Anahtarlanabilir raport (fonksiyon) selection
Davranışlar	Sıra raportu	Definition of a repetition of knitting rows (simple cycle) Definition of a repetition with repetitions of knitting rows (nested cycle)
	Anahtarlanabilir raport (fonksiyon)	Definition of cycles for the length control with different sizes (set of sizes for the fabric length)
	: All other options under Davranışlar are definitions, that are used in the Başlangıç knitting elements.
min	Minimal repetition factor Definition of the range of validity for Anahtarlanabilir raport (fonksiyon)
maks	Minimal repetition factor Definition of the range of validity for Anahtarlanabilir raport (fonksiyon)
Açıklama	About the use of the cycle in the fabric

6: Select the desired available entry (color) from the Kullanıcı tab and enter in the control column.

7: In the RS column, indicates the desired value for RSn (n=1-39).

8: Define the desired number of repeats in the Değer column.

9: Make the following selection with Davranışlar:

Sıra raportu

Simple cycle
Nested cycle
: Entry in the control column with CTRL. + LMB

Simple cycles	Nested cycles

The procedure for multiple entries in control columns:

Raport (RS)
Mekik yönergeleri
Mekik duruşu

Add an entry to an existing entry:

Add
With the Ctrl key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL key.
Press LMB and hold it until the end position.
Release the left mouse button.

Add
With the Ctrl key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL key.
Click left mouse button.
Draw the cursor to the end position.
Click left mouse button again.

Delete Entry:

Delete
With the CTRL + ALT key

Set cursor to the start position.
Press LMB and hold it until the end position.
Release the left mouse button.

Delete
With the CTRL + ALT key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL + ALT keys.
Click left mouse button.
Draw the cursor to the end position.
Click left mouse button again.

Anahtarlanabilir raport (fonksiyon)

Length control with a set of sizes e.g. size S to L


RS	Value	Behavior	min	max	Description

RS6	x	Sıra raportu	1	20	Repetition of the Aran diamond (as desired)
RS16	1	Anahtarlanabilir raport (fonksiyon)	1	3	Knitting Rows for Size S
RS16	2	Anahtarlanabilir raport (fonksiyon)	2	3	Knitting Rows of Size S + Knitting Rows for Size M
RS16	3	Anahtarlanabilir raport (fonksiyon)	3	3	Knitting Rows of Size S + Knitting Rows Size M + Knitting Rows for Size L
: When working with Anahtarlanabilir raport (fonksiyon) it is necessary that a cycle counter e.g. RS16 is used. The cycle counter is freely selectable.

10: If necessary, open the Mekik görünümü via Mekikler in order to position the yarn carriers on the rails.

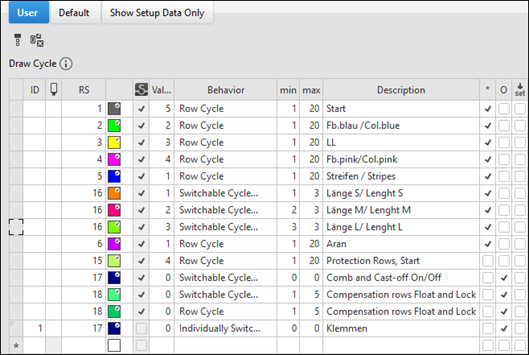

11: Start the Teknik işlem:

Show symbol view after Teknik işlem.


RS1 – RS6	Cycle counter for the length of the basic pattern
RS16	Cycle counter for the length control for the sizes S to L

RS15	Cycle for the extension of the protection rows in the knitting elements from the Başlangıçlar directory
RS17	Comb on / off RS17=0: Working with comb
RS18	Cycle for row compensation with the Başlamadan önce örgüye gir, Atla ve Kilitle (1 parça) technical modules

: The following cycle counters (RS) are added automatically to the Teknik işlem in the table because of the use of the corresponding knitting elements.

RS1	Cycle for the length control of the Start knitting element
RS13	Use of the Sintral function FF-Trans when knitting without comb and clamping Without Comb Without Clamping Knit Without Comb With Clamping : Marking of the color in the Rapor Şalteritable with the 'S' symbol
RS14	Cycle for lengthening when using special knitting elements from Koruma sıraları, düşürmeli
RS15	Cycle for the extension of the protection rows in the knitting elements from the Başlangıçlar directory
RS17	Comb on / off RS17=0: Working with comb RS17=1: Working without comb
RS18	Cycle for row compensation with the Başlamadan önce örgüye gir, Atla ve Kilitle (1 parça) or Başlamadan önce örgüye gir, Atla ve Kilitle (2 parça) technical modules
RS19	IF decision for knitting elements from the Başlangıçlar directory Without elastic thread (RS19=0) With elastic thread / Plated with elastic thread (RS19=1)
RS20	Cycle for lengthening the knitting with residual yarn until the belt take-down grasps the fabric
Verwendung von Zähler #
: Counters # are saved momentarily in the Stoll template and when calling up in the Rapor Şalteri control column are written into Sintral.

12: Generate Sintral.

13: Start the Sintral Kontrolü.

: In the Sintral Kontrolü tool window -> Sayaç -> Set cycle counter (RS) the cycle counters can be set to be checked and be displayed with the help of the graphic view.
