Step by Step to Pattern-6

    1
    A pattern project with one pattern and the desired settings is created.
    2
    Select an existing pattern element in the Knit Explorer -> Örme elemanı deposu -> Desen parçası -> Desen Parçaları, Tüm İğneler -> Desen Parçaları, Jakarlı to draw.
    -  or  -
    Draw a private motif in the basic pattern with İplik renkleri and save as pattern element.
    3
    Draw the desired 2 and 3 color Jacquard areas with the corresponding pattern element over the entire working width (Block Jacquard) into the basic pattern.
    4
    Generate a row selection over the desired area e.g. area (1) for Atlama jakar.
    5
    Positioning the cursor in the pattern area.
    6
    Call-up the Seçimden oluştur / Jakar oluştur... context menu.

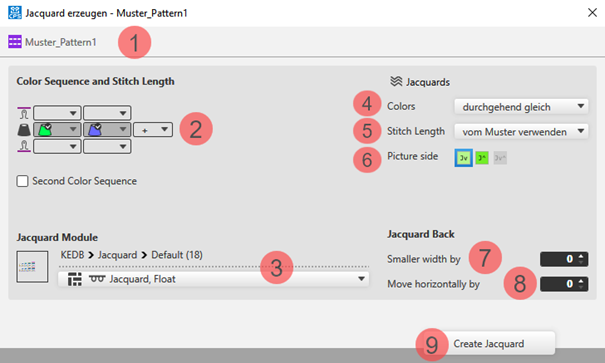

  1. The Jakar oluştur [Yeni desen] dialog box appears.

Description to the dialog box

1

Display of the active document window Tasarım deseni, for which the dialog box is valid.

2

Renk sıralaması ve ilmek uzunluğu

Display or edit box for the stitch length per color / rear system

: Depends on the selection under İlmek uzunluğu ((4)).

Display of the used colors in the selection in the color sequence from the left

Display or edit box for the stitch length per color / front system

: Depends on the selection under İlmek uzunluğu ((4)).

İkinci renk takip sırası

Default Setting
The color sequence is the same as in the first pattern row

Definition of the color sequence for the second pattern row is possible

: Input panel for the color sequence of the second pattern row

3

Jakar modülü

Displays the selected Jacquard module.

: Position the cursor in the display, to use the LMB to open the Knit Explorer.

Display of the path of the selected directory in the Knit Explorer

Selection list for selecting the desired Jacquard module in the specified directory

Jakarlar

4

Renkler

Selection list for the knitting sequence of the colors

  • boydan boya eşit
  • sıra başına minimum
  • sıra ve sütun başına minimum (iplik köprüleri)

5

İlmek uzunluğu

Selection list for the stitch length

  • desenden kullan
  • modülden kullan
  • Kullanıcı tanımlı
    Make presettings at and / or .

6

Resim tarafı

Selecting the desired face of picture of Jacquard

  • Jv: Resim önde
  • J^: Resim arkada
  • Jv^: Resim önde ve arkada
    : Not with all Jacquard modules available

Jakar arka tarafı

7

şu oranda daralt

Specification in case of Jacquard with yarn bridges, by how many needles the back side is to be narrower then the face of picture

8

şu oranda yatay kaydır

Specification by needles for shifting the Jacquard horizontally

9

Jakar oluştur

The presets made in the dialog box will be applied to the pattern.

Changing the default settings for Block Jacquard:

: A module for net pick-up and net ending are assigned by default to each area with Block Jacquard in the Desen projesi.

Possibilities for changing the module allocation:

  • In Yapılandırma -> Jacquard tab -> Block-Jacquard section
    : Changes will apply to all patterns of the Desen projesi .
  • Select Jakarlar in the ribbon.
    : Individual change regarding the desired Jacquard area
  • Select the context menu -> Jakarları aç...
    : Individual change regarding the desired Jacquard area
    7
    Make the desired presets in the Jakar oluştur [Yeni desen] dialog box.
    8
    Apply the presets to the pattern with the Jakar oluştur button.
    9
    Continue:
    Create the next row selection for a new Jacquard area.
    - or –
    Exit working in the dialog box by Kapat.
  1. The different Jacquards are displayed with different symbols in the pattern and are listed in the Jakarlar tool window for another edit.

Direct selection of a Jacquard module in the pattern:

  1. In the pattern there are Jacquard modules in use.
    1
    Position the cursor in a Jacquard area with an inserted Jacquard module.
    2
    Apply the Jacquard module with the F5 key.
    3
    Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.
  1. The selected Jacquard module is inserted in the pattern and in the Jakarlar table.

: Pay attention whether the exact same colors are in use in the area to be entered or not!

  • Used exactly the same colors -> The Jacquard areas will be grouped in the table.
  • Used different colors -> A new entry is added in the table.

Selection of a Jacquard module in the Jacquard table:

  1. In the pattern there are Jacquard modules in use.
  2. All the Jacquard modules in use are contained in the table.
    1
    In the Başlat ribbon under Parametreler, open the Jakarlar tool window with .
    2
    Select the desired Jacquard in the Jakarlar tool window in the column.
    : Pay attention to the Jacquard colors in use!
    3
    Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.
  1. The following message appears:
    Çizim yaptığınız alan, tablodaki jakarda yer almayan en az bir renk içeriyor. Alan, uygun bir jakara bağlanıyor. Eğer yoksa, yeni bir jakar oluşturuluyor.
    2. 4
    Confirm message with:
  • Tamam
    -> A new Jacquard with the missing color is created in the table.
  • İptal
    -> No Jacquard module will be inserted.

Used Jacquards in Pattern-6

1

Atlama jakar

1 row single jersey

1 row double jersey (for shaft)

2

Transfersiz atlamalı jakar

: Shaft

2 rows single jersey

3

Jakar, 1x1 file

1 row single jersey

1 row double jersey

2

Transfersiz atlamalı jakar

: Shaft

2 rows single jersey

4

Jakar, 1x2 file

1 row single jersey

1 row double jersey

2

Transfersiz atlamalı jakar

: Shaft

2 rows single jersey

5

Jakar, 1x3 file

1 row single jersey

1 row double jersey

2

Transfersiz atlamalı jakar

: Shaft

2 rows single jersey

6

Pike jakar

1 row single jersey

1 row double jersey

2

Transfersiz atlamalı jakar

2 rows single jersey

7

Tekçelik jakar

8

Any number of rows single jersey

: It is necessary to pay attention when drawing, that not too many colors (yarn carriers) are used depending on the selected machine.

    10
    To process inserted Jacquards, open the selection list in the Başlat ribbon at Araç penceresi and select Jakarlar.
    - or -
    Open the context menu in the Jacquard area in the pattern and click . und Jakarları aç... .
  1. The Jakarlar tool window is opened.
    2. 11
    Make the desired changes in the table.

Edit inserted Jacquards:

  1. In the pattern there are areas with inserted Jacquard modules.
    1
    In the Başlat ribbon under Parametreler, open the Jakarlar tool window with .
    - or -
    Open the context menu in the Jacquard area in the pattern and click . und Jakarları aç... .
  1. The Jakarlar tool window is opened.

1

Seçili tablo girdilerini desende seç

The Jacquards selected in the table are not displayed as selection in the pattern.
: Selection via the first column in the table.

The Jacquards selected in the table are displayed as selection in the pattern.

ID

Consecutive numbering of the Jacquard areas

2

For drawing a Jacquard module in the pattern

  • The Jacquard area has the same colors as the selected Jacquard:
    No other entry necessary in the table
  • The Jacquard area has different colors from the selected Jacquard:
    Another entry necessary in the table

Index Color: Use in the search area of a Color Arrangement with the marking 'Jq'

: If there exist several patterns in the pattern project, the color is marked according to the active document (pattern) with (Kullanılıyor).

3

Jakar modülü

: Jakarın arka tarafı için örme elemanı

  • Name of the Jacquard module with the 'L' identifier for local
  • Display of the assigned knitting element color under Özellikler

4

Renk sıralaması
: Arka taraftaki jakar renklerinin sıralaması

Display for the color sequence for the first and second pattern row if İkinci renk takip sırası is not active.

5

İkinci renk sıralaması
: Arka taraftaki her ikinci desen sırası için jakar renklerinin ikinci sıralaması

Display for the color sequence for the second pattern row if İkinci renk takip sırası is active.

6

İlmek uzunluğu

Specification for the stitch length which is to be used in the pattern:

  • desenden kullan
  • modülden kullan
  • Kullanıcı tanımlı

7

X ofseti
: Arka tarafın başlangıç noktasını yatay olarak kaydır

Value in needles for the horizontal offset of a Jacquard module

8

Arka tarafı daha dar
: Arka taraf resimli taraftan n iğne kadar daha dar

Input value in needles, regarding how many needles the Jacquard back side is to be narrower in relation to the picture side when inserted.

9

Resim tarafı
: Jakarın resimli tarafı ön veya arka iğne yatağında

  • Ön
  • arka
  • ön ve arka

10

Blok jakar file başlangıcı
: Blok jakar için file başlangıcı

Display of the knitting elements in use for the net pick-up with continuous Jacquards (Block Jacquard).

11

File başlangıcı rengi

Specification of the color (yarn carrier) which is used for the net pick-up knitting element.

12

File bitişi, blok jakar
: Blok jakar için file bitişi

Display of the knitting elements in use for the net ending with continuous Jacquards (Block Jacquard).

13

File bitişi rengi

Specification of the color (yarn carrier) which is used for the knitting element

14

İntarsiya jakar file başlangıcı
: İntarsiya jakar için file başlangıcı

Display of the knitting elements in use for the net pick-up with Intarsia with Jacquard back (placed Jacquard back).

15

Seçili jakarları sil

The selected Jacquard is deleted in all the pattern where it is in use.

16

Renk sıralaması ve ilmek uzunluğu

Display or edit box for the stitch length per color / system for rear needle bed

: Depends on the selection under İlmek uzunluğu ((6)).

Display of the color sequence from the left for the Jacquard area selected in the table

Display or edit box for the stitch length per color / system for front needle bed

: Depends on the selection under İlmek uzunluğu ((6)).

Yeni renk ekle…

İkinci renk takip sırası

Default Setting
The color sequence is the same as in the first pattern row

Definition of the color sequence for the second pattern row is possible.

:
The input panel for the color sequence for the second pattern row is displayed.

17

Güncel jakarlı desen

List of the patterns, where the Jacquard selected in the table is in use.

: Attention:
By default, the Jacquard areas with the same Jacquard module and the exact same colors are grouped.

Ungroup the grouped Jacquard areas.

: Necessary, if different settings must be made for the Jacquard areas.

The inserted Jacquard module will be removed from the area in the pattern or pattern element.

Result:
In the pattern area or in the pattern element, no Jacquard module is attached anymore.

    2
    Select the Jacquard to be changed in the table.
    3
    Activate Seçili tablo girdilerini desende seç if necessary.
  1. The Jacquard selected in the table will be displayed as a row selection in the design pattern.
    2. 4
    Make the desired changes in the tool window.
    5
    Close the tool window with X.
  1. The changes will be applied to the pattern.

Normally, in a Jacquard area, the number of colors found in the design pattern are knitted on the Jacquard back. In special cases it is necessary to knit in an additional thread (color = yarn carrier) on the Jacquard back.
An additional color is added to the Jacquard area for this purpose.

Addition of an additional color:

: The colors identified with knit only on the Jacquard back.

  1. In the pattern there are Jacquard modules in use.
  2. All the Jacquard modules in use are contained in the table.
  3. The Jakarlar tool window is open.
    1
    Select a Jacquard in the first column of the Jakarlar tool window.
  1. The color sequence is displayed in the tool window under Renk sıralaması ve ilmek uzunluğu.
    2. 2
    Select an additional color in the edit box at the end of the displayed color sequence using the selection list from the Desen renkleri tool window.
  1. The additional color is added to the color sequence and identified with .

Deleting an additional color marked with :

: The colors identified with knit only on the Jacquard back.

  1. In the pattern there are Jacquard modules in use.
  2. All the Jacquard modules in use are contained in the table.
  3. The Jakarlar tool window is open.
    3
    Select a Jacquard with additional colors in the first column of the Jakarlar tool window.
  1. The color sequence is displayed in the tool window under Renk sıralaması ve ilmek uzunluğu.
    2. 4
    Position the cursor on the additional color -> click the Rengi kaldır context menu.
  1. The additional color is removed from the color sequence.
    12
    To create a project-related lined shape, select the Kesimler tab in the tool window.
    13
    Open the context menu with RMB and select M boyutunda yeni kesim oluştur....

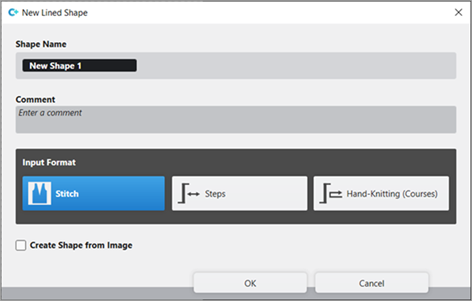

  1. The Yeni çizgi kesimi tool window appears.
    2. 14
    Make the desired entries:
    15
    Confirm with the OK key.

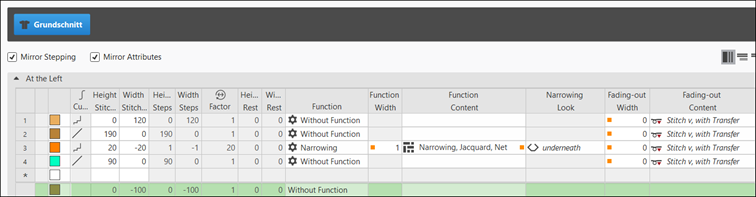

  1. The new lined shape (basic shape) is graphically displayed in the Kesimler tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu Dosya -> Seçenekler -> Çizgi kesimi -> Yeni çizgi kesimi seçenekleri

    16
    To create a lined shape based on the displayed rectangle in the ribbon Kesim düzenleme under Özellikler, click the Çizgi tablosu button.
    - or -
    Use the graphic displayed in the New shape xx [size x] document window.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

    17
    Open Çizgi tablosu in the ribbon.
  1. The table Çizgi kesimi with the values of the rectangular shape is displayed.
    2. 18
    Insert new shape lines in the table and enter the desired values for the basic shape.
  2. Standard attributes from configuration are assigned to those shape lines.

Example: Lined shape for 'Pattern-6'

Basic Shape: Front

Rules for creating a shape for the jacquard knitting mode with different backs:

Example Front:

Shape Attributes

Rules / possible settings

Knitting Mode:

Different color jacquards

Step width of widening

1 Stitch

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

Single-jersey Jacquards (float): 1-3 stitches

Double Jersey Jacquards (Stripe, Twill, Net): 1 Stitch

Step height when narrowing

As desired

Fading-out Width

As desired

Standard: 2 needles

: The motif colors at the border are automatically faded-out and knitted in 1x1.

Knitting mode for fading-out

Module Kenar düzeltme, Jakar, Altama, Torba

Binding-off width:

Single-jersey Jacquards: from 4 stitches

Double Jersey Jacquards:from 2 stitches

Binding-off methods

Single-jersey Jacquards:

  • Binding-off, Structure, Single Jersey
    • Binding-off, SJ, 01
    • Binding-off, SJ, 02

Double Jersey Jacquards:

  • Binding-off, Structure, Double Jersey
    • Binding-off, DJ, 01
    • Binding-off, DJ, 02
    19
    Allocate the desired attributes to the shape lines:

: To fade-out with patterns with Jacquards, a corresponding Kenar düzeltme, Jakar, Altama, Torba module is used.

    20
    Check shape lines, attributes and if desired make corrections.
    21
    In the New Shape xx [Size x] document window, select the desired shape line with the graphic shape presentation.
    22
    Position cursor on the selected shape line.
    23
    Select LMB -> Çizgi özellikleri context menu.
  1. The Çizgi özellikleri tool window is opened for the selected shape line.
    2. 24
    Make the following entries under the jakarlar için (atlama / file) section:
    25
    In the Kesimler tool window select the created shape with LMB.
    26
    Open the context menu -> Kesimi konumlandır -> select Pattern name.
  1. The shape is floating in the selected basic pattern.
    2. 27
    Position the shape in the document window with the button.
    28
    Start Technical Processing:
    29
    Generate Sintral.
    30
    Start the Sintral Kontrolü.
    31
    Genişlet the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-6.zip.
  2. Load knitting program into the machine.

: The extracted file "CMS530.Pattern-6.zip" can be loaded onto the machine with an USB stick or via Ethernet.
