Step by Step to 'Pattern-11'

  1. A pattern project with one pattern and the desired settings is created.
    1
    To create a project-related lined shape, select the Kesimler tab in the tool window.
    - or -
    Load an existing shape.
    2
    Open the context menu with RMB and select M boyutunda yeni kesim oluştur....
  1. The Yeni çizgi kesimi tool window is opened.
    3. 3
    Make the desired entries:
    4
    Confirm with the OK key.
  1. The new lined shape (basic shape) is graphically displayed in the Kesimler tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu Dosya -> Seçenekler -> Çizgi kesimi -> Yeni çizgi kesimi seçenekleri

    5
    Open the docked line table by LMB in the New shape xx [size x] document window.

    - or -
    Use the graphic displayed in the New shape xx [size x] document window.
  1. The table Çizgi kesimi with the values of the rectangular shape appears.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

    6
    Insert new shape lines in the table and enter the desired values for the basic shape.
  1. Standard attributes from configuration are assigned to those shape lines.
    2. 7
    Insert new shape lines in the table and enter the desired values for the Neckline shape element.
  2. Standard attributes from configuration are assigned to those shape lines.

Example: Lined shape for Pattern-11

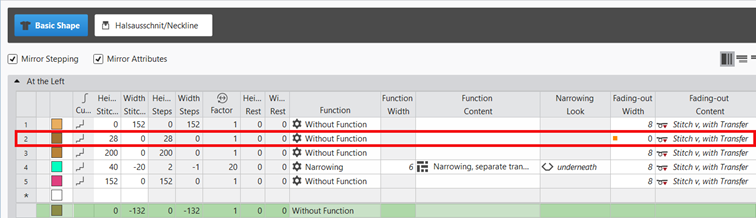

Basic Shape: Front

: Shape line 2 with its shape points is used for positioning the knitting ranges.

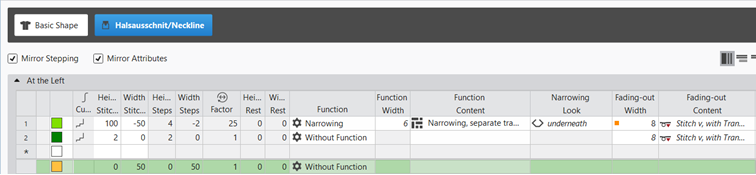

Neckline Shape Element (V-neck)

Rules for creating a shape for the knitting mode SJ:

Example Front:

Shape Attributes

Rules / possible settings

Knitting Mode:

Single Jersey

Step width of widening

1 needle (stitch) per knitting row

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

1 - 3 needles (stitches)

Step height when narrowing

As desired

Fading-out Width

As desired

Knitting mode for fading-out

Front Stitch with Transfer

Binding-off width:

Stepping > 3 stitches

Binding-off methods

Binding-off, Structure, Single Jersey

  • Binding-off, SJ, 01
  • Binding-off, SJ, 02
    8
    Allocate the desired attributes to the shape lines of the basic shape and of the neckline shape element.
    9
    Open the graphic of the basic shape in the xx document window.
    10
    Click the Örgü alanları button under Parametreler in the Kesim düzenleme ribbon.
  1. The Örgü alanları tool window appears.

1

Colors

Display color of the knitting range in the lined shape

2

Açıklama

Definition of a knitting range

3

 İplik rengi

Allocation of:
İplik rengi / Depo rengi / Mekik rengi: / Vanize renkleri / Çok sistem renkleri

4

Dolgu elemanı

Selection of a knitting element / needle action / structure / pattern element to fill the knitting range

5

Adet

Height of the knitting range by stitch rows

6

İlmekler

Display of the total height by stitches

7

cm

Display of the total height by cm

: Calculated by the stitch density in use from the İlmek yoğunluğu table

8

Assignment of a stitch density from the stitch density tool window

9

Renk Aranjmanı

Assignment of Color Arrangements

10

Assignment of a stitch length for the front needle bed

Assignation of a stitch length for the rear needle bed

Assignment of a take-down value

Assignment of a auxiliary take-down value

Assignment of a machine speed

11

List of the shapes (fabric pieces), where the selected knitting range is in use.

: Knitting ranges can be removed from the corresponding pattern by the button.

    11
    Create the desired knitting ranges in the Örgü alanları tool window.

Creating Knitting Ranges:

  1. Lined shape is created.
  2. Lined shape appears in the xx document window.
  3. The Örgü alanları tool window is open.
    1
    Make the desired definitions in the desired, undefined (free) table row:
  • Example 1:
    • Knitting Range DJ
    • By another yarn color, structure, stitch density and stitch lengths
  • Example 2:
    • Knitting range of color stripes
    • For color stripes of two yarn colors
      : You have to create several sub-rows per main row corresponding to the knitting ranges with different specifications.

Creating sub-rows for an existing main row:

    2
    Select the desired main row.
    3
    Open the context menu with RMB and select Alt satır ekle.
    4
    Make the desired specifications in the sub-row.
    5
    Create more sub-rows if necessary.
    12
    Add the created knitting ranges to a shape point of the basic shape.

Enter the created knitting ranges into the shape and position it:

  1. Shape is created as lined shape.
  2. The knitting ranges are available in the Örgü alanları tool window.
  3. Lined shape is opened in the xx document window.
    1
    Select the desired shape point by the LMB to which you want to assign the knitting range.
    2
    Open the context menu and select Örgü alanı ata.
  1. List of the knitting ranges appears to select one.
    Multiple selection is possible.
    2. 3
    Select the desired knitting range.
  2. The knitting range appears in the assigned color at the the shape line point of the lined shape.

Enable the view of the knitting ranges in the xx document window

Disable the view of the knitting ranges in the xx document window

Display of the knitting ranges in the xx document window by yarn colors

    4
    Position the inserted knitting range.

1

Selecting knitting ranges to replace the inserted knitting range.

2

Specify the İç boşluk in İlmekler in relation to the shape line point

3

Örgü alanını aşağı doğru yerleştir

Knitting range will be inserted above the shape line point

Knitting range will be inserted below the shape line point

If you insert several knitting ranges, they may overlap each other.
You can specify the order of overlapping of the knitting ranges and with it, the motif in the pattern.

  1. Several knitting ranges are inserted into the shape.
  2. These knitting ranges are overlapping.
    1
    Select the desired knitting range.
    2
    Select the desired function under Nesneleri düzenle in the Kesim düzenlemeShape Editing ribbon
    - or -
    In the xx document window, in the selected knitting area, select the Yeniden düzenlecontext menu with desired function.

Ön plana getir

The selected knitting area / shape element is positioned in the foreground (covering) in relation to all other knitting areas / shape elements.

Arka plana al

The selected knitting area / shape element is positioned in the background (overlapped) in relation to all other knitting areas / shape elements.

Düzlemi öne al

The selected knitting area / shape element is positioned one layer to the front.

Düzlemi arkaya al

The selected knitting area / shape element is positioned one layer to the back.

    13
    In the Kesimler tool window select the created shape with LMB.
    14
    Open the context menu -> Kesimi konumlandır -> select Pattern name.
  1. The shape is floating in the selected basic pattern.
    2. 15
    To position the shape, enable the button of the document window.
    16
    Start the Teknik işlem .
    With the button, show Symbol view after technical processing.
    17
    Generate Sintral.
    18
    Start the Sintral Kontrolü.
    19
    Genişlet the knitting program.
  2. A program for the knitting machine will be created: CMS530.Pattern11.zip.
    3. 20
    Load knitting program into the machine.

: The extracted file CMS530.Pattern-11.zip can be loaded onto the machine with an USB stick or via Ethernet.
