Change the default settings for the main take-down (WMF)
Change the specifications for the main take-down in the pattern:
- You see and change the default settings for the main take-down in the
设计花型. - The
主牵拉（WMF） control column is displayed.
- 1
- Open the existing 花型项目 and save it with a new name via the 文件 / 另存为 menu.
- or -
Create new 花型项目 with an individual pattern. - 2
- In the document window 设计花型, position the cursor on the 主牵拉（WMF） control column and click the RMB.
- or -

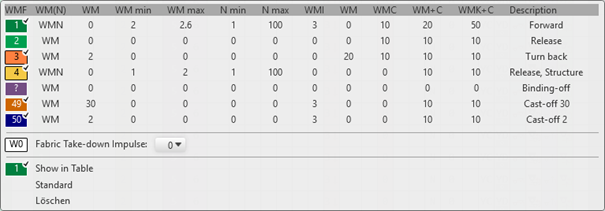

Open the context menu in the second row of the table header containing the default settings with RMB. - The context menu for the 主牵拉（WMF） appears.
- The fabric take-down functions (WMF) used in the pattern are displayed and are marked by the
symbol. - The entries marked as favorites in the 主牵拉（WMF / WBF） / 默认 tab under the 牵拉 section of the Setup 数据 tool window are displayed.
- 3
- Select the desired main take-down value and enter it in the control column.
- or -
Fill a selection.
The main take-down values (WMF) displayed in the context menu correspond to the table in the Setup 数据 tool window in the 主牵拉（WMF） section of the 用户 tab.
