Step by Step to Pattern-1

A pattern project with one pattern and the desired settings is created.

1: Work with the following drawing tools:

Group 绘图工具 :

画笔 (V)
线 (B)
矩形 (N)

Without the selection of a pattern color - Yarn Color:
A selection is generated.

While drawing with drawing tools without the selection of a pattern color, a
selection is generated.
It can be deleted with the shortcut Ctrl+D.

With the selection of a pattern color - Yarn Color:
The yarn color is drawn into the basic pattern.

Deleting all cursor attributes: Key ESC
Deleting of individual cursor attributes with X via the corresponding attribute

删除颜色

For drawing the design pattern, with it several yarn carriers may be necessary for each yarn color.

Bobbin with color
Not used within design pattern
Bobbin with color +
Used within design pattern

: Yarn carriers will not be allocated automatically to a yarn carrier rail.
Yarn carrier home position can be determined automatically.

2: Change the width and height of the pattern.

Group 修改 :

Zoom (function button Z)
Delete / insert row(s) / column(s)
Select row(s) / column(s) and insert / delete

3: Draw-in colored stripes in any yarn color from row 27 at the height of 18 rows.

4: Adjust the view of the control columns.

In the design pattern (before technical processing)
In the technical pattern (after technical processing)

Displaying the control columns in the document window

The control columns can be displayed in every document window.

显示控制列 (TAB)
隐藏控制列 (TAB)

The control columns are divided into colored groups.

View Options of the Control Columns:

显示使用的控制列
隐藏所有控制列
显示所有的控制列
用户自定义控制列

Project Layout
User Layout

Overview of all possible control columns after technical processing


: Before technical processing: The pattern row numbers are displayed in the column. After technical processing: The technical row number is displayed in the column.

Table header	1.	Symbols to identify control columns
Table header	2.	Default settings from global file STOLL for the respective control column with a new pattern project : No Entry No default settings for this control column Colored entry STOLL Default Setting This default setting is displayed more transparent in every pattern row and used by the 处理. Change of the Stoll default setting in the table header: Change valid for all pattern rows in the selected pattern : It is not automatically applied in other patterns. The change in the desired pattern rows: The change overwrites the default setting in the desired pattern rows with the selected entry (= colored entry)

Group 1		花型行	Display the consecutive numbering of the pattern rows. : If a pattern row consists of several rows (technical rows), the pattern row number is visible multiple times.
		提花行号	Display the Jacquard line number. : Available after 处理.
		Sintral行号	Display the Sintral line number. : Available after 处理.
Group 2		动程编号	Display stroke number : Is determined by 处理.
		动程	Specifications for defining the carriage stroke
		机头方向	Presets of the carriage direction : Is determined by 处理.
		系统	Presets of the use of knitting systems : Is determined by 处理.
		System Function	With the use of special cams Holding-deep Knitting via split curve Not Sunken Tuck Devoré FlexPly

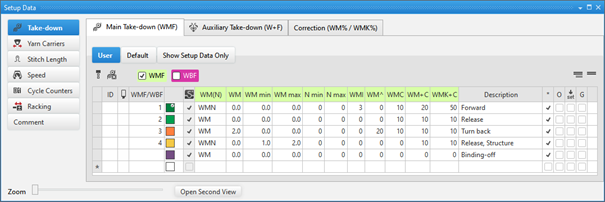

Group 3		主牵拉（WMF）	Presets for comb, main take-down and auxiliary take-down
		打开主牵拉（=W= / =C=）

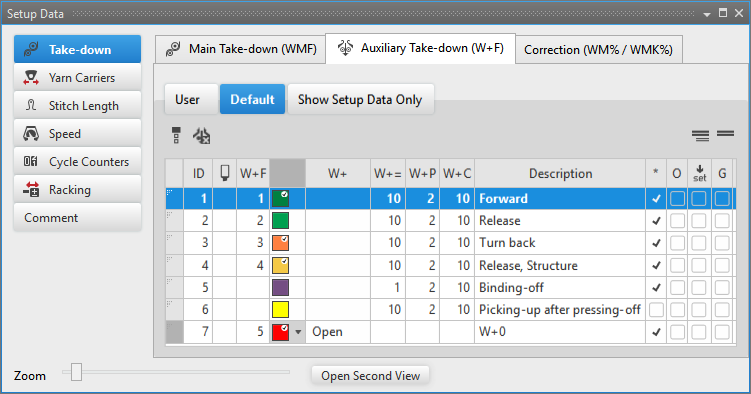

		辅助牵拉（W+F）
		牵拉梳
Group 4		落布区控制（LK / LW）	Presets for the control of the collecting area : Is only displayed with machines with control of the collecting area.
Group 4		织物传感器（WS）	Specifications for the fabric sensors : is only displayed for the CMS 9xx

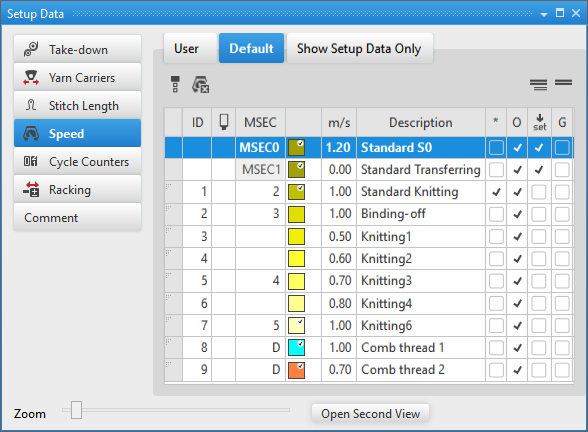

Group 5		速度 (MSEC)	Presets for carriage speed
		机器慢速（ML）
		停机（MS）
Group 6		前板线圈长度（NPv）	Presets for the stitch length on front and rear needle bed
Group 6		后板线圈长度（NP^）	Presets for the stitch length on front and rear needle bed
Group 7		循环（RS）	Specifications for cycles for length control Inner cycles Outer cycles
Group 8		Border Fixation	Presets for the border fixation
Group 9		Sintral 指令 / PRINT	Presets for the Sintral and PRINT command
Group 9		功能调用 (F:)	Presets for function calls and additional commands
Group 10		编织带出	Presets for knitting-out all the yarn carriers of a common row
		颜色排列	Color entry for Color Arrangements in use
		嵌花锁定	Presets for the tuck binding with intarsia / gore in a common row
Group 11		周边组织翻针	Preset for transferring of the whole pattern or in a defined areas
		多系统翻针
		模块排列	Color entry for Module Arrangements in use
		脱圈和翻针	Preset for combining transferring and casting-off in a common technical row of the whole pattern or in a defined areas
Group 12		工艺行排序	Specifications for Sorting of rows Weft yarn insertion with CMS 330 / 530
Group 13		横移位编织 VJA^	Specifications for jacquard selection at the rear needle bed
		横移 VN，VU，V#	Preset of racking type Normal racking (N) Half racking (#) Transfer racking (U)
		横移值	Specification of the racking step for the rear needle bed
		横移修正（VCI）	Preset for racking corrections
Group 14		导纱器交错排列（YD）/（YDI）	Presets of yarn carrier staggering on the fabric selvedge for Setup
		导纱器修正 (YC / YCI)	Presets of yarn carrier corrections for Setup
		导纱器预设置	Specifications for Swiveling of I yarn carriers Clamp of yarn carriers Open Clamp Stop at the SEN edge Waiting position of the yarn carriers
		导纱器	Column for display of all relevant yarn carrier data after 处理

Two modes to enter data in the control columns:

In the 起头 ribbon under 绘图.

一次点击
Press LMB at start position and hold it until the end position.
双击
Click and release LMB at start position and click it again at the end position.

Two modes to delete data in the control columns:

In the 起头 ribbon under 填充.

Delete All from Control Column (except racking)
删除
All Control Columns to Default
默认

The procedure for multiple entries in control columns:

循环（RS）
导纱器预设置
导纱器停止

Add an entry to an existing entry:

Add
With the Ctrl key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL key.
Press LMB and hold it until the end position.
Release the left mouse button.

Add
With the Ctrl key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL key.
Click left mouse button.
Draw the cursor to the end position.
Click left mouse button again.

Delete Entry:

Delete
With the CTRL + ALT key

Set cursor to the start position.
Press LMB and hold it until the end position.
Release the left mouse button.

Delete
With the CTRL + ALT key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL + ALT keys.
Click left mouse button.
Draw the cursor to the end position.
Click left mouse button again.

Selecting Control Columns

1: Position the cursor in the header of the control columns and press the right mouse button to open the context menu.

The context menu appears.

2: Select the desired control columns in the context menu via 用户自定义控制列.

3: Open the context menu with RMB.

4: Select 将设计花型外观保存为默认 in the menu.

The setting will be saved and loaded when opening a design pattern.

Viewing Options of Control Columns

用户自定义控制列	Adding or closing the desired control columns in the selection list
显示使用的控制列	Display of the control columns used in the pattern
显示所有的控制列	Display of all control columns
隐藏所有控制列	Hide the display of control columns
冻结该控制列（双击）	Freezed control columns keep visible when hiding control columns Identification of freezed control columns by a point : Unfreezing by 隐藏该组 or 隐藏该控制列
隐藏该控制列	Hide control columns at the cursor position.
隐藏该组	Hide all control columns allocated to a group.
将设计花型外观保存为默认	Save the selected control columns as user defined default for editing the design pattern.
导入默认设计花型外观	Restore the customized default for editing the design pattern.
将设计花型外观重置为STOLL默认	Restore the saved STOLL default setting.

5: Change the following pattern parameters using the control column in the colored stripe:

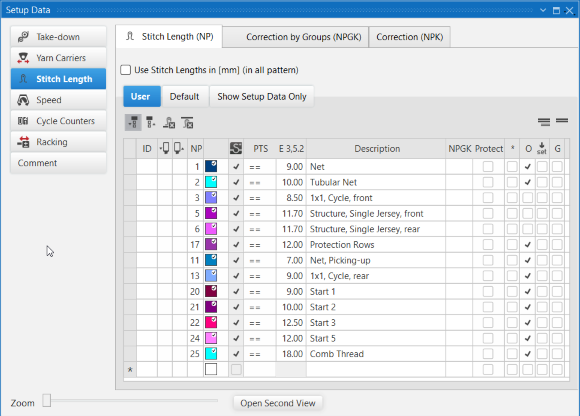

Stitch Length

1: Position the cursor on the control column.

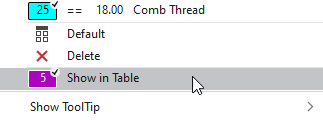

2: Select 在表中显示 in the context menu.

- or -
Select directly from the list of the 收藏夹.

The Setup 数据 dialog box appears.

3: Open the 默认 tab.
- or -
Open the 用户 tab.

4: Select the desired existing entry from the tables.
- or -
In the 用户 tab position the cursor in the first column and select 添加表行... in the context menu.

New entry is added at the end of the table.

5: Make the desired presettings for the entries in use:

Define NP index.
Change Color.
Enter NP value.
Enter the description.

6: In the desired area of the control column enter the color of the stitch length.

Change the specifications for the stitch lengths in the pattern:

See and modify the default settings for the stitch lengths in the 设计花型.
The 前板线圈长度（NPv） / 后板线圈长度（NP^） control columns appear.

1: Open the existing 花型项目 and save it with a new name via the 文件 / 另存为 menu.
- or -
Create new 花型项目 with an individual pattern.

2: Set the cursor to the 前板线圈长度（NPv） / 后板线圈长度（NP^） control columns of the 设计花型 document window and click the RMB.
- or -
Open the 线圈长度 (NP) context menu in the second row of the table header containing the default settings.

The stitch lengths context menu appears.

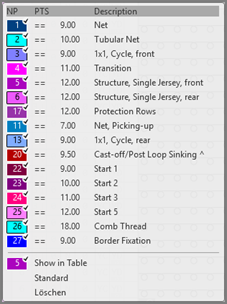

The stitch lengths used in the pattern are displayed and are marked by the symbol.
The entries marked as favorites in the 线圈长度 (NP) / 默认 tab under the 线圈长度 section of the Setup 数据 tool window are displayed.

3: Select the desired stitch length and enter it in the control column.
- or -
Fill a selection.

Notice:

The stitch lengths shown in the context menu correspond to the table in theSetup 数据 tool window under the 线圈长度 section of the 线圈长度 (NP) / 用户 tab.

Open stitch length tab and select or change an entry:

设计花型 is selected.

1: Open the selection list in the 起头 ribbon under 参数 at 工具窗口 and select the Setup 数据 .
- or -
Click the symbol directly under 参数.

The Setup 数据 tool window appears.

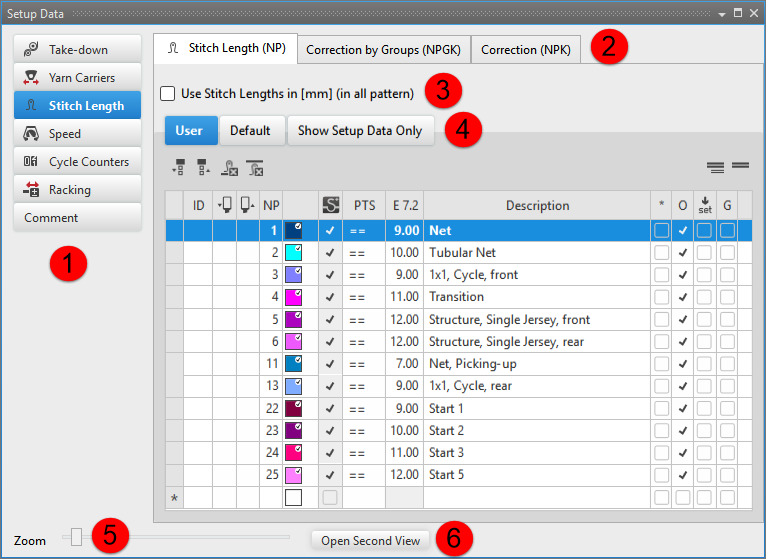

1	All sections of Machine Parameters appear in Setup
2	Tabs for additional machine parameters
3		Use stitch length values in the STOLL default unit
		Use stitch length values in millimeters
4	Tabs
	用户		Stitch lengths used in the pattern Stitch lengths marked as favorites
	默认		All the stitch lengths of the STOLL template
	仅显示 Setup 数据 [Name of the active document]		All the stitch lengths used in the pattern : These data will be saved to the setup file.
5	Zoom		Zoom in or out
6	Open Second View		Opening an additional Setup 数据 tool window.

2: Select the 线圈长度 section.

3: Select the 线圈长度 (NP) / 默认 tab.

4: Select the desired stitch length in the or column of the table and insert it in the control column.

前板线圈长度（NPv）
Click the stitch length in the column.
后板线圈长度（NP^）
Click the stitch length in the column.
前板线圈长度（NPv） and 后板线圈长度（NP^）
Click the stitch lengths with the CTRL key in the and columns.

The default settings in the control columns of these design rows will be overwritten.

Options in the toolbar

	Selecting the default value to enter in the control column
	Selecting the default value to enter in the control column
	Deleting an entry in the control column
	Deleting an entry in the control column
	Show Pattern-related Values
	Hide Pattern-related Values

Column labels of the stitch length tool window

Column	Display
ID / IDv / ID^	Consecutive numbering and sorting of the entries
	Selecting stitch length for the front needle bed to enter it into the control column and as PTS into the pattern
	Selecting stitch length for the rear needle bed to enter it into the control column and as PTS into the pattern
NP	Input and display of the index for the indirect (NPn=1-500) or direct (D) stitch length allocation
Colors	Display of colors to enter in the control columns
PTS	Specification for NPJ or PTS (Power Tension Setting).
Gauge E	List of stitch length values depending on the gauges of the selected machine

Column	Display
Description	Comment on the use of the entry.
*		Entry is not defined as favorite, meaning the entry is only within the 默认 table available.
*		Entry is defined as favorite, meaning the entry is available within the 用户 table or directly via the context menu of the control columns.
O		Value cannot be overwritten (Overwrite) by a value of another table.
O		Value can be overwritten (Overwrite) by a value of another table. (Default)
		The entry will not be applied to the Setup data : All entries used in the pattern are applied by default to the Setup data.
		The entry will be applied to the Setup data. : With it, you can transfer data, even if not used in the pattern, into the Setup file.
G		All settings of the 默认 or 用户 table are STOLL defaults (STOLL Template). Changes in the table are only project-related! : The STOLL template is used for creating a new pattern project.
G		These settings of the 默认 or 用户 table are now User Standards (User-Template) The changes in the table will be saved in the user template for following projects. : The user template is used for creating a new pattern project.

Specify the favorites:

设计花型 is selected.

1: Open the Setup 数据 tool window.

2: Select the 线圈长度 section.

3: Select the 线圈长度 (NP) / 默认 tab.

4: Mark the desired entry in the * column .

5: Close the tool window with .

The selected entry will be displayed in the context menu and can be inserted in the design pattern for the front or rear stitch length.

Add a new entry in the stitch length tab:

Notice:
New entries can only be added in the 用户 tab.

设计花型 is selected.

1: Open the Setup 数据 tool window.

2: Select the 线圈长度 section.

3: Select the 线圈长度 (NP) / 用户 tab.

4: Set the cursor in the left table column to the * row.

5: Call up the 添加表行... context menu.

A new entry will be added at the end of the table.

6: Make the desired specifications in the columns of the new entry.

7: Close the table with .

Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Stitch Lengths (NP) tab to the pattern:

设计花型 is selected.
The control columns for Front Stitch Length and Rear Stitch Length are displayed.

1: Open the Setup 数据 tool window.

2: Select the 线圈长度 section.

3: Select the 线圈长度 (NP) / 用户 tab.

4: Select the desired stitch length in the or column:

Entry in the control column:
Click on the stitch length in the column.
Entry in the control column:
Click on the stitch length in the column.
Entry in the and control column
Click on the stitch lengths with the CTRL key in the and columns.

5: Enter the stitch length in the control column.

6: If necessary, change more pattern parameters, e.g. in the colored stripe, via the control columns:

主牵拉 :
Create new WMF index in the Setup table and enter it into the control column.
: WM最小 /WM最大 , N 最小 / N 最大 is displayed after technical processing in the Setup table according to the pattern width.

Change the specifications for the main take-down in the pattern:

You see and change the default settings for the main take-down in the 设计花型.
The 主牵拉（WMF） control column is displayed.

1: Open the existing 花型项目 and save it with a new name via the 文件 / 另存为 menu.
- or -
Create new 花型项目 with an individual pattern.

2: In the document window 设计花型, position the cursor on the 主牵拉（WMF） control column and click the RMB.
- or -
Open the context menu in the second row of the table header containing the default settings with RMB.

The context menu for the 主牵拉（WMF） appears.

The fabric take-down functions (WMF) used in the pattern are displayed and are marked by the symbol.
The entries marked as favorites in the 主牵拉（WMF / WBF） / 默认 tab under the 牵拉 section of the Setup 数据 tool window are displayed.

3: Select the desired main take-down value and enter it in the control column.
- or -
Fill a selection.

: The main take-down values (WMF) displayed in the context menu correspond to the table in the Setup 数据 tool window in the 主牵拉（WMF） section of the 用户 tab.

Select an entry of the Main Take-down (WMF) tool window and change it:

设计花型 is selected.
The 主牵拉（WMF） control column is displayed.

1: Open the Setup 数据 tool window.
起头 ribbon -> 工具窗口 -> Setup 数据 selection menu
- or -
参数 ribbon group-> Setup 数据.

The Setup 数据 tool window appears.

2: Select the 牵拉 section.

3: 主牵拉（WMF） / 默认 tab
- or -
Select 用户.

4: Select the desired main take-down value in the column and enter it in the control column.

The default setting in the control column will be overwritten in these design rows.

Options in the toolbar

	Selecting the default value to enter in the control column
	Deleting an entry in the control column
WMF		Hide the display of the columns wit the main take-down values for the Multiflex take-down
		Show the display of the columns wit the main take-down values for the Multiflex take-down
WBF		Hide the display of the columns wit the take-down values for the belt take-down
		Show the display of the columns wit the take-down values for the belt take-down
	Show Pattern-related Values
	Hide Pattern-related Values

Column labels of the main take-down (WMF) tool window

Column	Display
ID / IDv / ID^	Consecutive numbering and sorting of the entries
	Selecting the main take-down value to enter it in the control column
WMF / WBF	Index for indirect allocation of the fabric take-down value for the main take-down Multiflex or belt take-down
Color	Display of colors to enter in the control columns
WM(N)	WM	Fabric take-down value when this is not changed in accordance with the quantity of needles.
WM(N)	WMN	Fabric take-down value when this is changed in accordance with the quantity of needles (fabric width).
WM	Fabric take-down value when this is not changed in accordance with the quantity of needles.
WM min	Fabric take-down value for minimum fabric width
WM max	Fabric take-down value for maximum fabric width
N min	Quantity of needles for minimum fabric width
N max	Quantity of needles for maximum fabric width
WMI	Fabric take-down impulse value
WM^	Specification of a number of degrees for the reverse rotation of the take-down
WMC	Value for the sensitivity of the stop motion control of the main take-down
WM+C	Specification of the system number for the fabric take-down control
WMK+C	Specification of the system number for comb monitoring

Column	Display
Description	Comment on the use of the entry.
*		Entry is not defined as favorite, meaning the entry is only within the 默认 table available.
*		Entry is defined as favorite, meaning the entry is available within the 用户 table or directly via the context menu of the control columns.
O		Value cannot be overwritten (Overwrite) by a value of another table.
O		Value can be overwritten (Overwrite) by a value of another table. (Default)
		The entry will not be applied to the Setup data : All entries used in the pattern are applied by default to the Setup data.
		The entry will be applied to the Setup data. : With it, you can transfer data, even if not used in the pattern, into the Setup file.
G		All settings of the 默认 or 用户 table are STOLL defaults (STOLL Template). Changes in the table are only project-related! : The STOLL template is used for creating a new pattern project.
G		These settings of the 默认 or 用户 table are now User Standards (User-Template) The changes in the table will be saved in the user template for following projects. : The user template is used for creating a new pattern project.

Specify the favorites:

设计花型 is selected.

1: Open the Setup 数据 tool window.

2: Select the 牵拉 section.

3: Select the 主牵拉（WMF） / 默认 tab.

4: Mark the desired entry of the table in the * column as .

5: Close the tool window with .

The selected entry will be displayed in the context menu and can be inserted in the design pattern for the main take-down.

Add a new entry in the main take-down (WMF) tab:

: New entries can only be added in the 用户 tab.

设计花型 is selected.

1: Open the Setup 数据 tool window.

2: Select the 牵拉 section.

3: Select the 主牵拉（WMF） / 用户 tab.

4: Set the cursor in the left table column to the * row.

5: Call up the 添加表行 context menu.

A new entry will be added at the end of the table.

6: Make the desired specifications in the columns of the new entry.

7: Close the table with .

Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Main take-down (WMF) tab to the pattern:

设计花型 is selected.
The 主牵拉（WMF） control column is displayed.

1: Open the Setup 数据 tool window.

2: Select the 牵拉 section.

3: Select the 主牵拉（WMF） / 用户 tab.

4: Select the desired main take-down value in the column.

5: Enter the selected main take-down value in the control column.

辅助牵拉（W+F）

Change specifications for the auxiliary take-down in the pattern:

: In the Auxiliary take-down (W+F) control column the value W+F1 is entered by default and the value is set to 'Don't Care'. This allows for activating / deactivating the auxiliary take-down at the machine.

You see and change the default settings for the auxiliary take-down in the 设计花型.
The Auxiliary take-down (W+F) control column is displayed.

1: Open the existing 花型项目 and save it with a new name via the File / Save as… menu.
- or -
Create new 花型项目 with an individual pattern.

2: In the document window 设计花型, position the cursor on the Auxiliary take-down (W+F) control column and click the RMB.
- or -
Open the Auxiliary take-down context menu in the 2nd row of the table header containing the default settings with RMB.

The context menu for the auxiliary take-down (W+F) appears.

The auxiliary take-down functions (W+F) used in the pattern are displayed and are marked by the symbol.
The entries marked as favorites in the 辅助牵拉（W+F） / 默认 tab under the 牵拉 section of the Setup 数据 tool window are displayed.

3: Select the desired auxiliary take-down value and enter it in the control column.
- or -
Fill a selection.

: The auxiliary take-down values (W+F) shown in the context menu correspond to the table in the Setup 数据 tool window under the 牵拉 section of the 辅助牵拉（W+F） / 用户 tab.

Select an entry of the Auxiliary Take-down (W+F) tool window and change it:

设计花型 document window is selected.
The 辅助牵拉（W+F） control column is displayed.

1: Open the selection list in the 起头 ribbon at 工具窗口 and select Setup 数据.
- or -
Directly under 参数 click the Setup 数据 icon.

The Setup 数据 tool window appears.

2: Select the 牵拉 section.

3: 辅助牵拉（W+F） tab / 默认
- or -
Select 用户.

4: Select the desired auxiliary take-down value in the column and enter it in the control column.

The default setting will be overwritten in these design rows.

Options in the toolbar

	Selecting the default value to enter in the control column
	Deleting an entry in the control column
	Show Pattern-related Values
	Hide Pattern-related Values

Column labels of the auxiliary take-down (W+F) tool window

Column	Display
ID	Consecutive numbering and sorting of the entries
	Selecting the speed value to enter it in the control column
W+F	Index for indirect allocation to the auxiliary take-down
Color	Display of colors to enter in the control columns
W+	Open or close the auxiliary take-down
W+=	Speed of auxiliary take-down
W+P	Value for the contact pressure of the auxiliary take-down (CMS 822 only)
W+C	Specification of the system number for the auxiliary take-down control

Column	Display
Description	Comment on the use of the entry.
*		Entry is not defined as favorite, meaning the entry is only within the 默认 table available.
*		Entry is defined as favorite, meaning the entry is available within the 用户 table or directly via the context menu of the control columns.
O		Value cannot be overwritten (Overwrite) by a value of another table.
O		Value can be overwritten (Overwrite) by a value of another table. (Default)
		The entry will not be applied to the Setup data : All entries used in the pattern are applied by default to the Setup data.
		The entry will be applied to the Setup data. : With it, you can transfer data, even if not used in the pattern, into the Setup file.
G		All settings of the 默认 or 用户 table are STOLL defaults (STOLL Template). Changes in the table are only project-related! : The STOLL template is used for creating a new pattern project.
G		These settings of the 默认 or 用户 table are now User Standards (User-Template) The changes in the table will be saved in the user template for following projects. : The user template is used for creating a new pattern project.

Specify the favorites:

设计花型 is selected.

1: Open the Setup 数据 tool window.

2: Select 牵拉 section -> 辅助牵拉（W+F） tab.

3: Select the 默认 tab.

4: Mark the desired entry in the * column .

5: Close the tool window with .

The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the auxiliary take-down (W+F) tab:

: New entries can only be added in the 用户 tab.

设计花型 document window is selected.

1: Open the Setup 数据 tool window.

2: Select the 牵拉 section.

3: Select the 辅助牵拉（W+F） / 用户 tab.

4: Set the cursor in the left table column to the * row.

5: With the RMB open the context menu and select Add row.

A new entry will be added at the end of the table.

6: Make the desired specifications in the columns of the new entry.

7: Close the table with .

Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Auxiliary take-down (W+F) tab to the pattern:

设计花型 document window is selected.
The Auxiliary take-down (W+F) control column is displayed.

1: Open the Setup 数据 tool window.

2: Select the 牵拉 section.

3: Select the 辅助牵拉（W+F） / 用户 tab.

4: Select the desired auxiliary take-down value in the column.

5: Enter the selected auxiliary take-down value in the control column.

机头速度 :
Create new index for the carriage speed in the Setup table and enter it into the control column.

Change the specifications for the carriage speed in the pattern:

See and modify the default settings for the stitch lengths in the 设计花型.
The 速度 (MSEC) control column is displayed.

1: Open the existing 花型项目 and save it with a new name via the 文件 / 另存为 menu.
- or -
Create new 花型项目 with an individual pattern.

2: In the document window 设计花型, position the cursor on the 速度 (MSEC) control column and click the RMB.
- or -
In the 2nd row of the table header, open the context menu containing the default settings with RMB.

The context menu for the 速度 (MSEC) appears.

The speed functions (MSEC) used in the pattern are displayed and are marked by the symbol.
The entries marked as favorites in the Setup 数据 tool window under the 速度 section of the 默认 table are displayed.

3: Select the desired main take-down value and enter it in the control column.
- or -
Fill a selection.

: The velocity values (MSEC) displayed in the context menu correspond to the table in the Setup 数据 tool window in the 速度 section / 用户 tab.

Select an entry of the Speed (MSEC) tool window and change it:

设计花型 is selected.
The 速度 (MSEC) control column is displayed.

1: Open the selection list in the 起头 ribbon at 工具窗口 and select Setup 数据.
- or -
click the Setup 数据 icon directly under 参数.

The Setup 数据 tool window appears.

2: Select the 速度 (MSEC) section.

3: 默认 Tab
- or -
Select 用户.

4: Select the desired speed value in the column and enter it in the control column.

The default setting will be overwritten in these design rows.

Options in the toolbar

	Selecting the default value to enter in the control column
	Deleting an entry in the control column
	Show Pattern-related Values
	Hide Pattern-related Values

Column labels of the Speed (MSEC) tool window

Column	Display
ID / IDv / ID^	Consecutive numbering and sorting of the entries
	Selecting the speed value to enter it in the control column
MSEC	Index for indirect allocation of the speed
Color	Display of colors to enter in the control columns
m/s	Value for the speed

Column	Display
Description	Comment on the use of the entry.
*		Entry is not defined as favorite, meaning the entry is only within the 默认 table available.
*		Entry is defined as favorite, meaning the entry is available within the 用户 table or directly via the context menu of the control columns.
O		Value cannot be overwritten (Overwrite) by a value of another table.
O		Value can be overwritten (Overwrite) by a value of another table. (Default)
		The entry will not be applied to the Setup data : All entries used in the pattern are applied by default to the Setup data.
		The entry will be applied to the Setup data. : With it, you can transfer data, even if not used in the pattern, into the Setup file.
G		All settings of the 默认 or 用户 table are STOLL defaults (STOLL Template). Changes in the table are only project-related! : The STOLL template is used for creating a new pattern project.
G		These settings of the 默认 or 用户 table are now User Standards (User-Template) The changes in the table will be saved in the user template for following projects. : The user template is used for creating a new pattern project.

Specify the favorites:

设计花型 is selected.

1: Open the Setup 数据 tool window.

2: Select the 速度 (MSEC) section.

3: Select the 默认 tab.

4: Mark the desired entry in the * column .

5: Close the tool window with .

The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the speed (MSEC) tab:

: New entries can only be added in the 用户 tab.

设计花型 document window is selected.

1: Open the Setup 数据 tool window.

2: Select the 速度 (MSEC) section.

3: Select the 用户 tab.

4: Set the cursor in the left table column to the * row.

5: Call up the 添加表行... context menu.

A new entry will be added at the end of the table.

6: Make the desired specifications in the columns of the new entry.

7: Close the table with .

Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Speed (MSEC) tab to the pattern:

The 设计花型 document window is selected.
The 速度 (MSEC) control column is displayed.

1: Open the Setup 数据 tool window.

2: Select the 速度 (MSEC) section.

3: Select the 用户 tab.

4: Select the desired speed value in the column.

5: Enter the selected speed value in the control column.

7: Import the existing sleeve shape and position it.

: If the basic pattern is too small for the shape, then the size of the basic pattern will be automatically adjusted to the size of the shape.
Attention: Perhaps the color strap needs to be adapted.

8: Open the line table by the 线表 button to get an explanation of a shape.

Structure of a basic shape

	A	Starting line
	B	Area with shape modification because of widening
	C	Area without shape modification
	D	Area with shape modification because of narrowing
	E	End line

Recommendation: Create a shape of an even numbered height in total.

Fading-out

Exchange of the knitting mode at the shape edges

While cutting out the shape, the knitting mode is replaced at the shape edges.

Cutting-out the shape

Grey area = Outside shape
White area = Within shape

: This results in the shape edges for fading-out, widening, and narrowing.

Marked area (blue):

Fade-out width
Number of stitches, that should be replaced with a different knitting mode.
Fade-out content
Selection of the desired knitting mode for the specified fading-out width

Widening

Widening of a fabric piece

Step width of widening

: Widening by 1 needle only

Step height of widening

= Number of rows between two widening steps

: Step height is as desired.

Widening Width

Depending from the selected widening module

: When widening by 1 needle with the 标准，放针 module, the widening width is 1 by default.

Narrowing

Narrowing of a fabric piece

: The transfer of stitches results in double stitches (fashioning marks).

Step Width

1 needle (stitch) narrowing
2-needle-narrowing (stitches)
3-needle-narrowing (stitches)
From a narrowing greater than 4 needles (stitches) a binding-off is carried out

Step height

= Number of rows between two narrowing steps

: Step height is as desired.

Narrowing Width

Depending on the knitting mode of the basic pattern

Rules for a raglan sleeve shape in the SJ knitting mode

Shape Attributes	Rules
Knitting Mode	Single Jersey
Step width of widening	1 needle (stitch) per knitting row
Step height of widening	As desired
Quantity of rows without shape modification	As desired
Step width when narrowing	1 - 3 needles (stitches)
Step height when narrowing	As desired
Narrowing Width	As desired
Fading-out Width	As desired
Knitting mode for fading-out	Front Stitch with Transfer (default)

9: Click the 导纱器 button under 预览 in the 起头 ribbon.

The New Pattern xx document window is opened as view and the 导纱器 ribbon appears.

Yarn Carrier Color as Background
	Switching the view between the different pattern colors : Only with certain pattern colors available.

Show Knitting-out
	inactive	Knitting-out of the yarn carriers is not displayed in the graphic.
	Active	Knitting-out of the yarn carriers is displayed in the graphic. : The knitting-out is displayed as marking with specified direction at the corresponding side of the area.

10: Open the tool window with the 导纱器 button -> 显示导纱器 -> 可用的纱线和导纱器 tab

11: Select the desired yarn carrier.

12: Make the following changes:

Combine yarn carriers from the pattern with the yarn carriers from the start.

合并导纱器
不要合并导纱器

Allocate the yarn carriers to the rails.

13: Apply the changes:
编辑 group -> 应用
- or -
编辑 group -> 应用并关闭

	同步	将设计花型中的更改应用到导纱器视图上并把两个视图同步到花型的当前状态。
	应用	将导纱器更改应用到设计花型上。其他更改（例如颜色参数）将一次应用。
	应用并关闭	将导纱器更改应用到设计花型上然后关闭视图。其他更改（例如颜色参数）将一次应用。
	取消并关闭	忽略更改并关闭导纱器视图。 Close with 取消并关闭 if you only opened the Yarn Carrier view for control.

Explanation of the 导纱器 tool window:


1		可用的纱线和导纱器 Tab

5			Returning yarn carriers to the magazine according to their position at the left or right side of the yarn carrier rails. : Yarn carriers of the pattern only - excepting the yarn carrier colors which are firmly allocated to a certain rail.
			Allocating the yarn carriers for technique colors to the yarn carrier rails according to the standard preallocation.
			Returning yarn carriers from the yarn carrier rails to the magazine as 'undefined'. : Yarn carrier of the pattern only.
			Allocating the yarn carriers from the magazine to the yarn carrier rails.
		显示未使用的工艺色
			In the view of the yarn carrier rails, only the technique colors used in the pattern are displayed.
			In the view of the yarn carrier rails, the technique colors not used in the pattern are displayed as well.
6		Display of the yarn carriers for yarn and magazine colors regarding the positioning on the left side during rail allocation. : Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the left side when allocating.
7		Display of the yarn carriers for yarn and magazine colors regarding the positioning on the right side during rail allocation. : Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the right side when allocating.
8		Display of the yarn carriers for yarn and magazine colors undefined. : The yarn carriers have no allocation to a rail nor to a side (left/right)
9 / 10			Release for allocation of the rail with a yarn carrier left / right
			No release for allocation of the rail with a yarn carrier left / right
10 / 11		Graphic presentation of the yarn carrier rails with the used yarn carrier types on the left / right side and specification of the corresponding colors. This results in the yarn carrier home position left / right.

Input panel for the selected yarn carrier
13				Set as Used
						Yarn carrier position is free for allocation
						Yarn carrier position is not free for allocation : For example when inserting Sintral functions where yarn carriers are used.
	位置			Specification of the yarn carrier position of a yarn carrier color
	型号
	说明			Comment on a yarn carrier : Is entered in Sintral in the table of the yarn carriers.
14	花型颜色（扩展之后）			Display of the pattern color of the selected yarn carrier
	工艺颜色			Display of the technique color of a selected technical yarn carrier
	夹持深度			Needle sinking of clamping and cutting needle Command: NCC=n (n= -10 to 10)
15	起头前编织带入				Selected yarn carrier is not knit-in in the Knitting-in before start function.
					Selected yarn carrier is knit-in in the Knitting-in before start function.
	编织带入到另一侧				A yarn carrier remains on the corresponding side based on its home position.
					A yarn carrier is knitted before the start to the opposite side of its home position. : Use: With MC with single-sided clamping / cutting.
	停在：			模型边缘 SEN 边缘
16	咬合宽度 [mm]
	左侧 (Ua)			Engaging width for the left side
	右侧 (Ub)			Engaging width for the right side
	滑块宽度 [mm]			Specification depending on the yarn carrier type specified under 型号 : No entry possible!
17	Border Fixation			Selection of the knitting mode for the border fixation (module)
	Minimum Padding			Distance for the border fixation in rows
18	浮线全成型过渡				At the end a yarn carrier is moved to the home position according to the setting in the Yarn Field Allocation.
					At the end a yarn carrier is moved to its home position without knitting. : Use: For technical fabrics with weft yarn.
	EAY/S0Y 之后到模型边缘 (YG:nF)				The yarn carrier will not be positioned at the counters #L and #R.
					The yarn carrier will be positioned at the counters #L and #R and follows the shape.
	从 ”打开紗夹“ (Y-RALL( n ))命令中排除				Selected yarn carrier is controlled by the Y-RALL function.
					Selected yarn carrier will be excluded from the Y-RALL function and can be defined differently by the value (rows) at Color Parameters under .
				: By default, the clamp will be opened by the Y-RALL function for all yarn carriers after about 25 rows.

Additional tabs:

编织区域 (SEN)

Working with several SEN areas:

Machines without comb
Machines with comb but without using it

分机头 (YLR)

Change of the yarn carrier home position with tandem machines

送纱器组合

Use when working with feed wheels

: For the use of the feed wheels, you have define them in the 配置 dialog box -> 机器属性 tab under 电子送纱器.

14: Open the Expanded Symbol View with the 图标 button as preview if necessary to check the design pattern before further editing.
- and / or -
Open the expanded fabric view with the 织物 button

Expanded Symbol View

The desired pattern is selected.

1: Click the 预览 button in the ribbon under 图标.

: An additional document window appears with the expanded view of the design pattern.

2: Close the document window with in the Pattern name... tab.

Design Pattern	Expanded Symbol View

: The expanded symbol view opened via 图标 button is write protected.

扩展织物视图

The desired pattern is selected.

3: Click the 预览 button in the ribbon under 织物.

: An additional document window appears with the fabric view of the design pattern.

4: Close the document window by in the pattern name... tab.

Fabric View

Options in the status bar
展开		Show 扩展织物视图 with knitting rows and not knitting rows (transfer, cast-off, etc.)
折叠		Show 扩展织物视图 only with knitting rows
计算失真		Calculate the stitch distortion in order to get a realistic fabric view.
显示线圈密度的关系。		Show 扩展织物视图 with the specified stitch ratio
不脱散脱圈线圈		Drop stitches are displayed.
显示保护行		Display of the protection rows
抽出分离纱		Display of the draw thread
纱线结构		View of the selected yarn texture from the Yarn Explorer
背景		Set background color for 扩展织物视图
: The fabric view opened with the 织物 button is write protected.

15: Start Technical Processing:

Show symbol view after technical processing.

: Tip
Open the yarn carrier path in the "Technical View" :
The yarn carrier for the protection thread 1 (#205) will be clamped after the start and at the end brought in again in the protection rows in the 浮线，锁定，织物边缘 module from Configuration.

Technical processing of an individual pattern:

1: Select the desired pattern for the technical processing in the 花型 ribbon under 起头 .
- or –
Open the desired pattern in the 花型 tool window double clicking.

2: Start the technical processing for the selected pattern by the button in the 起头 ribbon under 衬经工艺.

: The result is shown in the pattern name... document window by an unprotected symbol view.

3: Close the document windows with in the Pattern name... tab of the document windows.
: The data will not get lost and can at any time be shown and edited in a document window by the 图标 button.

The success of technical processing is shown by in the 花型 tool window behind the pattern name.

Technical Processing successfully performed

Outdated technical processing

: Changes in the design pattern discard the already performed technique processing.

Presentation of the views

Design Pattern

Processed Symbol View

(not write-protected)

Before Technical Processing:
Only knitting rows will be displayed in the design pattern.

After Technical Processing:
The knitting rows and the transfer rows will be displayed in the symbol view.
The data contained in the modules such as racking specifications, fabric take-down, carriage direction, etc. will be entered in the corresponding control columns.

: The pattern will completely be processed and checked by all technical rules.

: You can open a write-protected display of stitches (Fabric View) after the technical processing by the 织物 button.

: Changes will be overwritten by re-processing .

Multiple Selection of Patterns for Technical Processing:

You can select several patterns for technical processing to start it more quickly.

Several patterns are created.

1: Click the 处理 button in the 起头 ribbon under Multiple Processing .

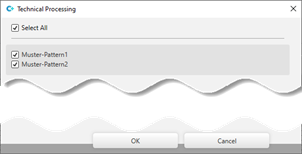

The 工艺处理 dialog box appears.

2: Select the desired setting.

: You cannot start the technical processing for patterns greyed-out as data may be missing.

3: Close the dialog box with 确定.

The technical processing is done automatically and shown by in the 花型 tool window.

4: Close the document windows by in the pattern name... tab of the document windows.
: The data will not get lost and can at any time be shown and edited in a document window by the 图标 button.

Successful processing is shown in the 花型 tool window by behind the pattern name.

16: Generate Sintral.

Generate knitting program for a single pattern:

Pattern is successfully processed.

1: Select the desired pattern in order to create it for the knitting program in the 起头 ribbon under 花型 .
- or –
Open the desired pattern in the 花型 tool window double clicking.

2: Start the technical processing by the button in the Sintral ribbon.

The *.sin; *.jac and *.setx files will be generated for the current patten.

The elements of the program are displayed by the following buttons:

	Sintral	Displaying the Sintral file
	提花	Displaying the packed Jacquard file
	MC Setup	Displaying the Setup file

Generate knitting programs for several patterns:

: You can select several patterns for the 生成编织程序 procedure to start it more quickly.

Several patterns or an order with several patterns is created and the technical processing is carried out for all patterns.

1: Click the 生成编织程序 button in the 起头 ribbon under Multiple Processing .

The 生成编织程序 tool window is displayed.

2: Select the desired setting.

You cannot start the 生成编织程序 processing for patterns greyed-out as data may be missing.

3: Close the dialog box with 确定.

The processing step is automatically done for the selection and the patterns are marked with symbol in the 花型 tool window.

17: Start Sintral Check

Sintral Check for a single pattern:

The 生成编织程序 processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.

1: Select the desired pattern for the Sintral Check in the 起头 ribbon under 花型 .
- or –
Open the desired pattern in the 花型 tool window double clicking.

2: Start the Sintral Check with the Sintral 检验 button.

The Sintral 检验 dialog box appears.

3: Start the simulation by the START button.

The Simulation OK message appears

4: Close the dialog box with X.

5: Continue with the next pattern.

Run the Sintral Check for several patterns (multiple selection):

You can select several patterns for the processing step

Sintral 检验, to start it more quickly.

Several patterns or an order with several patterns is created and processing steps are carried out until 生成编织程序.

1: Click the Sintral 检验... button in the 起头 ribbon under Multiple Processing .

The Sintral 检验 tool window is displayed.

2: Select the desired setting.

: You cannot start the Sintral Check for greyed-out patterns as data may be missing.

3: Close the dialog box with 确定.

The processing step is automatically done for the selection and the patterns are marked with symbol in the 花型 tool window.

18: Extract knitting program.

A program for the knitting machine will be created: CMS530.Pattern-1.zip.

Extract an individual pattern (*.zip) and save it:

The 生成编织程序 processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.
Sintral Check was done.

1: Select the desired pattern in order to extract it in the 起头 ribbon under 花型 .
- or –
Open the desired pattern in the 花型 tool window double clicking.

2: Click the 提取 button in the 起头 ribbon under Sintral.

The 另存为 dialog box will appear.

3: Change file name if desired.

4: Select the desired path for the *.zip file.

Local Drive
USB Memory Stick
Network Drive

5: Close the dialog box with the 保存 button.

After saving it, the zip file can be loaded and knitted on the machine.

Multiple selection of patterns or orders to create knitting programs:

You can select several patterns or orders for the processing step 提取..., to start it more quickly.

Several patterns are created.
The processing steps up to 生成编织程序, even up to Sintral 检验... are done.

1: Click the 提取 button in the 起头 ribbon under Multiple Processing .

The Search Folder dialog box will be opened.

2: Select an existing folder.
- or –
Create a new folder under the desired path by the Create folder button.

3: Select the folder.

4: Close the dialog box with OK.

Note appears: Following files successfully extracted:
You cannot start the 提取... processing step for greyed-out patterns / orders as data may be missing.

5: Close the dialog box with OK.

The extracted knitting programs are available in the folder and can be loaded on the machine.

19: Load knitting program into the machine.

: The extracted file CMS530.Pattern-1.zip can be loaded onto the machine with an USB stick or via Ethernet.

Step by Step to Pattern-1

Deleting a Selection

Deleting cursor attributes

Use of Yarn Colors

Drawing tools Pencil, Line and Rectangle without / with yarn color

Deleting / inserting of column(s) / row(s)

The Control Columns

Display of the control columns in the document window

Displaying the control columns in the document window

View Options of the Control Columns:

Overview of all possible control columns

Overview of all possible control columns after technical processing

Procedures within Control Columns

Two modes to enter data in the control columns

Two modes to enter data in the control columns:

Two modes to delete data in control columns

Two modes to delete data in the control columns:

Procedure for Multiple Entries in Control Columns

The procedure for multiple entries in control columns:

Add an entry to an existing entry:

Delete Entry:

Selecting Control Columns

Selecting Control Columns

Viewing Options of Control Columns

Viewing Options of Control Columns

Working with the control columns

Allocate New Indirect Stitch Length and Add it to Table

More About the Stitch Length (NP) Control Column

Change the default settings for the stitch length

Change the specifications for the stitch lengths in the pattern:

Working with the Stitch Length (NP) tab

Open stitch length tab and select or change an entry:

Options in the toolbar

Options in the toolbar

Meaning of the Columns of the Stitch Length (NP) Tool Window

Column labels of the stitch length tool window

Explanation of General Columns of the Stitch Length Tool Window

Specify Favorites

Specify the favorites:

Add New Entry to Table

Add a new entry in the stitch length tab:

Apply Entry from Auxiliary take-down Table to Pattern

Add entry of the Stitch Lengths (NP) tab to the pattern:

Indirect NP index and control columns

Working with Direct NP Values

More About the Main Take-down (WMF) Control Column

Change Default Settings for the Main Take-down

Change the specifications for the main take-down in the pattern:

Working with the Main Take-down (WMF) Tab

Select an entry of the Main Take-down (WMF) tool window and change it:

Options in the toolbar

Options in the toolbar

Meaning of the Columns of the Main Take-down (WMF) Tool Window

Column labels of the main take-down (WMF) tool window

Explanation of General Columns of the Take-down Tool Window

Specify Favorites

Specify the favorites:

Add New Entry to Table

Add a new entry in the main take-down (WMF) tab:

Apply Entry from Auxiliary take-down Table to Pattern

Add entry of the Main take-down (WMF) tab to the pattern:

Setup data for the main take-down

More About the Auxiliary Take-down (W+F) Control Column

Change default settings for the auxiliary take-down

Change specifications for the auxiliary take-down in the pattern:

Working with the Auxiliary Take-down Tab

Select an entry of the Auxiliary Take-down (W+F) tool window and change it:

Options in the toolbar

Options in the toolbar

Meaning of the Columns of the Auxiliary Take-down (W+F) Tool Window

Column labels of the auxiliary take-down (W+F) tool window

Explanation of General Columns of the Tool Window

Specify Favorites

Specify the favorites:

Add New Entry to Table

Add a new entry in the auxiliary take-down (W+F) tab:

Apply Entry from Auxiliary take-down Table to Pattern

Apply entry of the Auxiliary take-down (W+F) tab to the pattern:

More About the Speed (MSEC) Control Column

Change Default Settings of Machine Speed
