User Interface of CREATE PLUS

1

Quick Access Toolbar

Adjusting via the selection list

2

Ribbons

Ribbons containing the necessary groups for editing

  • 文件
  • 起头
  • 视图
  • 选择

: The ribbon can be minimized.

3

Properties of Drawing Tools

Adjusting the selected drawing tool

4

Tool Windows

Selection of the corresponding tool windows by in the ribbon

: You can move the tool windows by the Left Mouse Button and dock them to the edges of the main window or position them floating freely.

5

Document Window

Display and editing of pattern information

: You can move the tool windows by the Left Mouse Button and dock them in the center of the main window or position them floating freely.

6

Status Bar

  • Information about
    • Cursor position
    • Size when drawing
    • Color and needle action of the design pattern at the cursor position
    • Stitch length at the front / at the rear
  • Functions of controlling the view of the pattern
    • 纵向拆分视图
    • 前后所有花型色
    • 织针区域里的前后板线圈长度
    • 模块颜色
      Shows the module identifying color
    • 线圈长度组修正 （NPGK）
      Display of the colors for the individual NPGK definitions
    • #1 设置视图...
      View  (#1-#5) possible
    • 大模型符号
    • 显示结构阴影
    • 显示模块边界
    • 显示横移
    • 显示织针配置
    • 显示线圈密度的关系。
    • 显示注释
    • 显示网格
    • : 选项
      Settings for the needle occupancy and the grid
  • Additional functions of controlling the view of the pattern after the technical processing
    • Show 导纱器颜色
    • 显示导纱器
      Display of the yarn carrier paths
  • Functions of controlling the view of shapes
    • 显示对称轴
    • 显示线圈网格
    • 显示图表轴
    • 显示控制尺寸
    • Hide Knitting Ranges
    • 显示编织区域
    • 显示编织区域（纱线颜色）
    • Show Knitting Ranges (CA color)
    • 显示标记点的符号
    • 利用键盘上的箭头键移动所选对象（模型点，标记点，编织区域或模型元素。其中模型点必须为线圈输入模式）

Adjusting and Saving the User Interface as User Profile

You can position the tool windows and document windows of CREATE PLUS as desired and save it as user profile.

Profiles

  • 工具窗口布局
    : Default layout of windows provided by STOLL which is used for all new pattern projects.
    • Creating Private Tool Window Layout
      : 默认窗口布局 from STOLL will be overwritten.
    • Resetting the private tool window layout to the STOLL tool window layout.
  • 项目布局
    Due to modifying the default window layout, these window positions will be saved as project layout in the *.spf file as 项目布局 when closing the CREATE PLUS. They will be used within this pattern project only.
  • Additional Private Profiles
    Change position of windows and save them under a profile name.

Positioning tool windows and document windows, saving and loading them:

Display and selection of the profiles at the top right of the main window

Creating a single additional window layout only (project-related):

    1
    Position windows as desired.
  1. The display is automatically switched from 默认窗口布局 to 项目布局.
    2. 2
    Close or exit the CREATE PLUS main window.
  1. The positioning of the windows is saved as 项目布局 within the pattern project and will automatically be used when opening the pattern project.

: Keep an eye on the current layout setting when closing the CREATE PLUS!

Creating more additional window layouts:

    1
    Position windows as desired.
  1. The display is automatically switched from 默认窗口布局 to 项目布局.
    2. 2
    Click the button next to the selection list.
  2. The 布局管理 dialog box appears.
    3. 3
    Enter a name under 新布局：.
    4
    Click the 保存 button.
  3. All saved layouts are listed under Window Layout.
    4. 5
    Click the 关闭 button.
  1. Profile is saved and available for further projects.

You can create several different user profiles for the CREATE PLUS following this procedure.

Selecting Saved Profiles:

  1. 项目布局 is selected.
    1
    Open the selection list with the button.
    2
    Select the desired profile from the list.
  1. Selected windows layout is shown.

Deleting or Renaming Saved Profiles:

    1
    Open the 布局管理 dialog box with the button.
    2
    Select the desired profile from the list.
    3
    Open the context menu with RMB ->delete the profile by .
    - or -
    Change the profile name by 重命名

Create and save a private default window layout:

  1. 项目布局 is selected.
    1
    Position windows as desired.
    2
    Select the 文件 tab of the main window.
    3
    Click the 使用当前窗口布局作为默认窗口布局 button under 选项 / 常规 at 布局.
  1. The arrangement of the windows when closing the program is saved as default window layout and the STOLL default of the tool window layout will be overwritten.
    2. 4
    Close the 选项 dialog box with OK.

Resetting the Private Default Layout to STOLL Default Layout:

    1
    Select the 文件 tab of the main window.
    2
    Click the 重置布局信息 button under 选项 / 常规 at 布局.
  1. The arrangement of the windows is set to the STOLL default window layout.
    2. 3
    Close the 选项 dialog box with OK.
Procedure with Window Layout

Define the Behavior of Document Windows:

  1. A pattern project is created.
    1
    Select the 文件 tab of the main window.
    2
    Make the desired settings under 选项 -> 常规 -> 文档窗口布局.
    3
    Close the 选项 dialog box with OK.
  1. The 选项 dialog box gets closed and the setting applied.

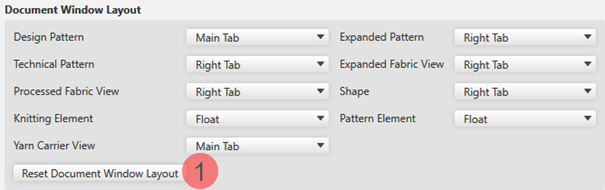

You can define the behavior of the listed document windows as follows:

主选项卡

The selected document window is added as an additional window (register) to the other windows that are set as main windows.

右选项卡

The selected document window is arranged as a new main window to the right of the open main windows.

浮线

The document window is opened floating and can be positioned as desired.

重置文档窗口布局

The existing document window layout is restored to the STOLL document window layout.
