Step by Step to Pattern-3

  1. A pattern project with one pattern and the desired settings is created.
    1
    Open 编织资源管理器.
    2
    Select the knitting element 挑孔,线圈 v to draw in 编织资源管理器 under 结构模块 -> 默认 -> 挑孔 .
    3
    Draw the desired structure.

Presentation in yarn color

Presentation in module color

    4
    Select a structure in the desired width and height.
    5
    Create from selection:
    6
    Draw-in the pattern element with the help of the center of the pattern field several times to the left and right into the basic pattern.
    7
    Then, in 编织资源管理器 under 结构模块 -> 默认 -> 基本编织模式 select the knitting element 1x1 珠地 to draw.

: For working with PTS - different stitch length index in one technical row - the STOLL knitting elements 结构 from the Knit Explorer already have different stitch lengths allocated. The stitch lengths are allocated in the control columns, as well as needle-exactly to the needle action.

    8
    Activate 应用线圈长度in the cursor attributes.
    9
    Draw the 1x1 珠地 knitting element in the design pattern.
  1. The needle-exact stitch length from the knitting element will be entered in the design pattern.

Presentation of the design pattern in pattern color

Presentation of the design pattern in stitch length (NPJ)

  • There is no stitch length allocated in the grey areas.
    This means that the standard stitch lengths from the control columns are used here.
  • In the areas with drawn-in stitch lengths, the standard stitch lengths are overwritten and the new stitch lengths are used.

Result:
Different stitch lengths are available in a single technical row.
= Working with PTS.

:
When positioning the knitting element 1x1 珠地 be sure that it is positioned correctly to 起头,1x1.
This means that the structure 1x1 from the start without racking has to continue running in the structure of the 1x1 half cardigan.

Apply stitch lengths from knitting element to the control columns when drawing:

Condition:
The knitting element 1x1 珠地 has different stitch length entries in the control columns and as in the basic pattern.

  1. Select a knitting element.
  2. : The Cursor Attributes window with the currently available attributes appears.
  3. Via the 应用控制列 button make the desired setting to draw:
  4. - Activated
    Stitch lengths from the knitting element are entered in the control columns.
  5. - Deactivated
    Stitch lengths from the knitting element are not entered in the control columns.
  6. Draw the knitting element in the design pattern.
  7. : The stitch length is present in the control column and is therefore valid for the entire technical row. No Power Tension Setting (NPJ) is created.

Apply stitch lengths from knitting elements exactly to the needles when drawing into the design pattern:

Condition:
In the knitting element 1x1 珠地 there are entered different stitch lengths in the needle actions.

  1. Select a knitting element.
  2. : The Cursor Attributes window with the currently available attributes appears.
  3. Via the 应用线圈长度 button make the desired setting to draw:
  4. - Activated
    Stitch lengths from the knitting element will be applied to the design pattern.
  5. - Deactivated
    Stitch lengths from the knitting element will not be applied to the design pattern.
  6. Draw the knitting element in the design pattern.
  7. : Now there are different stitch lengths available for PTS in a single technical row.

Draw stitch lengths from the table needle-exactly into the design pattern:

Condition:

  • In the design pattern there are drawn different structures by areas.
  • The standard stitch lengths are entered in the control columns and .
  1. In the status bar of the design pattern, switch from 花型颜色 to 线圈长度.
  2. Open the selection list in the 起头 ribbon under 参数 at 工具窗口 and select the 线圈长度 (NP) tool window.
  3. : The 线圈长度 (NP) tool window appears.
  4. Select the 默认 tab.
  5. Select the desired stitch lengths with the CTRL key in the and columns additively.
  6. : The stitch length for the front and rear needle bed are at the cursor.
  7. Draw stitch lengths in the desired structure area needle-exactly into the design pattern.
  8. : Now, different stitch lengths for PTS exist in one knitting row.

Result:

1

Grey = no colored entry of a stitch length

In these areas, the default stitch length from the control columns and are used.

: The default values must not be deleted from the control columns.

2

Colored entry for further stitch lengths in one pattern row

    10
    To create a project-related lined shape, select the 模型 tab in the tool window.
    11
    Open the context menu with RMB and select 创建 M 码新模型....
  1. The 新线模型 tool window is opened.

Input Format

线圈

Entry in the table of the lined shape

  • Height by stitches (stitch rows)
  • Width by stitches (wales)

: The stepping is converted based on the specification of the steps.

Entry in the table of the lined shape

  • Height of step by stitches (stitch rows)
  • Width of step by stitches (wales)

手摇机编织(转)

Entry in the table of the lined shape

  • Height by courses (1 course corresponds 2 stitch rows)
  • Width by stitches (wales)

Rules for widening with hand knitting

Knitting before widening following the start

Widening before knitting following the start (default setting)

从图片创建模型

No images will be used

Use image as template

注释

Information about the shape

    12
    Make the desired entries:
    13
    Confirm with the OK key.
  1. The new lined shape (basic shape) is graphically displayed in the 模型 tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu 文件 -> 选项 -> 线模型 -> 新建线模型选项

Document window New shape xx [size x]

1

模型编辑 ribbon

参数 Ribbon Group

编织区域颜色

Create new knitting areas and display existing knitting areas

线圈密度

Create new stitch density and display existing stitch density

线圈长度 (NP)

Display of the 线圈长度 tab in the Setup-Editor

属性 Ribbon Group

线表

Display of the line table for entering the shape data

线属性

Display of the line properties (attributes) of a selected shape edge

标记点属性

Display of the marking point properties (attributes) of a selected marking point

模型元素

Display of the shape element properties of a selected shape element

  • 开领 / 填充的开领
  • 楔形
  • 模型内

线视图

Graphical display of a selected shape edge

2

Status bar in the document window for shapes

显示对称轴

显示线圈网格

显示图表轴

显示控制尺寸

显示标记点的符号

Hide Knitting Ranges

显示编织区域

显示编织区域(纱线颜色)

Show Knitting Ranges (CA color)

利用键盘上的箭头键移动所选对象(模型点,标记点,编织区域或模型元素。其中模型点必须为线圈输入模式)

    14
    To create a lined shape based on the displayed rectangle in the ribbon 模型编辑 under 属性, click the 线表 button.
    - or -
    Use the graphic displayed in the New shape xx [size x] document window.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

    15
    Open 线表 in the ribbon.
  1. The table 线模型 with the values of the rectangular shape is displayed.
  2. 16
    Insert new shape lines in the table and enter the desired values for the basic shape.

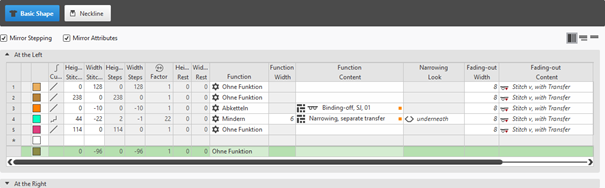

Example: Lined shape for Pattern-3

Basic Shape: Front

1

  • Display of the available shape elements
    • 基本模型 (exists always)
  • Adding a new symmetric or asymmetric shape element
    • 开领
    • 填充的开领
    • 楔形
    • 模型内

2

对称收放针

Creating a symmetric shape of shape element

: The line tables of the left and right are identical.

镜像属性

Attribute changes carried out in the line table at the left and right.

Do not mirror attributes

Attribute changes are carried out in the line table at the left or at the right.

Do not mirror stepping

Creating an asymmetric shape / shape element

: The line table can be edited differently at the left and at the right.

3

显示所有属性

显示子行

隐藏子行

4

Display color for main lines and sublines of a selected line in the 线视图

5

曲线

  • Display of the main line with the selected curve type
  • Modification of the curve type

6

Columns for entering the values for the lines of the lined shape in the input format

  • 线圈
    • Height by Stitches
    • Width in stitches
    • Height in steps
    • Width in steps

: From the entered values and based on the curve type, the value factor, height of rest and width of rest is calculated.

7

Columns for the input of line attributes

: The entry in the Function column is automatically determined based on the values for one line.

8

Specification for working with PTS (NPJ) for one line (shape edge)

  • Value for the front and / or rear needle bed
  • Width by Wales

Insert shape line in a shape element:

: The shape lines are inserted symmetrically with both methods by default.

  • In the Line Table:
    Entry of a positive value: Widening and upwards
    Entry of a negative value: Narrowing and down
    • Enter the desired values in the last table line with the * symbol. When confirming the input with the Enter key a new table line is inserted.
    • Select a row -> open the context menu with RMB -> select 添加主行.
    • Select a row -> open the context menu with RMB -> select 上添加表行.
      - or -
      Select 下添加表行.

: Only in the line table it is possible to create an asymmetrical line shape by deactivating 对称收放针.

  • In the document window
    • Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> 插入模型线 .

Changing line properties of a shape line

  • Global project-related setting of the line properties via 配置 / 所以模型 tab
  • In the shape regarding a shape line

Changing Line Properties:

  • In the Line Table
    • Direct change of a line property in the corresponding column of the table
    • Select a line in the table, open the tool window with the 线属性 button and make the desired entries.
  • In the document window
    • Position the cursor on a line of the displayed graphic, select the context menu 线属性 and make the desired entries in the tool window.

1

Modification of the curve type

2

Modification of the function of a shape line

  • 没有功能
  • 收针
  • 放针
  • etc.

3

Modifications for the shape line with the 收针 function

4

Modifications of the 边缘组织 attribute for a shape line

5

Specification for a shape line for working with PTS in the shape edge

6

Display of the markings that are assigned to a shape line.

应用标记到对称线

Applies the line-bound markings of the selected line to the line on the opposite.

: Perhaps existing markings of the opposite shape line are removed.

Changing curve type:

  • In the Line Table
    • In the 曲线 column open the context menu with the RMB and select the desired curve type.
    • Select line -> with the 线属性 button open the 线属性 and select the desired curve type at 收放针曲线类型
  • In the document window
    • Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> 调节收放针类型....
  1. Select the desired 收放针曲线类型 in the selection menu.
  2. When selecting the curve type 稳定剩余 via·修改收放针, specify the desired values for Height and Width of the steps.
  3. : The window for entering specifications is displayed according to the selected curve type.
  4. Transfer the entry to the shape line with the 重新计算 button.
  5. : The shape line is displayed in the graphic and in the line table as well.
    17
    Allocate the desired attributes to the new shape lines:

Binding-off of the left external edge of the shape

Binding-off of the right external edge of the shape

: The shape lines for binding-off at the external edge of the shape are at the same height in the line table.
During the technical processing these shape lines binding-off are moved regarding the height according to the carriage direction.

  • Height until binding-off even numbered: Binding-off right before left
  • Height until binding-off odd-numbered: Binding-off left before right

: The knitting sequence when binding-off depends on the carriage stroke!
The height (number of knitting rows) until binding-off is as desired, since the binding-off edges are moved in height by the technical processing according to the carriage direction.

    18
    In the line table, position the cursor in the area next to the 基本模型 button -> open the context menu by RMB -> select 添加新模型元素....
    19
    In the selection menu select the desired shape element 开领 -> symmetrically.
    20
    Create the shape lines of the new shape element the same way as the basic shape.
  1. The newly created shape element is displayed in the graphic and in the line table as well.

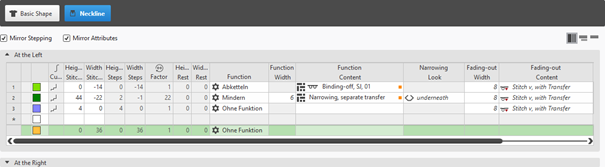

Shape Element Type: Neckline symmetric

Positioning of a shape element in the basic shape

:
Every shape element gets a link (anchor) to a shape point in the basic shape during its creation.

Condition:

  • A basic shape with a shape element 开领 is created.
  1. Position the cursor in the shape element.
  2. Reposition the shape element with the LMB pressed.
    - or -
    Move the shape with the arrow keys of the keyboard.
    - or -
    Open the coordinate display in the shape element double-clicking LMB and enter values.
  3. : The anchor point becomes visible with its X and Y coordinates in the 开领 shape element.
  4. Change the positioning if necessary.

Possibilities for editing an anchor via the context menu

编辑

Tool window for manually changing the values of X and Y coordinates.

拆分定位点

Ungroup the grouped anchor in one anchor for X coordinate and one for Y coordinate, to be able to anchor one anchor with another shape element.

: An anchor contains both values for the X and Y coordinates by default.

    21
    Allocate the desired attributes to the new shape lines:

Variants of necklines

  • Neckline start with only one needle (shape odd-numbered in the total width)
  • Neckline start with 2 needles (shape even numbered in the total width)
  • Neckline start with more than 2 needles -> Binding-off at the start

: Knitting element V领开始,交接处 is linked with the marking point of the shape element Neck.

Graphic presentation of the neckline start

属性

  • Marking point (blue) with knitting element V领开始,交接处

Adjusting the position of the Start V-Neck Crossover knitting element:

: Attention:
If a knitting element V领开始,交接处 is connected to a shape line, then the knitting element at marking should be removed.

  • In the Line Table
    • Select a line in the table.
      Open the tool window with the 线属性 button and make the desired entries.
  • In the document window
    • Position the cursor on a line of the displayed graphic and open the context menu.
      Select 线属性 and make the desired entries in the tool window.
  1. Select the desired shape line.
  2. Open the tool window via 线属性.
  3. Make the following settings in the 标记 section:
  4. - X / Y: the positioning of the selected knitting element
  5. - Anchor Point: at which point of the shape line (start/end) should the knitting element be added
  6. - Knitting Element: specify desired knitting element
  7. - Orientation: specify desired point in the knitting element (reference point) for the positioning
  8. Make further changes if necessary.
  9. : The knitting element should be placed at the left shape line (endpoint), as the binding-off is done from left to right.

1

Positioning of the V领开始,交接处 knitting element with

  • X value: 0
  • Y value: 0
  • Orientation: Top left - upper left corner

: Due to the拷针 shape symbol, the knitting element is not visible in the pattern with pending shape.

2

Positioning of the V领开始,交接处 knitting element with

  • X value: 0
  • Y value: -1
  • Orientation: Top Left

3

Positioning of the V领开始,交接处 knitting element with

  • X value: -11
  • Y value: -1
  • Orientation: Top Left

: The knitting sequence when binding-off always depends on the carriage stroke!

Binding-off in the carriage stroke to the right >>

  • Height until binding-off even numbered

Binding-off in the carriage stroke to the left <<

  • Height until binding-off odd-numbered

Split the bind-off in the center

  • Entry of the shape symbol 开领点 over 2 knitting rows

: In which sequence the sides are bound-off depends from the number knitting rows until the separation

Draw-in the separation manually in the Finishing Layer:

  1. Shape is positioned in the design pattern.
  2. 模型符号 is enabled in the view of the design pattern.
    1
    Via the layer user control, switch from 编辑基本层 to 编辑结束层.
    2
    In the tool window 织针动作 -> 模型符号 -> select symbol 开领点.
    3
    Insert manually in the Finishing layer the symbol 开领点 over 2 knitting rows.
    4
    Position starting module of the neckline start related to the symbol .
  1. : The starting row of the neckline will be bound-off from the center.
    22
    In the tool window Shapes select the created shape with LMB.
    23
    Open the context menu -> 定位模型 -> select Pattern name.
  1. The shape is floating in the basic pattern.
  2. 24
    Enable the button of the document window.
    25
    Position the shape on the basic pattern via .
    26
    Check shape lines, attributes and if desired make corrections.
    27
    If necessary, allocate a sub-color to the left side of the neckline to add other attributes via the 颜色参数 table.
    28
    Start the 工艺 处理:
    Show symbol view after technical processing.
    29
    Generate Sintral.
    30
    Start the Sintral 检验.
    31
    提取 the knitting program.
  3. A program for the knitting machine will be created: CMS530.Pattern-3.zip.
  4. Load knitting program into the machine.

: The extracted file "CMS530.Pattern-3.zip" can be loaded onto the machine with an USB stick or via Ethernet.
