1: Open 查找和替换 dialog box:

A training pattern is available.

2: If desired, select the cursor attributes for Find and Replace before opening the dialog box.
: Without selection, the dialog box will appear without entries.

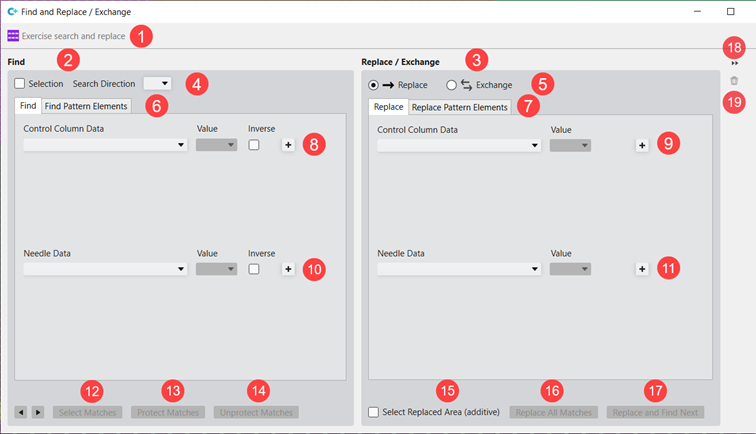

3: Open the 查找和替换 dialog box with the button.

The dialog box will appear accordingly with or without entries.


1	Pattern name, where the Find and Replace dialog box is active.
2	Specified search criteria Find in Control Columns Find in the needle data (design area)
3	Specified criteria for insert With 替换 With 互换
4		Search in the entire design
		Search in a selection : Selection has to be generated.
	Search Direction		Preset of the search direction 向上 From top to bottom 下 From bottom to top
5	Selecting the desired action
			替换
			互换
6	Tabs of the 查找 area
	查找		Selection while searching for Data in the control columns : Only possible with permanently entered data (not default entries) Data in the pattern
	搜素花型元素		Selection while searching for pattern elements
7	Tabs of the 替换 / 交换 area
	替换		Selection for replace or exchange Data in the control columns : Only possible with permanently entered data (not default entries) Data in the pattern
	替换花型元素		Selection for 'Replacing / Exchanging' pattern elements
8	Settings of the search criteria in the 查找 tab for searching in the 控制列数据
9	Settings of the criteria for insert in the 替换 and 互换 tab for replacing in the 控制列数据
10	Settings of the search criteria in the 查找 tab for searching in the 织针数据.
11	Settings of the criteria for insert in the 替换 and 互换 tab for replacing in the 织针数据.
12	Select All Matches : from one position to the next position, to select individual positions
13	Protect Matches
14	Unprotect Matches
15		Matches are replaced but not selected
		All matches are replaced and selected, to then add this selection to an existing selection (in addition)
16	Replace all matches in one step
17	Do not replace or replace matches position for position.
18		Opening of the 列表处理 view
		Closing of the 列表处理 view
19		Deleting of all criteria
