Step by Step to Pattern-5


1	Color stripe 1	Yarn Color #3 带翻针前板线圈
2	Color stripe 2	Yarn Color #4 Links-Links: Change in rows from 带翻针前板线圈 and 带翻针后板线圈 Left + right selvedge: per 2x 带翻针前板线圈
3	Color stripe 3	Yarn Color #6 带翻针前板线圈
4	Color area	Yarn Color #1 阿兰花花型元素4 pattern element on reverse jersey Left + right selvedge: per 2x 带翻针前板线圈

3: Place the cursor in the control column and with RMB -> open the context menu.

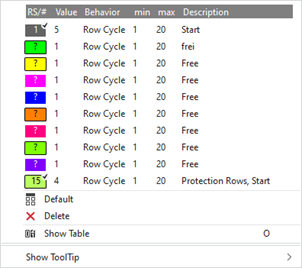

4: Select available cycle counter color+(?) directly in the context menu and draw into control column
- or -
using 显示表 open the 循环计数器 tool window in the context menu.

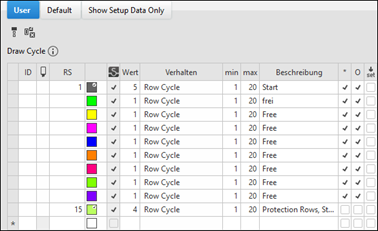

: In the table, the cycle counters in use (from knitting elements) and the ones to be used (available) are displayed before 工艺处理.


ID	Running numbering and sorting of newly created entries
	Selecting the cycle counter to enter in the 循环（RS） control column
RS	Input and display of the index for the indirect (RSn =1-39) or direct (D) cycle counter allocation
颜色	Display of the color to enter in the 循环（RS） control column
值	Number of repetitions with 行循环 selection Specification of the validity with 可开关循环（功能） selection
表现	行循环	Definition of a repetition of knitting rows (simple cycle) Definition of a repetition with repetitions of knitting rows (nested cycle)
	可开关循环（功能）	Definition of cycles for the length control with different sizes (set of sizes for the fabric length)
	: All other options under 表现 are definitions, that are used in the 起头 knitting elements.
最小	Minimal repetition factor Definition of the range of validity for 可开关循环（功能）
最大	Minimal repetition factor Definition of the range of validity for 可开关循环（功能）
说明	About the use of the cycle in the fabric

6: Select the desired available entry (color) from the 用户 tab and enter in the control column.

Simple cycles	Nested cycles

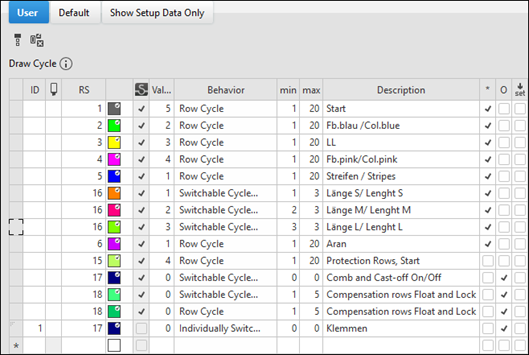

The procedure for multiple entries in control columns:


RS	Value	Behavior	min	max	Description

RS6	x	行循环	1	20	Repetition of the Aran diamond (as desired)
RS16	1	可开关循环（功能）	1	3	Knitting Rows for Size S
RS16	2	可开关循环（功能）	2	3	Knitting Rows of Size S + Knitting Rows for Size M
RS16	3	可开关循环（功能）	3	3	Knitting Rows of Size S + Knitting Rows Size M + Knitting Rows for Size L
: When working with 可开关循环（功能） it is necessary that a cycle counter e.g. RS16 is used. The cycle counter is freely selectable.

10: If necessary, open the 导纱器视图 via 导纱器 in order to position the yarn carriers on the rails.


RS1 – RS6	Cycle counter for the length of the basic pattern
RS16	Cycle counter for the length control for the sizes S to L

RS15	Cycle for the extension of the protection rows in the knitting elements from the 起头 directory
RS17	Comb on / off RS17=0: Working with comb
RS18	Cycle for row compensation with the 起头前编织带入，浮线和锁定(1 片) technical modules

: The following cycle counters (RS) are added automatically to the 工艺处理 in the table because of the use of the corresponding knitting elements.

RS1	Cycle for the length control of the Start knitting element
RS13	Use of the Sintral function FF-Trans when knitting without comb and clamping Without Comb Without Clamping Knit Without Comb With Clamping : Marking of the color in the 循环计数器table with the 'S' symbol
RS14	Cycle for lengthening when using special knitting elements from 保护行，带脱圈
RS15	Cycle for the extension of the protection rows in the knitting elements from the 起头 directory
RS17	Comb on / off RS17=0: Working with comb RS17=1: Working without comb
RS18	Cycle for row compensation with the 起头前编织带入，浮线和锁定(1 片) or 起头前编织带入，浮线和锁定(2 片) technical modules
RS19	IF decision for knitting elements from the 起头 directory Without elastic thread (RS19=0) With elastic thread / Plated with elastic thread (RS19=1)
RS20	Cycle for lengthening the knitting with residual yarn until the belt take-down grasps the fabric
Verwendung von Zähler #
: Counters # are saved momentarily in the Stoll template and when calling up in the 循环计数器 control column are written into Sintral.

: In the Sintral 检验 tool window -> 计数器 -> Set cycle counter (RS) the cycle counters can be set to be checked and be displayed with the help of the graphic view.
