Working with the knitting element type 'Color Arrangement'

Using Color Arrangements

With the help of one or more Color Arrangements you are able to manually influence the knitting process in a pattern by area or in the entire pattern.
To use Color Arrangements it is necessary to draw the areas in the pattern with different pattern colors (yarn colors, magazine colors or yarn carrier colors).
Based on the different colors you are able to influence the knitting technique of these areas using the Color Arrangement.

Options for generating a new Color Arrangement

Example to explain working with a Color Arrangement

Behavior of a Color Arrangement using the example of a pattern with 3 color stripes

Steps to create a Color Arrangement

  1. A pattern project is opened.
    1
    Draw a design pattern with the necessary colors from the different tables:
  • 纱线颜色
  • 库颜色
  • 导纱器颜色

: E.g. 3 color stripes with any desired 纱线颜色

    2
    In the 花型行 control column, select the first 2 pattern rows.
    2. 3
    Position the cursor in the pattern area.
    4
    Open the context menu and select 选择 / 颜色排列.
    - or -
    Click directly the button in the ribbon.

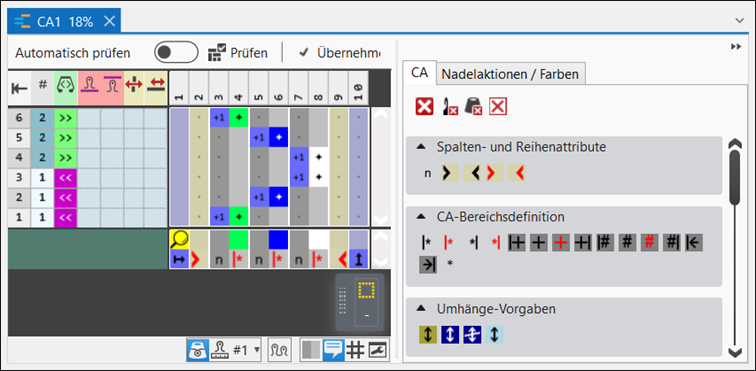

  2. The Color Arrangement Editor is opened displaying the 'Default knitting process for Intarsia' from the selected pattern rows.

Color Arrangement Editor

搜索区域

CREATE PLUS searches for existing colors in the selected pattern rows from left to right.
These colors will be entered as color segments with search colors in the search area of the Color Arrangement Editor.
The repetition symbol will be set below the search color by default, to repeat the information according to the information from the source row.

Processing Area

These colors plus the 透明 symbol will also be entered in the color columns of the color segments in a separate row by the corresponding search color in the Processing Area.
The 透明 symbol allows the CA to read the needle actions available in the source row.

The knitting process of the processing colors (= yarn carrier) corresponds with an Intarsia knitting sequence.
Each row is marked with the (+1) reference row number in the reference column.

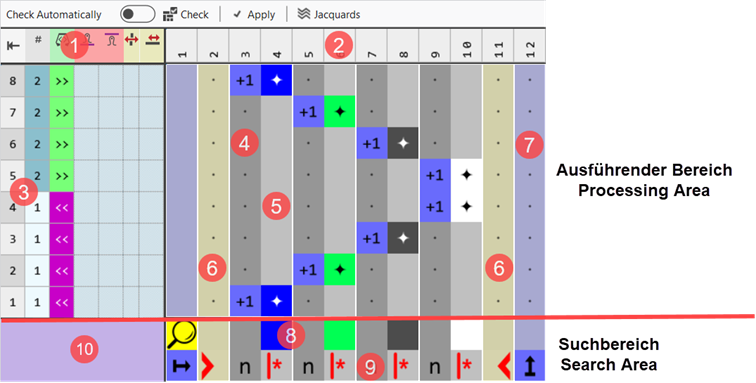

Color Arrangement Editor

Designation of the rows and columns in the Color Arrangement Editor (CA)

1

Control Columns

: All control columns are available

2

Column bar with numbering

  • for selecting columns

3

Row bar with numbering

  • for selecting rows
  • Control column data for pattern rows

Processing Area

搜索区域

4

Reference column with reference numbers

  • For Reference Rows
  • For Additional Rows

8

Search row with the search colors

5

Color column in the color segment

  • same colors as in the search area
  • plus symbol for 'transparent'

Example:

9

Column and Row Attributes

  • CA definition of areas (functions of the search colors)

6

Shape column

  • with Fully Fashion
  • With knit&wear

10

Color of the color entry in the control column

: Can be modified in the properties of the knitting element.

7

Column for defining a repeating of rows

自动检验

No automatic check regarding the correct structure of the created knitting element.

:

  • Start the manual check with 检验.
  • When closing the dialog box, an automatic check is carried out.

An automatic check is executed regarding the correct structure of the created knitting element.

:

  • The 检验 button is disabled.

检验

Button for the manual checking of the entries in the Color Arrangement

应用

Apply changes, without closing the editor.

提花

Open the 提花 tool window.
To display the Jacquards inserted in the design pattern.

Meaning and behavior of the reference row numbers in the reference column

The number in the reference column refers to a corresponding row in the source pattern (Design Pattern) or to an additional row.

Two possibilities of the reference row numbering:

  • Reference number for reference rows (blue symbols ) for the processing of source rows from the design pattern
    : all the information from the control columns is applied.
    • Working with numbers , , and
      : Due to the use of these numbers, during the repetition, the reference rows in the source pattern are automatically increased and processed. With the first application of a CA, the '+' symbol is suppressed.
      Notice:
      During the troubleshooting in the processed pattern it is difficult to find the correct reference row number.
    • Working with the numbers from to and bigger
      : The reference rows in the source pattern are set as a fixed value due to the use of these numbers. The rows in the source pattern are only incremented and processed through the repetition of the CA in the control column.
      Notice:
      During the troubleshooting in the processed pattern it is easier to find the correct, corresponding reference row number.

Content of Reference Rows

Properties and Behavior

With yarn color or yarn carrier color

Only color

Needle actions and modules will be read from the reference row (source row) of the basic pattern.

Color and needle actions (knitting)

Needle actions and modules from the reference row (source row) of the basic pattern will be overwritten by the needle actions drawn in.

Different color

Needle actions and modules will be read from the reference row (source row) of the basic pattern and knitted in the color drawn in.

Different color and needle action (knitting)

Needle actions and modules from the reference row (source row) of the basic pattern will be overwritten by the color and needle action drawn in.

Without yarn color or yarn carrier color

Not allowed

Behavior:

  • Data (needle actions and modules) will be read from the corresponding reference row of the basic pattern if no knitting needle action is present in a reference row (source row) of the CA.
  • The pattern parameter of the control column will be read from the reference row of the basic pattern if the knitting needle action is present in a reference row (source row) of the CA.
  • In reference rows in the CA with yarn color or yarn carrier color and the knitting needle action one automatic tuck binding will be entered to the neighboring color field.
  • Reference number for additional rows (pink symbol ) for the use of not knitting and / or knitting additional rows in the CA (no corresponding source row available in the design pattern)
    : No information from the control columns is applied.
    Exception: Stitch lengths at front and rear
    • Working with numbers , , and
      : When using these numbers there is no reference to a row from the source pattern. Using the '+' symbol, the additional rows are also increased and are inserted additionally after the corresponding source row.
    • Working with the numbers from to and bigger
      : When using these numbers there is a fixed reference to a row from the source pattern after which the additional row is inserted in the design pattern.

Content of additional rows

Properties and Behavior

With yarn color or yarn carrier color

You have to draw-in a knitting needle action if you enter additional rows with Yarn Color or Yarn Carrier Color into a color column.

Without yarn color or yarn carrier color

You have to draw in a Transfer, Cast-off or Loop sinking needle action (not knitting) if you enter additional rows without Yarn Color or Yarn Carrier Color into a color column.

Behavior:

  • The additional rows must contain needle actions as no data will be read from the reference row of the basic pattern (source pattern).
  • In additional rows with yarn color or yarn carrier color and a knitting needle action, no automatic tuck binding will be entered into the neighboring color field.
  • No pattern parameters will be applied to additional rows with yarn color or yarn carrier color and a knitting needle action.
    Exception: NP data.

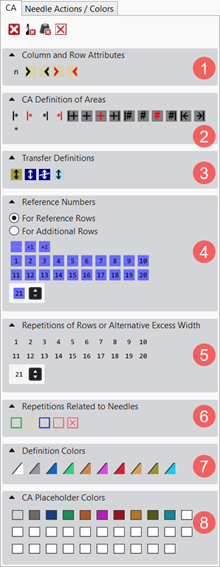

CA tab in the Color Arrangement Editor

Symbols to edit a Color Arrangement

1

列和行属性

相关列

Marking of the column for the reference numbers

左侧模型区域列

Fabric selvedge in the right of the fabric piece center

: Corresponds to #RM counter.

右侧模型区域列

Fabric selvedge in the fabric piece center left

: Corresponds to #LM counter.

左织片列

Left outer edge of a fabric piece.

: Corresponds to #L counter.

右织片列

Right outer edge of a fabric piece.

: Corresponds to #R counter.

2

颜色排列 区域定义

从左侧花型列开始重复

Repeat the selected column area within the color relative to the first pattern column.

向右重复

Repeat the selected column area starting from the left color field edge.

从右侧花型列开始重复

Repeat the selected column area within the color relative to the last pattern column.

向左重复

Repeat the selected column area starting from the right color field edge.

超出宽度，覆盖，从左花型边缘开始重复

Enter a overwriting additional column on the left relative to the first pattern column of a color area.

超出宽度，改写

Enter an overwriting additional column on the left and / or right of a color area.

超出宽度

Do not enter an overwriting additional column on the left and / or right of a color area.

超出宽度，覆盖，从右花型边缘开始重复

Enter a overwriting additional column on the right relative to the last pattern column of a color area.

Effect of excess width:
The color area will be widened up to shape edge at max.

Use:
Example for Intarsia binding at the color field edge

模型边缘超出宽度，覆盖，从左花型边缘开始重复

Enter a overwriting additional column on the left relative to the first pattern column of a color area at the shape edge.

模型边缘的超出宽度，覆盖

Enter an overwriting additional column on the left and / or right of a color area at the shape edge.

模型边缘的超出宽度

Do not enter an overwriting additional column on the left and / or right of a color area at the shape edge.

模型边缘超出宽度，覆盖，从右花型边缘开始重复

Enter a overwriting additional column on the right relative to the last pattern column of a color area at the shape edge.

Effect of 模型边缘的超出宽度:
The color area will be widened by the indicated column number beyond the shape edge.
Here, Outside shape is set to Within shape.

: Shape edges will not be moved, attributes will be widened.

左侧织物边缘

Fading-out at the left fabric selvedge by the drawn-in width .

右侧织物边缘

Fading-out at the right fabric selvedge by the drawn-in width.

重复行

For defining cycles in the column

: If there are to be defined several cycles in the CA, the repeating of rows can be marked visually also with defining colors. For neighboring cycles a defining color is mandatory as it defines the start and the end of the cycle.

3

翻针定义

转换模型的设置

Specify the pattern rows for transferring the narrowings and widenings

结构翻针设置

Specify the pattern rows for transferring the structures.
preferred or delayed

不允许转换结构

Specify the pattern row in which the transferring of the structure is not allowed

自动翻针的设置

Specify the pattern rows for auto transferring

4

基准号码

用于基准行

保留基准行号

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

增大基准行号 1

Edited reference row number will be increased by 1 for further processing.

: In the first row of the CA, the '+' symbol will not be executed, i.e. it corresponds to an entry of

增大基准行号 2

Edited reference row number will be increased by 2 for further processing, i.e. one pattern row is skipped.

to

Reference Row Number from 1 to 20

Selection of the reference row numbers for numbering the reference rows in the design pattern

Selection of further reference row numbers greater than 20

用于辅助行

Retain the number of additional row

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

Increase the number of additional row by 1

Edited reference row number will be increased by 1 for further processing.

Increase the number of additional row by 2

Edited reference row number will be increased by 2 for further processing, i.e. one pattern row is skipped.

to

Number of additional row from 1 to 20

Selection of the additional row number for numbering the additional rows in the Color Arrangement

Selection of further reference additional row numbers greater than 20

5

行重复或替代超出宽度

to

Repeating of rows or excess width 1 to 20

Numbers for defining

  • Repetition factor with repeating of rows
  • Definition when using the 'alternative excess width'

Repeating of rows or excess width 21 and higher

6

与织针相关的重复

区域开始

Select areas and define them according to the type of knitting element.

  • Binding-off by CA
  • Repetitions in a module

第一个重复

随后重复

区域结束

删除区域

Delete the marked areas

7

定义颜色

to

For visual marking of

  • Connecting points
  • Repeating of rows (cycles)
  • Jacquard colors in the Jacquard module type of knitting element

8

CA 占位符颜色

to

Use of the placeholder colors in the search area and in the processing area of a CA, to define the colors in both areas as 'transparent'.
This means that the colors that it is possible to draw the colors in the pattern at different positions.

: To be observed:

  1. Placeholder colors may not be used with other colors in the search row.
  2. Placeholder colors of the search row also allow the use of placeholder colors in the processing area.

    1
    Make the desired changes in the editor with the tools for Color Arrangements from the 颜色排列 and / or 织针动作 / 颜色 tabs.
    2
    Check the generated Color Arrangement on correct entries with the 检验： button.
    : The knitting procedure cannot be checked!
    3
    If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the 应用 button.
    - or -
    Close the tool window with button.
    4
    Close the prompt with the desired button:
  • Save: Color Arrangement is saved locally in the 颜色排列 tool window.
  • Reject: The changes will not be saved.
  • Copy: The changed Color Arrangement is saved as copy in the 颜色排列 tool window.

: The color of the Color Arrangement is entered into the first two rows of the 颜色排列 control column.

    5
    If necessary for the processing of multiple rows from the source pattern (design pattern), enter the generated Color Arrangement over the 颜色排列 control column into the desired area of the design pattern.
    : The data of the CA will be used in these marked rows.
    6
    Start the 工艺 处理.
  1. The Color Arrangement is expanded by the technical processing.
    2. 7
    Generate Sintral.
    8
    Start the Sintral 检验.
    9
    提取 the knitting program.
    10
    Load knitting program into the machine.
