Marking Point Properties

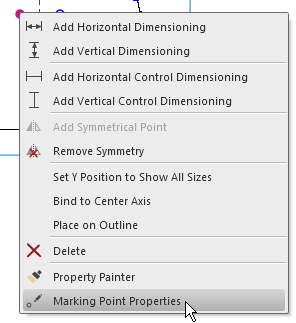

You can call up the Marking Point Properties tool window in the context menu of a marking point.
MarkingPointPropertiesMarking Point Properties
ShapeGradingView'Context_MarkingPointProperty
HowTo_Philosophy_SmallHow to call up the context menus

Marking Point Navigation

  • NavigateBackward
    Back
    Go to the previous marking point.

  • NavigateForward
    Next
    Go to the next marking point.

  • NavigateMirrored
    Opposite
    Jump to the opposite, mirrored marking point.

The properties of a marking point:

  • Knitting Element
    List Box White
    Open the picklist and select the knitting element for the marking.
    M1ImportModuleClipboard Inserts the reference to a M1plus module or to a M1plus module group.

  • Inserting Direction
    List Box White
    Open the picklist and select the desired orientation of the knitting element.

    • to the Left
      Insert a knitting element at the left side of a marking point.

    • to the Right
      Insert a knitting element at the right side of a marking point.

HowTo_Philosophy_SmallHow to Insert Markings for Buttons
