Add New Size

You can call up the dialog box with the Add Size Before... or Add Size Below.. function in the context menu of the view.

  • In the Fabric Pieces and Sizes tool window
    Example:
    SelectFabricPiece_SizeM_Selected
    F1-Help_Philosophy_smallSizes in the Fabric Pieces and Sizes tool window

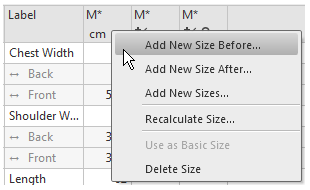

  • In the column header of the desired size in the Measure Table
    Example:
    GradingShape_ContextMenuSizeTable_AddSize

Elements in the dialog box:

  • Label
    TextBoxBlack
    Enter a name.
    Shows the new size among the existing ones.

  • Description
    TextBoxBlack
    Enter a comment about the size.

Grading

CheckBoxOnGrading
Calculates the new size according to the following settings.

  • Starting Size
    List Box White
    Calculate the measures based on the selected size.

  • CreateSmallerSizeReduce Starting Size
    The new size will be smaller as the starting size (e.g. M to S).

  • CreateLargerSizeIncrease Starting Size
    The new size will be larger as the starting size (e.g. M to L).

  • Resizing

    • RadioOnFactor
      Text Box + Spin_1.0
      Specify percentage.
      The value of the starting size will be increased (or decreased) by the percentage.

    • RadioOnAbsolutely (difference from the table)
      The values of the Dif column will be added (or subtracted) to the corresponding value.

CheckBoxOffGrading
Adds the new size with unchanged measures to the table.
Change the individual measures in order to get a different size.
