Set of Sizes with Structure

Season

Spring 2014

Style No.

00240

Customer

F&F Knitwear

Customer No.

1234

Article Description

Sweater with V-neck and moss stitch look

Salesperson

John Knitter

Editor

Tom Painter

Gauge

4

Basic Pattern

Single Jersey

Linking Gauge

7

Template

  • Set-in Sleeve with Shoulder GoreShoulderGoreShapeType

Sleeve Cuff and Body Waistband

  • 2x1 Start

Neckline

  • V-neck

  • 2X1 Collar

Basic Pattern

  • Single Jersey

Specifications

  • Shaped Waist

  • Moss stitch area over chest and shoulders

  • Sizes S, M, L, XL

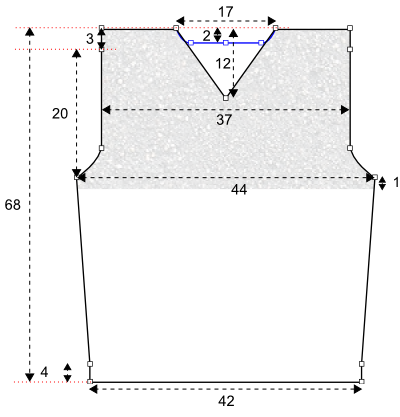

Measures_Body

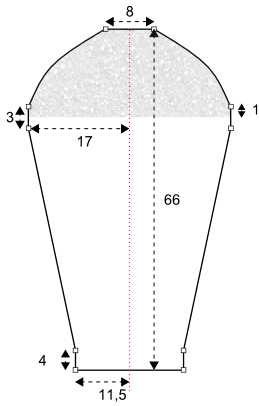

Measures_Sleeve

Dimensions and Differences for Size M

Dimension

cm

+/- cm

Length

68

2

Shoulder Width

37

1

Chest Width

44

4

Shoulder Drop

3

0

Neck Drop at the Front

15

2

Neck Drop at the Back

2

0

Neck Width

13

1

Collar Length

3,5

0

Body Width at the Waistband

42

4

Sleeve Width at the Cuff

11,5

0,1

Sleeve Length

66

1

Width at End of Sleeve

8

1

Armhole Drop

20

1

Upper Sleeve Width

17

1

Without Widening in the Sleeve

3

0

Waistband Height of the Body

4

0

Cuff Height

4

0

Determined Stitch Densities:

Reference Value: 10 cm x 10 cm

Width (stitches)

Height (rows)

Basic Pattern

21

28

Sleeve Cuff and Body Waistband

55

30
