S-curve

How to define a S-curve at the sleeve armhole:

• The dimensioned shape is opened in the Dimensioning View .
• The startpoint and endpoint of the armhole are dimensioned horizontally and vertically.

1. Open the context menu for the left diagonal shape line armhole at the sleeve.

2. Select the Line Properties.
• The Line Properties tool window appears.
3. Activate Show Line Preview.

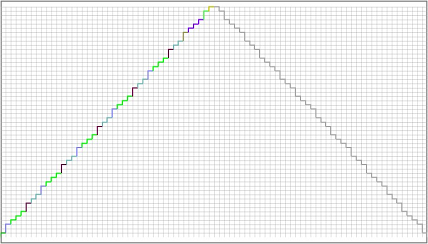

• The selected shape line and the mirrored shape line appear in the line preview on the right.

4. Go to the Stepping Parameters group box.
5. Select the S-curve option in the Stepping Kind list box.
• The detail view updates.

6. Select the value 2 in the Min. Step Height edit box.
• The detail view updates.

7. Select the value 2 in the Step Width edit box
8. Select the even-numbered option in the Stepping in the Height list box.
9. Select the value 4 in the Min. Height at the End of Line edit box.
• The detail view updates.

10. Activate the Binding-off at Line Foot check box.
• The Percentage of the Line Width edit box appears enabled.
11. Select the value 15 in the Percentage of the Line Width edit box.
• The detail view updates.

• The Binding-off entry appears in the Function column of the line S. 1.
12. Click on the line ID M of the main row in the Line table.
• The attributes of the M line appear in the group box at the bottom.
13. Go to the Attributes section.
14. Select the Narrowing, above Stitch ^ / underneath Stitch v, combined transfer module in the list box of the Narrowing group box.
15. Select the value 4 in the Width edit box.
16. Keep the underneath option in the Look list box.
• The steppings of the sleeve armhole form an S-curve.
