Line Properties

The title of the tool window shows the following attributes of the line:

  • Current size

  • Current fabric piece

  • Current side of the line referring to the endpoint

You can call up the Shape Line Properties dialog box in the context menu of a shape line.
ShapeLinePropertiesShape Line Properties
ShapeGradingView_Contextmenu_LineProperties

Example: Line Properties of Size M – Sleeve - Left

The dialog consists of the following areas:

Line Navigation

  • NavigateBackward
    Back
    Switch to the previous line.

  • NavigateForward
    Next
    Switch to the following line.

  • NavigateMirrored
    Opposite
    Switch to the opposite, mirrored line.

  • CheckBoxOnShow Line Preview
    Shows the current line in details to check the stepping.

  • Length of the shape line:
    Shows the length of the current shape line approaching the stepping.
    The length will be calculated by the quantity of stitches.

Stepping Parameters

Stepping KindList Box White
Select the settings for the stepping kind.

The selected stepping kind and the line function determine the other options:

Line Height Calculation

Line Height CalculationList Box White

  • undefined

  • Total height of the line with devider

  • End row of the line with devider

The calculation of the height determines the divisibility of the quantity of pattern rows

Divider TextBox+Spin_1
Enter a value by which the height should be divisible.
Example:
2 results in even-numbered pattern rows
3 results in a height of the shape line which can be divided into steps of three.

OffsetTextBox+Spin_1
Enter a distance at which the height calculation starts

Stepping in the Height

Stepping in the HeightList Box White

  • undefined

  • Steps on even-numbered rows

  • Steps on odd-numbered rows

  • Even-numbered rows at the left, odd-numbered rows at the right

  • Odd-numbered rows at the left, even-numbered rows at the right

Step WidthTextBox+Spin_1
Set the width of the steps and allow binding-off.

Min. Step HeightTextBox+Spin_1
Set the minimum height of the steps.

Min. Step HeightTextBox+Spin_1
Specify the minimum height of the last step at the end of the widening.

Binding-off at Line Foot

CheckBoxOnBinding-off at Line Foot
Allow binding-off the horizontal area at the line foot.

  • Line Width by StitchesTextBox+Spin_0
    Specify the part of the horizontal line for binding-off.
    Example for a step width of 4:
    LineFoot_Bind-off_StepWidth4

  • CheckBoxOn Protect Value
    Sets a fixed binding-off width independent to grading and to the width of the shape line.
    CheckBoxOff : The binding-off width will be widened or reduced accordingly from size to size.

Starting Width at the Line Foot

CheckBoxOnStarting Width
Allow widening the horizontal area at the line foot.

  • StitchesTextBox+Spin_0
    Specify the part of the horizontal line for widening.
    Example for a step width of 4:
    LineFoot_Widening_StepWidth4

  • CheckBoxOn Protect Value
    Sets a fixed width at line foot independent to grading and to the width of the shape line.
    CheckBoxOff : The width at the line foot will be widened or reduced accordingly from size to size.

Settings and Deviations

Preset values, achieved values and deviations over the whole stepping will be displayed in case of a user defined stepping.

  • Stitch rows for the height in vertical orientation:

    • Y Target

    • Y Actual

    • Y Deviation

  • Wales for the width in horizontal orientation:

    • X Target

    • X Actual

    • X Deviation

  • Change values individually or add steppings in order to achieve the endpoint without deviation.

How to Change the Stepping of a Line

Line Table

  • The columns of the line table and the context menu correspond to the following properties

    • Basic Type of Shape

    • Selected Options

    • Selected Kind of Stepping

  • With the context menu Show Properties of the D row, you activate or deactivate together the columns for the functions.

The columns of the Line table:

Line ID

  • D = Row with default settings

  • M = Main Line

  • S.n = Sub-line with consecutive numbering

Index Color
Identification color of the line

cm

  • Height
    Height of the shape line by centimeters

  • Width
    Width of the shape line by centimeters

Stitches

  • Height
    Height of the shape line by stitches

  • Width
    Width of the shape line by stitches

Inch

  • Height
    Height of the shape line by inches

  • Width
    Width of the shape line by inches

Steps

  • Height
    Height of the stepping by stitches

  • Width
    Width of the stepping by stitches

Steps (hand-knitting)

  • Height [Courses]
    Height of the stepping by courses

  • Width
    Width of the stepping by stitches

Factor

  • Repetitions of the step
    RegularFactorRow

  • Repetitions of the step by courses (hand-knitting)
    HandKnittingFactorTour

  • In the context menu of the cell you can protect the factor against automatic editing (e.g. preference point).

    • Set Value

    • Free Value

Group Factor

  • GroupFactorLineAttrib
    Repetitions of the grouped lines or sub-lines.
    Example: 4 sub-lines with 3-fold repetition
    GroupedShapeLines4by3

Rest

  • Height
    Remaining height of the stepping by stitches

  • Width
    Remaining width of the stepping by stitches

Function
Select function and allocate it to the shape line.

  • Without Function

  • Goring

  • Narrowing

  • Multi-step Narrowing

  • Binding-off

Width (of the function)
Width of the shape edge by stitches
The selected function will be done with this quantity of stitches.
E.g. narrowing by 6 stitches.

Attributes

Attributes

Gore

CheckBoxOnWith Knitting-off Rows

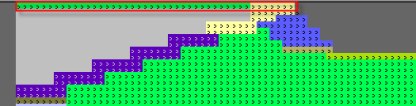

M1plusView_SchoulderGore_Knit-off

Options...

With the active check box you can open the Knit-off Gore Options dialog box
Knit-off Gore Options (dialog box)

  • Narrowing
    List Box White
    Allocate the knitting element for narrowing in this shape line.
    The knitting elements of the Narrowing folder and its subfolders are offered.

    • The standard module is represented in italics.

  • Width (cover width)
    TextBox+Spin_1
    Specify number of stitches that are covered

    • 1 to 6 stitches

    • The standard value 6 is represented in italics

  • Look
    Determine the appearance of the narrowing stitches

    • NarrowLookAboveabove
      The narrowing stitches lie on the basic pattern

    • NarrowLookBelowunderneath
      The basic pattern lies on the narrowing stitches

Fade-out

Fade-out

List Box White
Allocate the knitting element for fading-out in this shape line.

The knitting elements of the Fade-out folder and its subfolders are offered.

The standard module is represented in italics.

Multi-step Narrowing

List Box White
Allocate the knitting element for Fair Isle or Doubling in this shape line.
The knitting elements of the Multi-step Narrowing folder and its subfolders are offered.

Binding-off

List Box White
Allocate the knitting element for Binding-off in this shape line.

The knitting elements of the Binding-off folder and its subfolders are offered.

The standard module is represented in italics.

  • Widening
    List Box White
    Allocate the knitting element for Widening in this shape line.

    • The knitting elements of the Widening folder and its subfolders are offered.

    • The standard module is represented in italics.

  • Width (cover width)
    TextBox+Spin_1
    Specify number of stitches that are covered

    • 1 to 6 stitches

    • The standard value 6 is represented in italics

Markings

Table of line markings:

  • Running numbering

  • Index Color
    Click the color to change the color value.

  • XStitches
    Horizontal distance to the selected anchor point of a shape line

  • YStitches
    Vertical distance to the selected anchor point of a shape line

  • Anchor Point
    Marking refers to the startpoint or endpoint of the shape line.

    • Startpunkt

    • Endpunkt

  • Width
    Inserting width of the knitting element (e.g. for fashioning marks)

  • Knitting Element
    Select knitting element in the drop-down list.
    The default selection offers start modules for the V-neck.

  • Inserting Direction
    Inserting direction of the knitting element

    • nach links
      Insert knitting element to the left

    • nach rechts
      Insert knitting element to the right

The markings of a line cannot be mirrored.

How to Create a Line-bound Marking

Behavior of All Sizes

Settings on the behavior of a line:

Following settings will affect all sizes.

  • Behavior
    Determine the basic properties of the line.

    • Default
      No special behavior

    • Line End on Center
      For mirrored shapes with opening (e.g. cardigan)
      Position the endpoint of the line fast and easily on the center axis.
      BehaviorHorizontalAlwaysToMiddleline
      The existing dimensioning will be ignored.

    • Line End on Base Line
      For mirrored shapes with opening (e.g. cardigan)
      Position the endpoint of the closing line fast and easily on the basic line.
      BehaviorVerticalAlwaysToBaseline

    • Line for the Start
      Area for the start within the total height

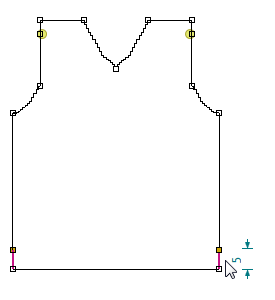

      BehaviorIgnoreShapeLineForRasterize
      This area will not be rasterized in the M1plus.
      A knitting element for the start will be inserted in the M1plus instead of the area below the basic pattern. The height of the start is specified via RS1.

  • CheckBoxOnFill Neckline
    The area of the neckline remains within shape for the yarn carrier to knit continuously. During further processing the cut-out will be performed with scissors along the marking or the narrowings.

    • Activate the checkbox of the opposite line as well if these lines are not symmetrical.

    • With a crew neck, activate the checkbox of the horizontal line with binding-off as well.

  • Tipp Beside necklines, this function can be used for all areas outside shape edged by shape lines.

Line Preview

You can switch on the line preview by the CheckBoxOnShow Line Preview check box in the Line Properties tool window.

ShapeLineProperty_DetailView_S-curve

The preview shows the symmetrical line on the opposite additionally to the current line.

  • ZoomPlusZoom In
    Look at details of the line.

  • ZoomMinusZoom Out
    Look at the curve line, add preference points.

  • ZoomBestToFitOptimum
    Overview the current line and the line on the opposite.

  • Add Preference Point context menu
    You can influence the path of a preset stepping by preference points.

HowTo_Philosophy_Small How to Change the Stepping of a Line:
Preset Stepping
