Narrowing Settings

How to Change the Narrowing Specifications in the Armhole Narrowing at the Body:

    • The dimensioned shape is opened in the Dimensioning View FormularShapeView.
    • The narrowing stepping specifications are entered in the armhole narrowing.
    • The Narrowing, above Stitch ^ / underneath Stitch v, combined transfer narrowing module is required.
    • Narrowing width 6 is required.
    • The underneath narrowing look is required.
  1. Open the context menu for the left shape line of the armhole narrowing.
    ChangeNarrowingAttr_ContextMenu
  2. Select the ShapeLinePropertiesLine Properties.
    • The Line Properties tool window appears.

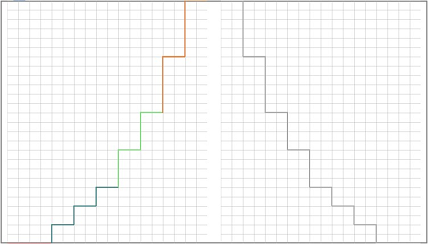

    • The selected shape line and the mirrored shape line appear in the detail view on the right.
      ChangeNarrowingAttr_DetailViewIni
  3. Keep the Standard option in the BehaviorList Box White list box.
  4. Keep the CheckBoxOffFill Neckline check box deactivated.
  5. Do not make settings in the Stepping Parameters group box.
  6. Click on the line ID M of the main row in the Line table.
    • The attributes of the M line appear in the group box at the bottom.
  7. Go to the Attributes section.
  8. Select the Narrowing, above Stitch ^ / underneath Stitch v, combined transfer module in the List Box White list box of the Narrowing group box.
  9. Select the value 6 in the WidthTextBox+Spin_1 edit box.
  10. Select the List Box Whiteunderneath option in the LookNarrowLookBelow list box.
    • The narrowing specifications of the main row M are passed down to the sub-rows.
    • The selected narrowing specifications are determined for the shape line.
