Define the Shoulder Gore at the Front and Back of the Body

How to define the shoulder gores at the front of the body:

  1. Open the context menu for the left diagonal shape line of the shoulder at the front.
    LineProperties_Gore_ContextMenu
  2. Select the ShapeLinePropertiesLine Properties.
    • The Line Properties tool window appears.

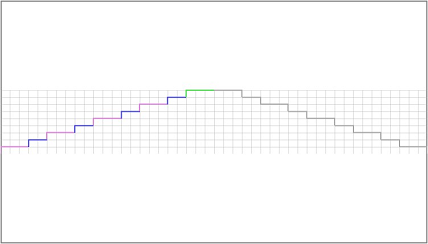

    • The selected shape line and the mirrored shape line appear in the detail view on the right.
      LineProperties_Gore_DetailViewIni
  3. Go to the Stepping Parameters group box.
  4. select the Angled Outside Shape option in the Stepping KindList Box White list box.
    • The detail view updates.
      LineProperties_Gore_LineTypeSelected
  5. Keep the value 0 in the Step WidthTextBox+Spin_1 edit box.
  6. Select the even-numbered option in the Stepping in the HeightList Box White list box.
    • The detail view updates.
      LineProperties_Gore_EvenSelected
  7. Keep the value 0 in the Min. Height at the End of LineTextBox+Spin_1 edit box.
  8. Go to the M row of the Line table.
  9. Select the Gore option in the List Box White list box of the Function column.
  10. Do not make changes in the group box for Attributes, Markings and Behavior of All Sizes.
    • The Gore knitting mode is allocated to the shoulder.
Proceed the same way to define the shoulder gores at the back of the body.
