Binding-off

How to Define a Binding-off Area in the Neck:

    • The dimensioned shape is opened in the Dimensioning View FormularShapeView.
    • The startpoint and endpoint of the binding-off area are dimensioned horizontally and vertically.
      BindingOff_ShapePointsWithDimensionings

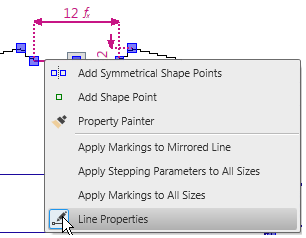

  1. Open the context menu for the left shape line of the binding-off area.
    BindingOff_ContextMenu
  2. Select the ShapeLinePropertiesLine Properties.
    • The Line Properties tool window appears.

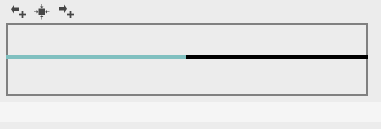

    • The selected shape line and the mirrored shape line appear in the detail view on the right.
      BindingOff_DetailViewIni
  3. Do not make settings in the Stepping Parameters group box.
  4. Go to the row with line identification M in the Line table.
  5. Select the Binding-off option in the List Box White list box of the Function column.
    • The Binding-off Module column appears.
  6. Select the Binding-off, neckline, start, fast, 01 module in the Binding-off Module column in the List Box White list box.
    • The selected binding-off specifications are determined for the shape line.
