Narrowing Settings

How to Change the Narrowing Specifications in the Armhole Narrowing at the Body:

    • The dimensioned shape is opened in the Dimensioning View FormularShapeView.
    • The narrowing stepping specifications are entered in the armhole narrowing.
    • The Narrowing, above Stitch ^ / underneath Stitch v, combined transfer narrowing module is required.
    • Narrowing width 6 is required.
    • The underneath narrowing look is required.
  1. Open the context menu for the left shape line of the armhole narrowing.
    ChangeNarrowingAttr_ContextMenu
  2. Select the ShapeLinePropertiesLine Properties.
    • The Line Properties tool window appears.

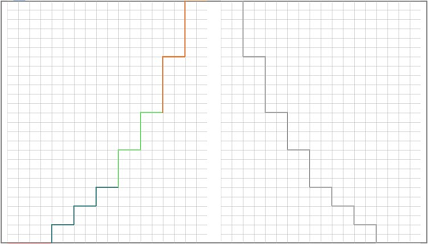

    • The selected shape line and the mirrored shape line appear in the detail view on the right.
      ChangeNarrowingAttr_DetailViewIni
  3. Do not make settings in the Stepping Parameters group box.
  4. Click on the line ID M of the main row in the Line table.
    • The attributes of the M line appear in the group box at the bottom.
  5. Go to the Attributes section.
  6. Select the Narrowing, above Stitch ^ / underneath Stitch v, combined transfer module in the List Box White list box of the Narrowing group box.
  7. Select the value 6 in the WidthTextBox+Spin_1 edit box.
  8. Select the List Box Whiteunderneath option in the LookNarrowLookBelow list box.
    • The narrowing specifications of the main row M are passed down to the sub-rows.
    • The selected narrowing specifications are determined for the shape line.
