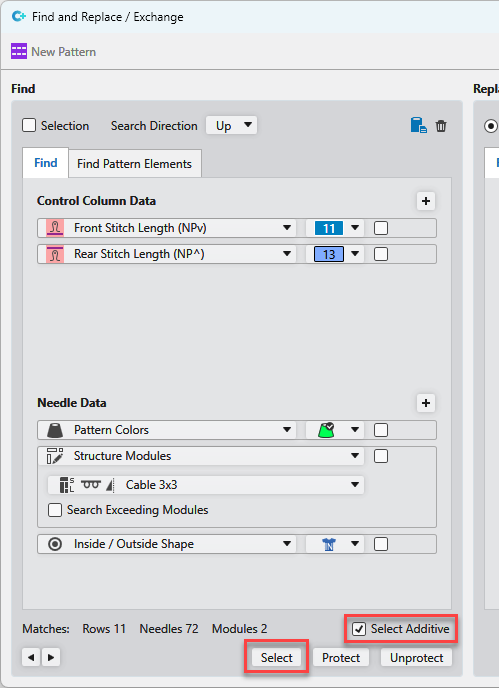

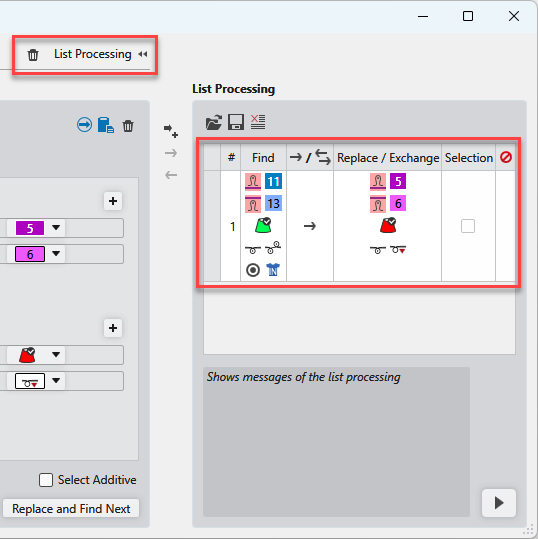

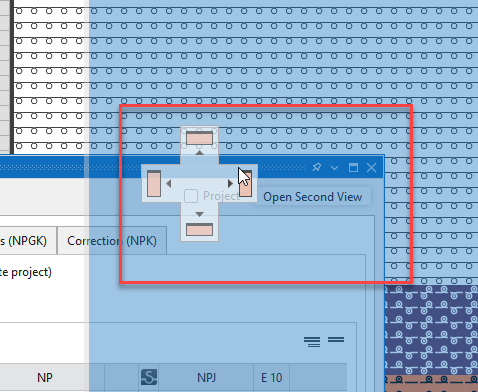

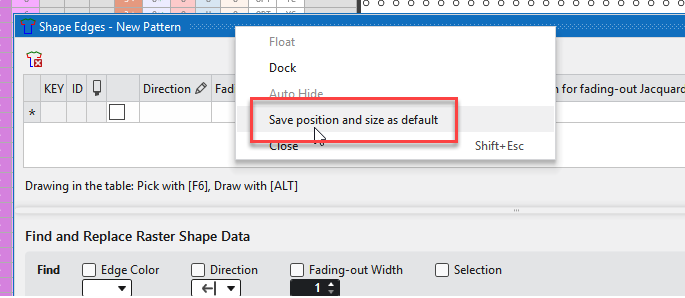

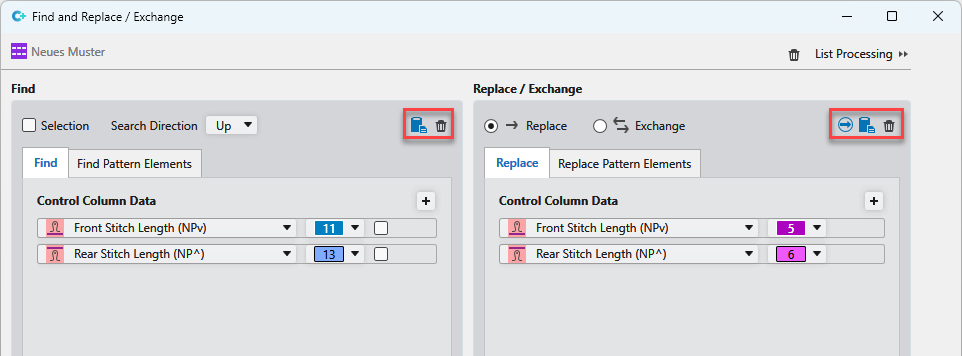

What is new in CREATE DESIGN?

Release V2.10 07/2025

File Version: 18 (V2.10)



Combining Main Shape Lines

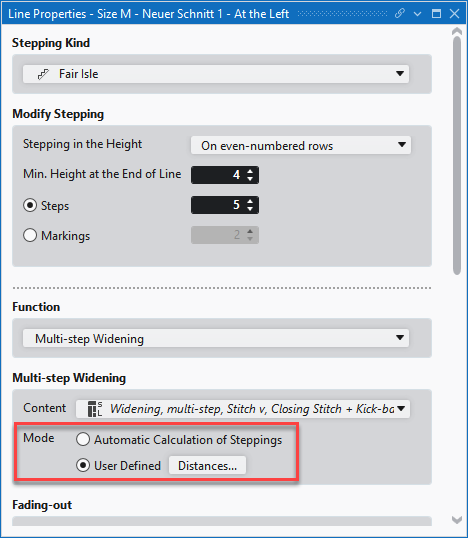

In a lined shape with input format stitches or steps, several contiguous main lines can be combined into one main line.

    43

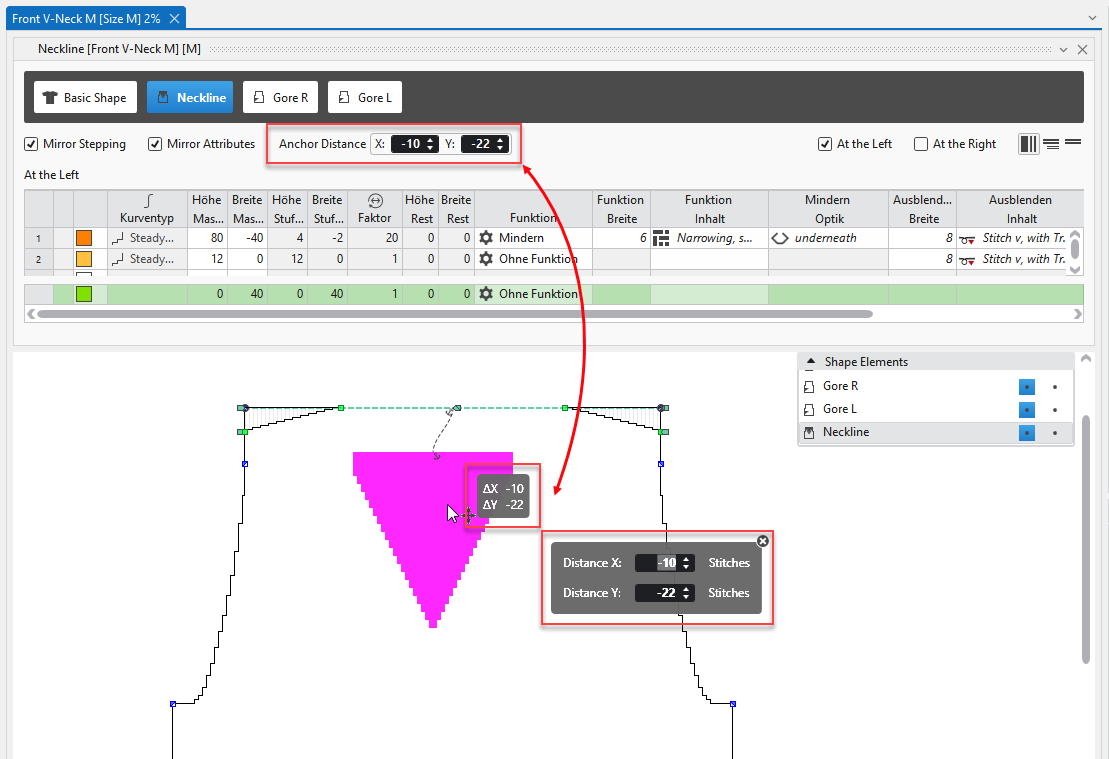

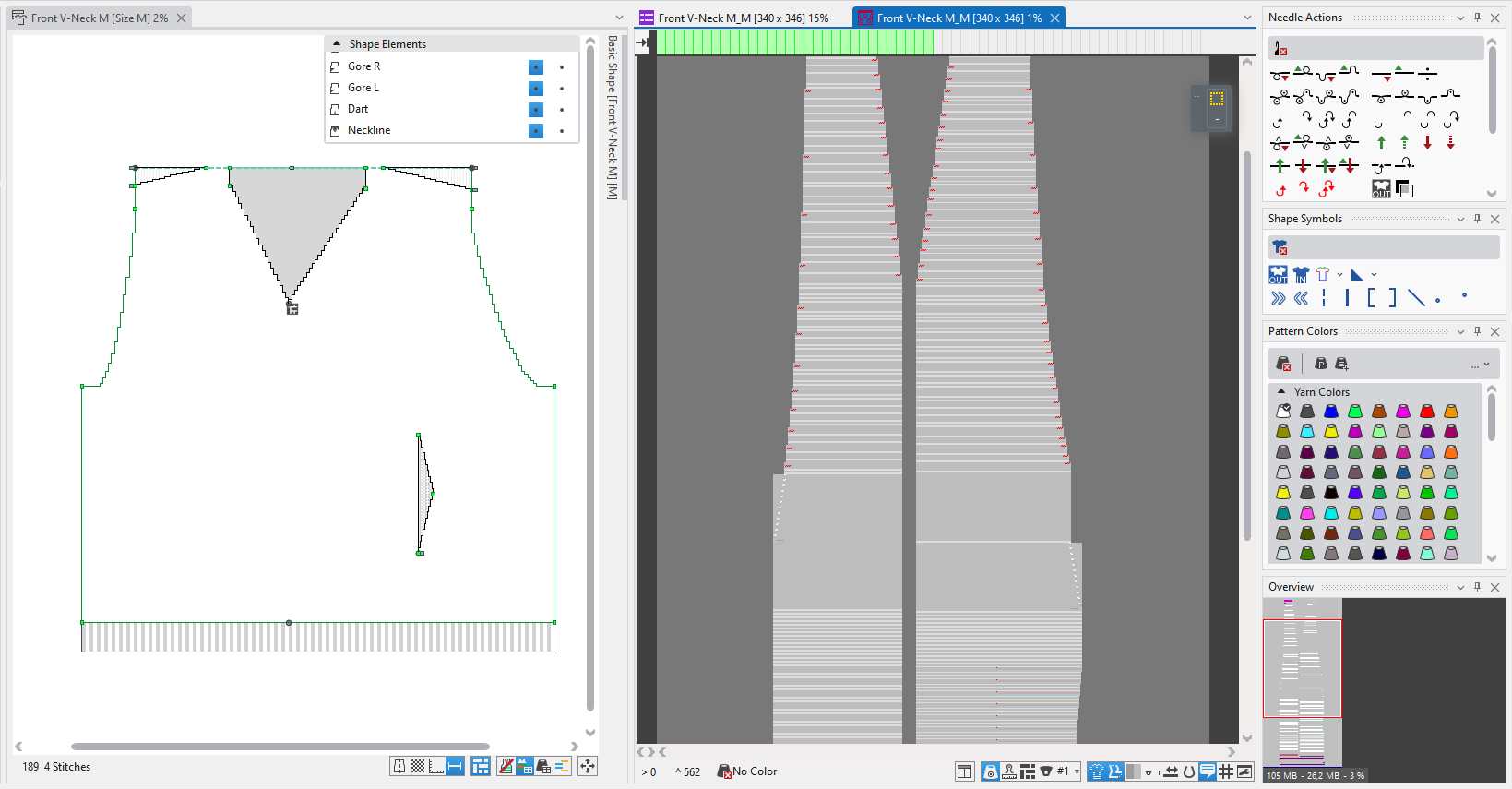

    Select several connected lines in the lined shape view.
    44
    Click the Combine Shape Lines function of the context menu.
  1. The lines are combined into a user-defined line.

User Defined Curve Type

You can select and combine the lines in line table as well.
Combine Shape Lines function of the context menu

Create Shape From Image

    45
    Activate the Create Shape from Image option in the New Lined Shape Project or New Lined Shape dialog box.
    46
    Load the desired image with Load Image....
    47
    Click the desired color of the image with the cursor.
  1. The color appears under Colors for Outside Shape.
    48
    If desired, click more colors.
    49
    Close the dialog box with OK.

New lined shape project (dialog box)

DXF Export Reworked

The Lined Shape Editor provides the Export as DXF File function.

This saves the selected lined shape as a DXF file.

This function was reworked.

When exporting, new shape points can be created in the following dialog for the start width and the minimum height at the end of the line.

As a result, the DXF shape is created true to size according to the lined shape.
