How to Load a New License to the Smart Card

  1. E-mail with credit code

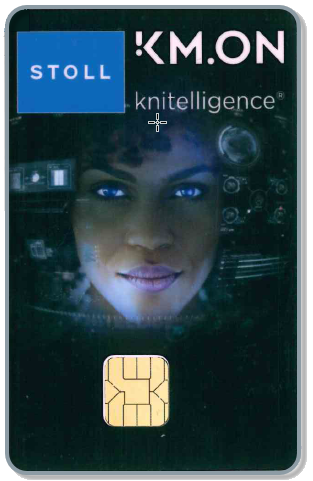

  2. STOLL KM.ON Smart Card at the computer
    1
    Start the CREATE PLUS CREATE DESIGN CREATE LITE.
    2
    If your STOLL KM.ON Smart Card has no license or an invalid license, this input window appears.

    - or -
    Open the input window purposefully.
    File ribbon / Support / Enter Product Key button
    3
    Compare the serial number of the Smart Card in the input window with the one in the e-mail.
    4
    Copy the credit code to the clipboard.
    5
    Click the Paste button at left of the edit boxes.
    6
    Click the OK button.
  1. The successful loading of the card is confirmed to you.

If the credit is not yet expired or for additional features:

    7
    Start the CREATE .
    8
    Open the input window purposefully.

    File ribbon / Support / Enter Product Key button
    9
    Compare the serial number of the Smart Card in the Support window with the one in the e-mail.
    10
    Copy the credit code to the clipboard.
    11
    Click the Paste button at left of the edit boxes.
    12
    Click the OK button.
  1. The successful loading of the card is confirmed to you.

If the credit is already expired:

  1. E-mail with credit code
  2. STOLL KM.ON Smart Card at the computer
  3. No other Smart Card is connected to the current M1plus workstation.
    1

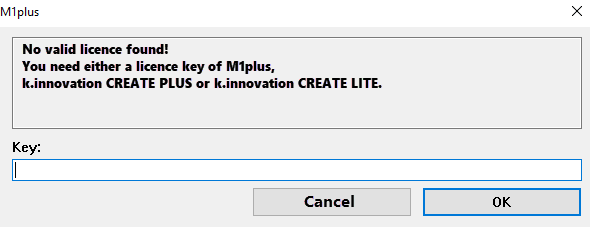

    Start the M1plus .
  1. 2
    Copy the Charge Code to the clipboard.
    3
    Paste Charge Code from the clipboard into the Key edit box.
    4
    Confirm input with OK.
  1. The successful loading of the card is confirmed to you after a short time.

If the credit is not yet expired or for additional features.

  1. E-mail with credit code
  2. STOLL KM.ON Smart Card at the computer
  3. No other Smart Card is connected to the current M1plus workstation.
    1
    Start the Command Prompt.
    Command Prompt.
    2
    Change to the disk drive of the M1plus installation.
    3
    Enter the file path to the M1.exe application file.
    Example: "C:\Program Files (x86)\Stoll\M1plus\6.10.021\bin\m1.exe"
    4
    Add –EVP to the input.
    "C:\Program Files (x86)\Stoll\M1plus\6.10.021\bin\m1.exe" -EVP
    5
    Copy the Charge Code to the clipboard.
    6
    Add the Charge Code from the clipboard to the input.
    7
    Confirm the entry with the Enter key.
  1. The successful loading of the card is confirmed to you after a short time.
  2. 8
    Exit the Command Prompt.

If the credit is not yet expired or for additional features:

    1
    Start the CREATE .
    2
    Open the input window purposefully.

    File ribbon / Support / Enter Product Key button
    3
    Compare the serial number of the Smart Card in the Support window with the one in the e-mail.
    4
    Copy the credit code to the clipboard.
    5
    Click the Paste button at left of the edit boxes.
    6
    Click the OK button.
  1. The successful loading of the card is confirmed to you.
