Mirror k&w Design to Knitting Layer L1

I. Apply a pattern element from the front (L0) to the back (L1):

  1. The design of layer 0 must be created with Container module Mirroring.
    2. 1

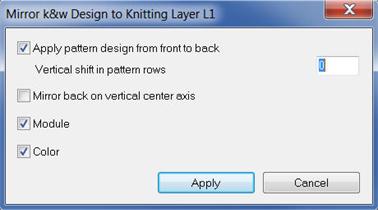

    Run the help functions via the Edit / Mirror k&w Design to Knitting Layer L1... menu.
    2
    Click on the checkbox Apply pattern design from front to back.
  1. without selection
    The entire pattern design of the layer L0 is applied to the layer L1.
  2. with selection
    Only the selected area of the layer L0 is applied to the layer L1.
    3
    If necessary, move the motif in the back vertically in relation to the front via the Vertical shift in pattern rows input field.
  1. Specified number without sign: Pattern design by n pattern rows to the top.
  2. Specified number with negative sign: Pattern design by n pattern rows to the bottom.
    4
    Activate the option Module, Color or both.
    5
    Carry out with apply.
  1. The design is applied from the layer L0 to the layer L1.

A mirrored module is inserted with the same racking direction.

II. Mirror back on vertical center axis:

    1
    Run the help functions via the Edit / Mirror k&w Design to Knitting Layer L1... menu.

The Apply pattern design from front to back checkbox is active.

    2
    Activate the Mirror back on vertical center axis checkbox.
    3
    If necessary, move the motif in the back vertically in relation to the front via the Vertical shift in pattern rows input field.
    4
    Carry out with apply.
  1. The design and the modules are mirrored on the center axis and applied to the back.
