Create the shape in the M1plus Shape Editor

Generate shapes of your own for a front with neck and shoulder gore:

    1
    Open the Shape Editor.
    2
    Enter the values for the Basic Shape element of the shape into the table.

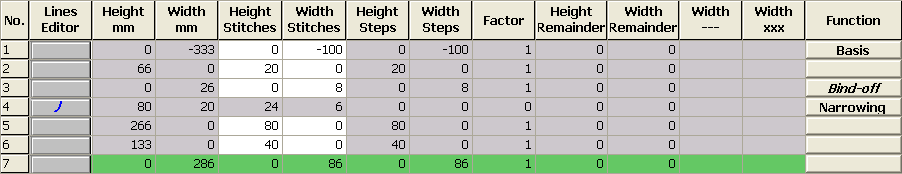

Basic element Front

Additional pattern rows for the collar (= edge line 6) are added in the basic shape element.

    3
    Allocate the 2x2 RL rib module to edge line no. 6 in the Fading-out tab.
    4
    Specify the entire width of the collar under Fade-out width.
    5
    Create a new element for the neck gore with .
    6
    Set Gore under Type:.

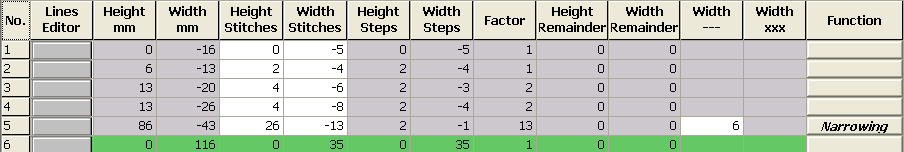

Neck gore element

    7
    Allocate narrowing to the edge line No. 5.
    8
    Specify the y-distance to the end line for this element.
    9
    Create a further new element for the shoulder gore.
    10
    Set Gore under Type:.
    11
    Activate the mirrored checkbox.
    12
    Create the table for the left gore element under .

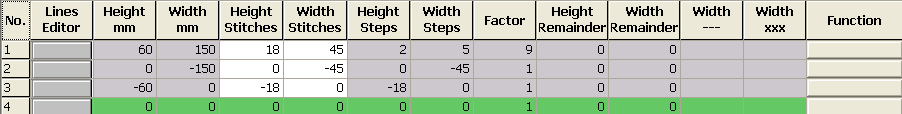

Gore element (for the shoulder)

    13
    Specify the position for the gore element:


: Depending on the starting point of the gore and on the direction of knitting.

Further settings for the gore element are not necessary.

    14
    Create another New element for the opening of the neck gore.
    15
    Set Opening under Type:.
    16
    Create a new line in the table.
    17
    Enter 36 in the Height Stitches column.

This value corresponds to the total height of the neck gore element.

    18
    Specify the y-distance to the end line for this element.
    y distance from the end line: 40
    19
    Save the shape and close the Shape Editor.
