Draw basic pattern

I. Draw the motif:

    1

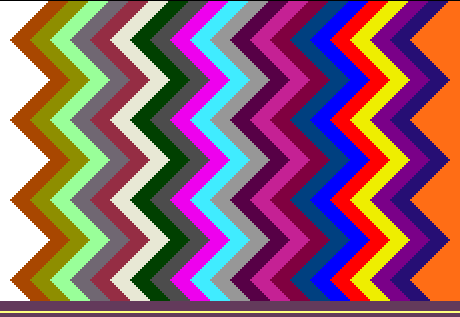

    Draw-in the desired motif with yarn colors.

When drawing pay attention to the distances between the color fields.
A distance of ~2.8 inches is necessary, if yarn carriers are combined (double assignment).

Distances between the color fields that are worked in the same system:

ADF - yarn carrier ("swiveled")

Min. distance between the color fields

Yarn carriers on different rails

0.7 Inch

Yarn carriers on the same rail

~ 2.8 inches

(for each yarn carrier 1 inch + 6 nic)



    2

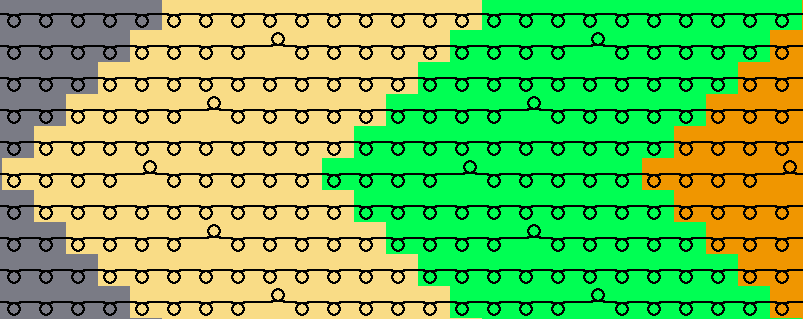

    Draw-in the following structure in the color fields.

The first pattern row is worked with V0 racking where the stitch is knitted at the rear.
In the next row with VR1 racking the stitch then is transferred to the front and the pattern row is knitted.

    3
    Save pattern.
