Complete the Pattern

Complete the pattern:

Before performing the processing you can define a cycle for length regulation, if necessary.

    1
    Start the technical processing via the Steps of Processing toolbar with the button.
  1. The query Generate MC Program appears.
    2
    Confirm the query with OK.
  1. The Save pattern as dialog box appears.
    3
    Enter the File name and specify the path.
    4
    Close the dialog box with Save.
    5
    Call up the Sintral Check with and execute it.

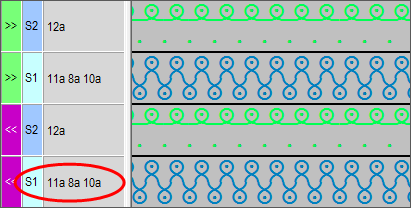

Result:

Yarn carrier 11a

Weft yarn carrier before system S1

Yarn carrier 8a

The yarn carrier for plating color 1 knits by system S1

Yarn carrier 10a

The yarn carrier for plating color 2 knits by system S1

Yarn carrier 12a

The yarn carrier for half Milano knits by system S2

The inserted weft yarn is not visible in the technical view as the the weft yarn carrier Q is defined in the Plating dialog box
