Create shape: Saddle shoulder with 2x2 rib

I. Generate a front and back in the Shape Editor:

All the shape elements and the k&w file (shape with k&w Arrangements) must be saved in the same directory.

    1
    Open the Shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Select a k&w... entry under General shape data.
    2. 3
    Set Input format to Stitches.
    4
    Activate mirrored under Elements.
    5
    Specify starting width.
    6

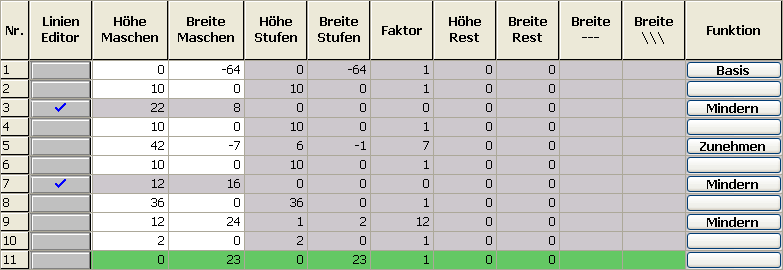

    Create the table under Left Lines and enter the values for the front and the back.

Front / Back element

Line Editor Line 3 left

Factor
Grouped

Group

Height
Steps

Width
Steps

Factor

Width
- - -

Width
\ \ \





22

8







2

1

10

2

1





0

1

1

2

1





Line Editor Line 7 left

Factor
Grouped

Group

Height
Steps

Width
Steps

Factor

Width
- - -

Width
\ \ \





12

16







4

1

2

2

1





0

1

1

2

1





    7
    Allocate the desired attributes Narrowing and Widening to the edges under Function.

Adjustments

Line 3

Narrowing

Fade-out width

5 (odd-numbered)

Fade-out type

2x2 RL rib

Narrowing width

5
(odd-numbered)

Type of narrowing

Body-rib

Line 5

Widening

Fade-out width

1

Fade-out type

Jersey

Widening width

1



Widening type

Standard

Line 7

Narrowing

Fade-out width

4
(even-numbered)

Fade-out type

Private
Fade-out module

2x2-Rib-^^vv

Narrowing width

4
(even-numbered)

Type of narrowing

Body Rib Layers apart

    8
    Allocate the Narrowing function to the shoulder edge (A) under Function in the General tab.

Setting

Line 9

Narrowing

Fade-out width

0

Narrowing width

0

Type of narrowing

Perform narrowing in sleeve

Generate a shape for the back with the same specifications as for the front without the gore element.

II. Generate the neck gore element in the Shape editor:

    1
    Open the shape Saddle shoulder-2x2 front part.
    2
    Generate a new element in the Shape Editor with .
    3
    Select the Gore entry in the Type section list.
    4

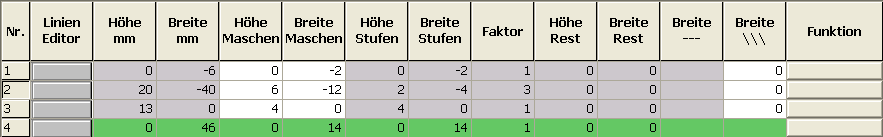

    Set the coordinates for the gore.

Gore in front element

    5
    Define the distance to the base line or to the end line.

Do not connect the gore element to the end line.

III. Generate the element for the sleeve in the Shape Editor:

    1
    Open the shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Select the k&w Sleeve entry in the Type selection menu under General shape data.
    3

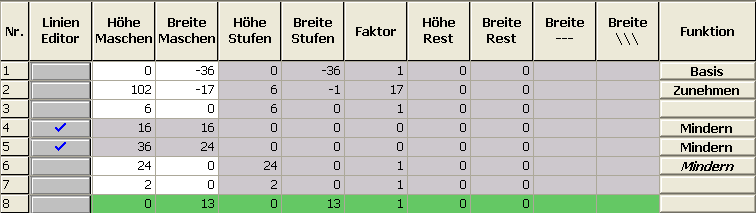

    Enter the values in the table.

Sleeve

Line Editor Line 4 left

Factor
Grouped

Group

Height
Steps

Width
Steps

Factor

Width
- - -

Width
\ \ \





12

16







4

1

2

2

1





0

1

1

2

1





Line Editor Line 5 left

Factor
Grouped

Group

Height
Steps

Width
Steps

Factor

Width
- - -

Width
\ \ \





36

24







6

1

5

2

1





0

1

1

2

1





    4
    Allocate the attribute for Narrowing and Widening under Function.

Adjustments

Line 2

Widening

Widening width

1



Widening type

Standard

Fade out

Fade-out width

1

Fade-out type

Jersey

Line 4 + line 5

Narrowing

Fade-out width

6
(even-numbered)



Fade-out type

2x2 RL- rib (vv^^)

Narrowing width

6
(even-numbered)



Type of narrowing

Sleeve Rib Layers apart

    5
    Allocate the Narrowing function to the sleeve element on the saddle edge (B) under Function in the General tab.

Line 6

Narrowing

Fade-out type

no

Fade-out width

0

Type of narrowing
  • Sleeve underneath
  • Sleeve underneath Layers apart

Narrowing width

Narrow entire width of sleeve

III. Generate the Collar shape element:

    1
    Open the shape editor via Shape / Generate/Edit Shape....
    2
    Select the k&w collar entry in the Type selection menu under General shape data.
    3

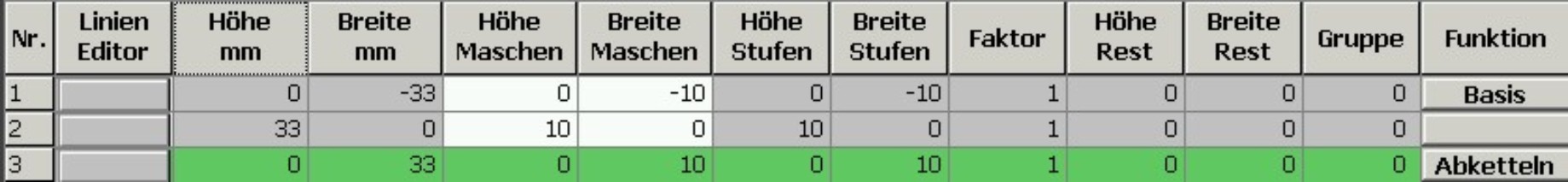

    Specify the information for the collar under Left Lines.

Collar

    4
    Set bind-off for the end line and allocate the attributes under Function in the General tab.

Adjustments

Line 1-3

Fade out

No fading-out

Line 3

Binding-off

Directory

Standard

Module
  • Neckline
  • Fast cut-out
