Create shape: Saddle Shoulder with Pockets

I. Generate a front and back in the Shape Editor:

1: Open the shape editor via Shape /Shape Editor (Generate or Edit Shapes)....

2: Select a k&w... entry under General shape data.

3: Set Input format to Stitches.

4: Activate mirrored under Elements.

5: Specify starting width.

6: Open the table with Left Lines and enter the values for the front and the back.

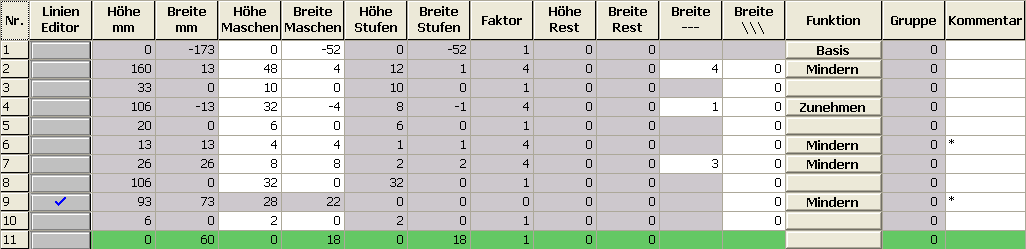

Front / Back

Line Editor Line 9 left
Factor Grouped	Group	Height Steps	Width Steps	Factor	Width - - -	Width \ \ \
		28	22
1	0	2	1	6	0	0
1	0	2	2	8	0	0

Line 6

4 stitches are bind-off in a simulated way in this edge (no.6).

7: Select k&w-Do not knit for the edge (no.9) in the front only under Function in the Connections tab .

Result: The saddle shoulder tilts more into the front.

8: Allocate the desired attributes Widening and Narrowing to the edges under Function.

9: Allocate the Narrowing function to the shoulder edge (A) under Function in the General tab.

Setting
Line 9
Narrowing	Fade-out width	0
	Narrowing width	0
	Type of narrowing	Perform narrowing in sleeve

Generate a shape for the back with the same values as for the front.
Exception: The attribute Do not knit will not be allocated to the edge (no.9)

II. Insert the neck gore element in the front:

1: Open the Raglan Front shape.

2: Generate a new element in the Shape Editor with .

3: Select the Gore entry in the Type section list.

4: Specify the coordinates for the neck gore.

Neck gore in the front

5: Specify the distance to the end line:
Example: 32

6: Save the shape in the directory created beforehand with File / Save or Save As.

Do not connect the gore element to the end line.

III. Generate the element for the sleeve in the Shape Editor:

1: Open the shape editor via Shape /Shape Editor (Generate or Edit Shapes)....

2: Select the k&w Sleeve entry in the Type selection menu under General shape data.

3: Enter the values in the table.

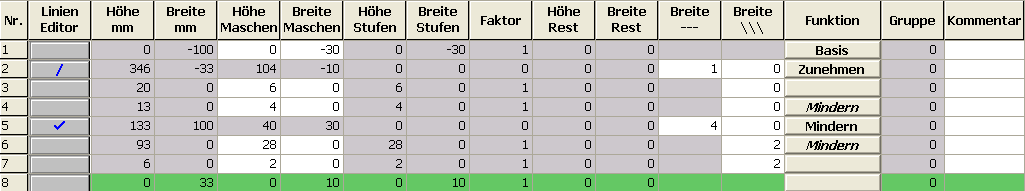

Sleeve

Line 5
Factor Grouped	Group	Height Steps	Width Steps	Factor	Width - - -	Width \ \ \
		40	30
10	1	2	1	1	4	0
0	1	2	1	1	4	0

4: Allocate the Narrowing function to the edge (no.4) under Function in the General tab.

5: Activate Narrow entire width of sleeve in the Narrowing tab.

6: Allocate the Narrowing function to the edge (no.5) under Function in the General tab.

7: Allocate the following attributes in the Narrowing and Widening tabs.

Setting
Line 5
Narrowing	Fade-out width	0
	Narrowing width	Narrow entire width of sleeve
	Type of narrowing	Sleeve underneath Sleeve underneath Layers apart
	Type of narrowing	Sleeve above Sleeve above Layers apart

IV. Generate the element for the collar in the Shape Editor:

1: Open the shape editor via Shape / Generate/Edit Shape....

2: Select the k&w collar entry in the Type selection menu under General shape data.

3: Enter the values for the collar in the table under Left lines:

Front of Collar / Back of Collar

Adjustments
Line 1-3
Fade out	No fading-out
Line 3
Binding-off	Binding-off type	Neckline Fast cut-out

4: Allocate bind-off to the end line under Function in the General tab.

5: Save the shapes in the directory created beforehand with File/Save or Save As.

You have to save all shape elements in the same directory.
