Create shape: Raglan with neck gore

I. Generate a front and back in the Shape Editor:

    1
    Open the shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Select a k&w ... entry under General shape data.
    3
    Set Input format to Stitches.
    4
    Activate mirrored under Elements.
    5
    Specify starting width.
    6
    Insert the entry field for edge lines with the Add new line at end button.
    7
    Open the table with Left Lines and enter the values for the front and the back.

Front / Back

    8
    Allocate the desired attributes Widening and Narrowing to the edges under Function.

Generate a shape for the back with the same specifications as for the front.

II. Insert the neck gore element in the front:

    1
    Open the Raglan Front shape.
    2
    Generate a new element in the Shape Editor with .
    3
    Select the Gore entry in the Type section list.
    4
    Create the table under Left Lines and enter the values for the element.

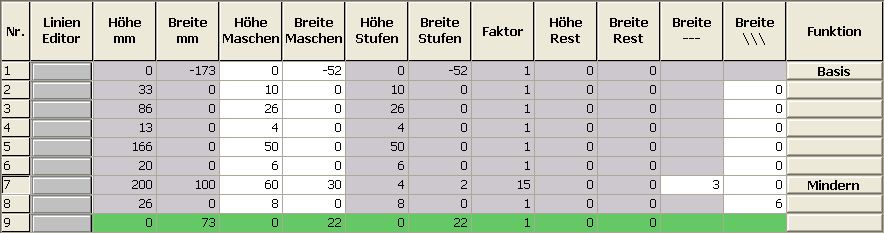

Neck gore in the front

    5
    Define the distance to the base line or to the end line.
    2. 6
    Save shape.

Do not connect the gore element to the end line.

III. Generate the element for sleeve in the Shape editor:

    1
    Open the shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Select the k&w Sleeve entry in the Type selection menu under General shape data.
    3
    Enter the values in the table:

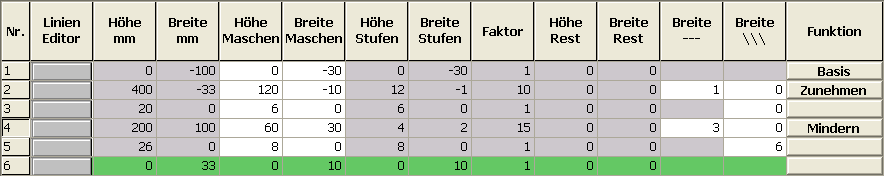

Sleeve

    4
    Allocate the desired attributes Widening and Narrowing to the edges under Function.
    5
    Save shape

After the last narrowing, at least two stitches must still be knit, otherwise the last narrowing will not be performed.

IV. Generate the element for the collar in the Shape Editor:

    1
    Open the shape editor via Shape / Generate/Edit Shape....
    2
    Select the k&w collar entry in the Type selection menu under General shape data.
    3
    Enter the values for the collar in the table under Left lines.

Front of Collar / Back of Collar

    4
    Allocate bind-off to the end line under Function in the General tab.
    5
    Allocate the single-jersey knitting mode in accordance with the collar shape cut-out or fast cut-out.
    6
    Save the collar element

You have to save all shape elements in the same directory.
