Working with the Racking Correction Table

I. Call up the racking correction table and change the entry:

  1. The Basic Pattern state of pattern is loaded.
    1
    Place the cursor on the control column for racking correction in the Symbol View and press the right mouse button.
  1. The context menu with the favorites from the Racking Correction Table appears.
    2
    Place the cursor on the changed entry and press the right mouse button.
    3
    Click Edit entry in the context menu.
    -  or  -
    Select Additional values... in the context menu of the control column Racking Correction (VCI).

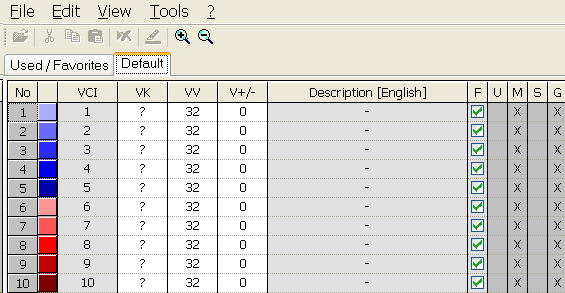

  1. The Racking Correction Table appears.

You can call up the Racking Correction Table also via the Pattern Parameters / Racking correction… menu.

Designations in the Racking Correction Table

Column

Function

Specification

Setting range

VCI

Racking correction functions

Index

1-50

VK

Racking Correction



A (-Z)

Direction of correction

Correction to the left

<

Correction to the right

>

Correction value



0-10

Value undefined

?

VV

Racking speed



32-1

V+/-

Overracking



1-24

Additional racking commands will be displayed according to the used machine type.
