Working with the Auxiliary Take-down Table

Call up the auxiliary take-down table and change the entry:

  1. Carry out changes in the Basic Pattern state of pattern.
    1
    In the Symbol view place the cursor on the control column for auxiliary take-down and press the right mouse button.
  1. The auxiliary take-down context menu with the favorites from the Auxiliary take-down table appears.
    2
    Place the cursor on the changed entry and press the right mouse button.
    3
    Click Edit entry in the context menu.
    - or -
    Select Additional values... in the context menu of the Auxiliary take-down control column.

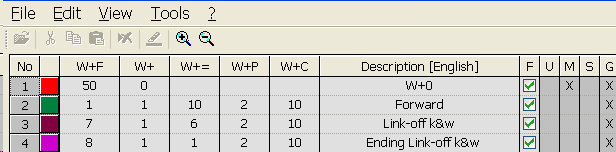

  1. The Auxiliary take-down table appears.

You can call up the Auxiliary take-down table via the Pattern Parameters / Auxiliary take down… menu as well.

Designations in the auxiliary take-down table

Column

Meaning

No.

Consecutive numbering of the entries

Color

Color of entry

W+F

Index for the indirect allocation of the auxiliary take-down value
(Auxiliary take-down menu)

W+

Open or close the auxiliary take-down

W+=

Speed of auxiliary take-down

W+P

Value for the contact pressure of the auxiliary take-down

W+C

Specification of the system number for the auxiliary take-down control

Description

Comments referring the entry

Status columns

Display the status of the entry
