Global settings in configuration:

I. Make global settings for Intarsia in the GlobalParameters dialog box:

  1. No pattern may be open.
    1
    Open the GlobalParameters dialog box with the Pattern Parameters / Global Pattern Parameters... menu.
    2
    Select the desired template for creating your one file under Stoll templates.
    3
    Select another machine type and / or gauge if necessary.
    4
    Enter new file name if necessary.
    5
    Select the saved file under User-defined Files.
    6
    Open the file by the Open user-defined file button.
  1. The GlobalParameters... dialog box appears.
    7
    Click the Default button under Configuration.
  1. The Configuration dialog box will be opened.
    8
    Make the desired settings in the Intarsia tab.
    9
    Confirm the settings as default with Apply or OK.
    10
    Close the GlobalParameters dialog box with .
  1. The specifications will be saved and displayed as pattern related settings in the Configuration dialog box.

The file is saved to the Private folder under D:/Stoll/M1plus/<Version>/ConfigData/Private.

The file saved to the Private folder will be used when creating a pattern.



Setting options in the Intarsia tab:

Section

Function

Knitting out with a number of pattern rows of



List field

Enter the number of pattern rows from which the knitting-out is to be carried out.
: In case of an inferior row number, the yarn carrier remains in the pattern.

Knitting in with a number of pattern rows of



List field

Enter the number of needles, from which the knitting-in is to be carried out.

: With an inferior needle number the yarn carrier remains in the pattern.

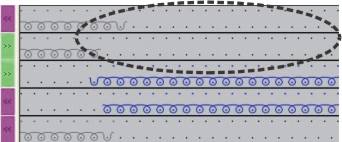

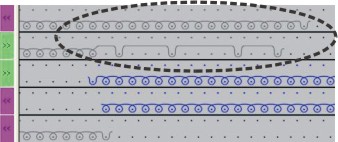

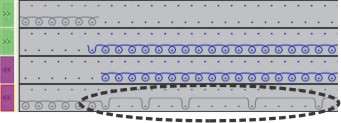

Intarsia / gore binding



<<

The binding will be generated after knitting.
In the stroke from right to left the binding therefore appears on the left side.

<<

The binding will be generated before knitting.
In the stroke from right to left the binding therefore appears on the right-hand side.

List field

Select a module from the Technical / Intarsia border processing / Binding module group.

Border Processing



Feed

If the step on the edge of a color area from one row to the next is greater than specified in the Allowed steps input field, the thread is brought to the start of the following color row by the selected feeding module.

Reduce

The stepping at the edge of the color area (from one row to the next) is reduced to the Allowed stepping, if necessary.

Allowed Stepping

Number of needles by which the color area on the edge may be graded.

: No feeding nor reducing takes place within the stepping.
Standard: 1

Valuate braking distances for Intarsia yarn carriers

Generate adjusting program

Adjusting program will not be included as function in to Sintral.

Adjusting program will be included as function in to Sintral.

:
An adjusting program matching the pattern will be automatically generated and entered in Sintral. An ornamental stitch line is knitted with each of the Intarsia yarn carriers used in the pattern to check and adjust the correct parking position quickly and easily.



List field

  • Braking distance determination Setup1
  • Braking distance determination Setup2

Knitting-in

Make the desired settings for knitting-in the Intarsia yarn carriers

Knitting-out

Make the desired settings for knitting-out the Intarsia yarn carriers

Use only normal yarn carriers



The Intarsia programs are knitted with normal yarn carriers.

The Intarsia programs are knitted with Intarsia yarn carriers.

Tuck structure with float jacquards above a distance of (needles)



List field

Specification of the maximum distance in needles when knitting a float Jacquard

: A tuck binding is automatically carried out above the specified distance.

Net Pick-up

List field

Selection of the module for net pick-up

Starting before Jacquard (rows)

Specification of the quantity of rows for inserting the selected module (net pick-up)

Suppress Picking-up a Single Needle

If the pattern requires a net pick-up of one needle only, this is carried out.

If the pattern requires a net pick-up of one needle only, this is not carried out .

multi gauge transition coarse/fine



List field

Select module from the Technical / MG-Transition coarse-fine module group.

Knitting-in / Knitting-out



With knot

A knot as binding is used.

Binding

A module from the Technique / Intarsia Knit-in / Binding module group is selected.

Feeding

A module from the Technique / Intarsia Knit-in / Feeding module group is selected.

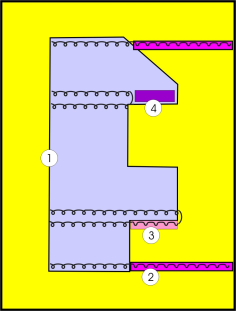

II. Effect of the settings when creating an Intarsia pattern:



No.

Section

Presentation

1

Intarsia / gore binding

2

Knitting-in

3

Border Processing
Feed

4

Border Processing
Reduce
