Combine cycles for length and width:

Usually the length of a fabric changes when changing the width.
Therefore it is beneficial to combine the width and length cycles.

Generate cycle combination:

  1. The length cycles are generated.
  2. The width cycles are generated.
    1

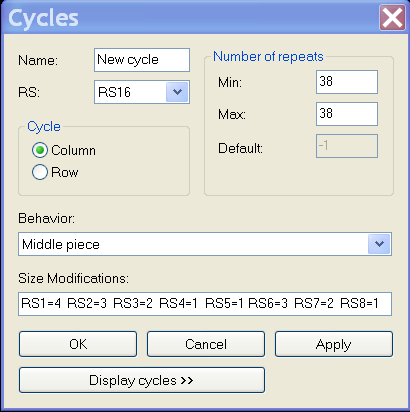

    Open the Cycles dialog box with the Pattern Parameters / Cycle... menu.

You can define the length cycles with the desired repeats together with defining the width cycles for the corresponding sizes in the Cycles dialog box under Size Modifications.

    2

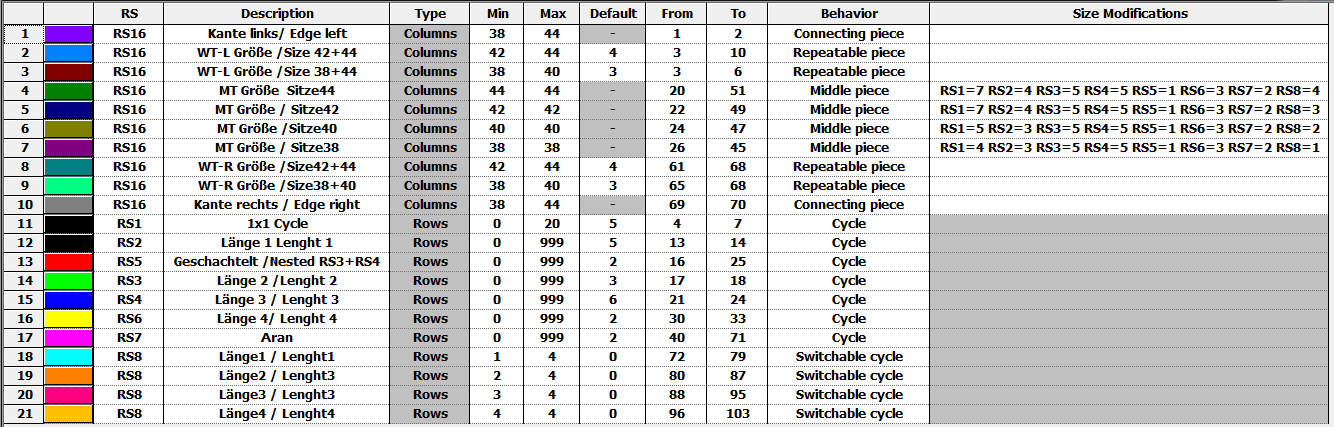

    Open cycle table via the Display cycles >> button.
  1. All defined length and width cycles are displayed in the table.
    3
    Define the length cycles with the required repetition corresponding to the defined center parts in the Size Modifications column.
    -  or  -
    Define them directly when defining the repeatable parts in the Cycles dialog box.

Settings under Size Modifications can be entered with width cycles only.
