Creating shape

Description of the shape parts:

Shape part 1:Front and back

Shape Part 2: Left sleeve

Shape Part 3: Right sleeve

Shape Part 4: Collar

I. Generate a front and back in the Shape Editor:

    1
    Open the shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Select the k&w ... entry under General Shape Data for k&w body front.
    3
    Activate mirrored under Elements.
    4

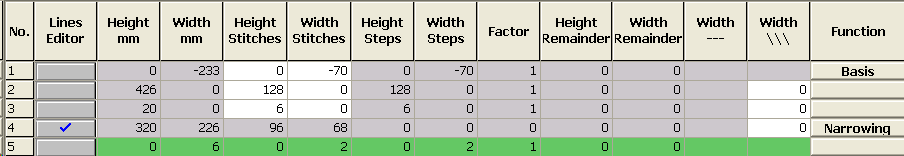

    Create the table under Left Lines and enter the values for the front.

Front: Left lines

Line Editor Line 4 left

Factor
Grouped

Group

Height
Steps

Width
Steps

Factor

Width
- - -

Width
\ \ \





96

68







1

0

2

2

10





1

0

4

2

14





1

0

2

2

10





    5
    Allocate the desired k&w attributes to the Narrowing edge under Function:
    6
    Save the shape part to the desired folder.

Generate a shape for the back with the same specifications as for the front.

II. Generate the element for the left and right sleeve in the Shape Editor:

    1
    Open the Shape Editor.
    2
    Select the k&w ... entry under General Shape Data for k&w sleeve.
    3
    Activate mirrored under Elements.
    4

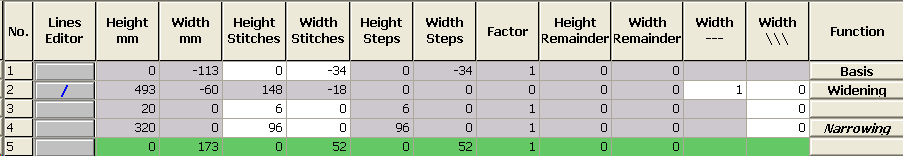

    Generate a new shape / table for the sleeve using the key.

Sleeve

    5
    Allocate the desired k&w attributes to the edges Widening and Narrowing under Function.
    6
    Save the shape part to the desired folder.

III. Generate the element for the collar in the Shape Editor:

    1
    Open the Shape Editor.
    2
    Select the k&w ... entry under General Shape Data for k&w Collar.
    3
    Activate mirrored under Elements.
    4

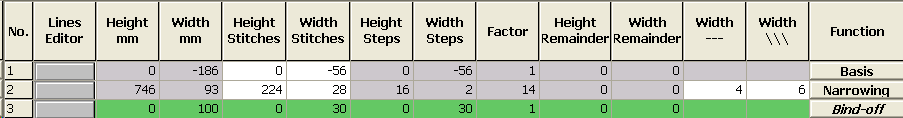

    Generate a new shape / table for the collar using the key.

Collar

    5
    Allocate the desired k&w attributes to the Narrowing edge under Function:
    6
    Allocate Binding off to the end edge under Function and select the Neckline Protection Rows module.
    7
    Save the shape part to the desired folder.

You have to save all shape elements in the same directory.
