Generate Pattern without Shape

I. Generate new pattern:

    1

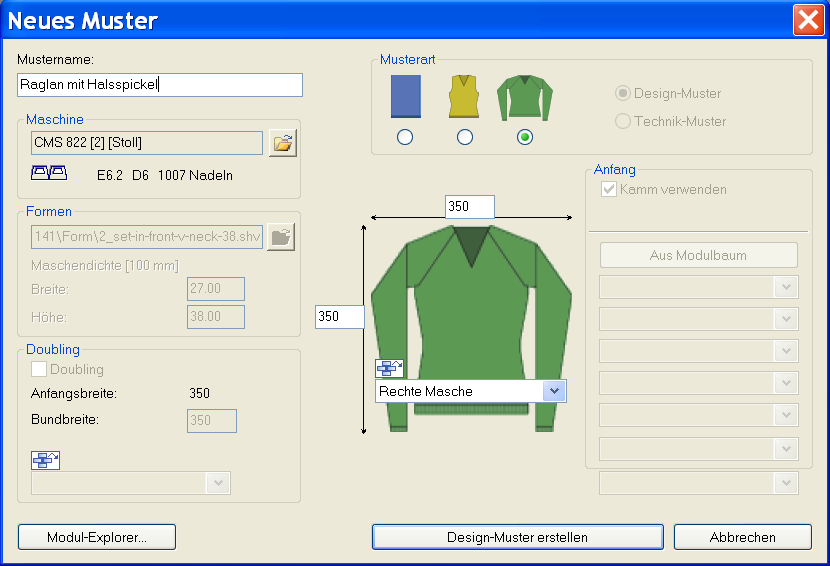

    Select File / New from the menu bar.
    -  or  -
    Click the icon.

Setting

Meaning

Design Pattern

Pattern programing on the M1plus with the new functions

Technical Pattern

Not possible for generating k&w patterns

    2
    Enter a pattern name.
    3
    Select machine type.
    4
    Select Type of pattern k&w pattern.

The k&w pattern type is in the Design Pattern mode available only.

    5
    Enter height and width of the pattern field.
    Height: 350
    Width: 350

With k&w knitting technique, the size of the pattern field is automatically doubled in height and width.

    6
    Select the Jersey binding for the basic pattern via the selection list.

You can not select a start for the k&w pattern at the beginning.
The start will be inserted with the Cut-out shape processing step.

    7
    Confirm the settings with the Generate Design Pattern button.
  1. The Symbol View [Basic] in the k&w presentation appears.

II. Presentation of the knitting layers:

Symbol View [Basic]

Technical view after expanding

    1
    Select the desired presentation in the Pattern Presentation k&w toolbar.

Symbol

Property

All layers

Presentation of the front L0 and the back L1 layer.

Knitting layer L0

Presentation of the layer L0 with all needles (1x1 technique)

Knitting layer L1

Presentation of the layer L1 with all needles (1x1 technique)

Display the columns of the knitting layer L0 only

Presentation of the knitting needles of the front layer L0.

Display the columns of the knitting layer L1 only

Presentation of the knitting needles of the back layer L1

III. Knitting cycle neck gore:
