Edit markings

I. Disply Fair Isle markings:

In the Basic pattern state of pattern you can edit the Fair Isle markings (multi-step narrowing) in the Shape View.

    1
    Load the basic pattern state of pattern with .
    2
    Call up the shape view with the button.
  1. The shape with the determined knitting cycles and the Fair Isle markings is displayed.

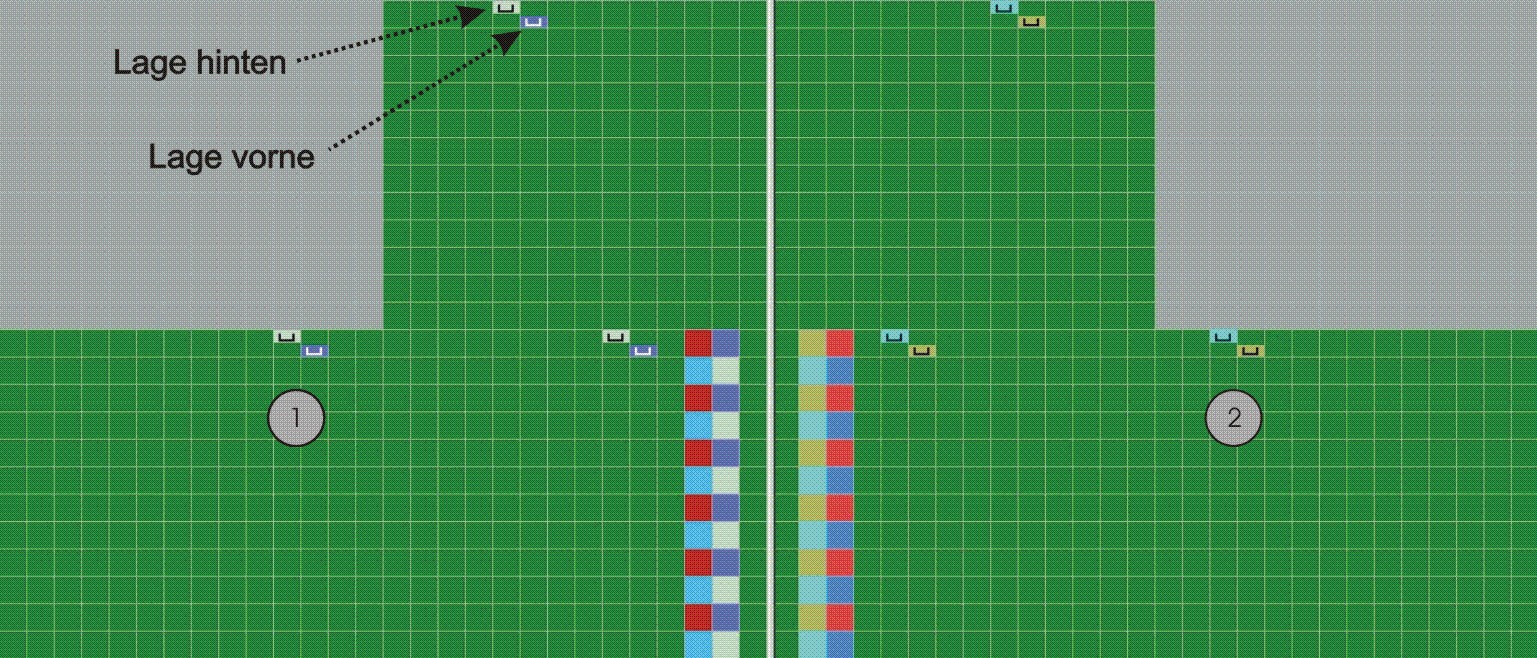

Multi-step narrowing in the Shape View:

No.

Meaning

1

Left shape edge with markings for multi-step narrowing.
Different colors for L0 and L1.

2

Right shape edge with markings for multi-step narrowing.
Different colors for L0 and L1.

II. Move markings:

    1
    Call up Initialize Markings for Multi-Step Narrowing in the context menu of the Shape View.
    2
    Place the cursor on the marking and move the marking with the left mouse button pressed.

The markings can only be moved in the same row.

III. Delete markings:

Types of markings

Multi-step narrowing underneath

Multi-step narrowing above

    1
    Select the type of marking or in the Shape Attributes toolbar.
  1. The selection turns active.
    2
    Select the key additionally.
    3
    Click on the marking with the left mouse button.
  1. The marking is deleted.
    4
    Select the desired layer in order to delete the markings.



Function

You can delete in L0 and L1

You can delete in L0

You can delete in L1

IV. Insert and change markings:

    1
    Select the type of marking or in the Shape Attributes toolbar.
    2
    Enter the desired cover width under .
    3
    Left click the existing marking and overwrite it.
    -  or  -
    Insert the marking at the new position with the left mouse button.

Symbol

Function

Narrowing marking with stitch underneath (default)

Narrowing marking with stitch above

Selecting the cover width 1-3



Cover width 1 = racking by 1 needle

Cover width 2 = racking by 2 needle

Cover width 3 = racking by 3 needle

Selection of layers for inserting the markings

When changing the cover width, the markings must be recalculated manually.
