Create shape: Inserted sleeve with V-neck

I. Generate a front and back in the Shape Editor:

The shape elements and the k&w file (shape with k&w Arrangements) must be saved in the same directory.

    1
    Open the shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Select a k&w ... entry under General shape data.
    3
    Set Input format to Stitches.
    4
    Activate mirrored under Elements.
    5
    Specify starting width.
    6
    Insert the entry field for edge lines with the Add new line at end button.
    7
    Open the table with Left Lines and enter the values for the front and the back.

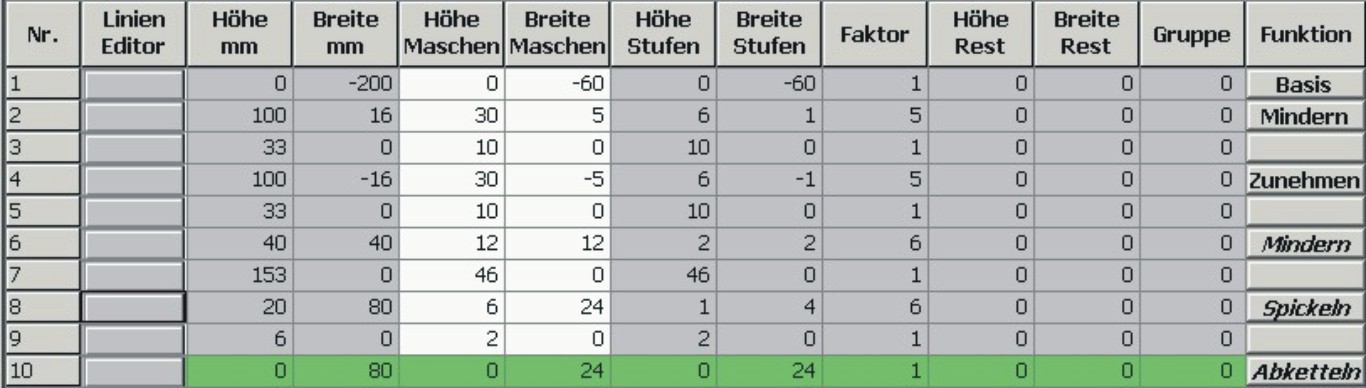

Front / Back

If you change outer dimensions of the front, then you must adapt the back.

    8
    Allocate the desired attributes Widening and Narrowing to the edges under Function.

Generate a shape for the back with the same specifications as for the front.

    9
    Make the following settings for the end line of the back under function in the General and Bind-off tabs.

Line of the edge

Tab
General information

Tab
Binding-off

End line

Binding-off

Neck with draw thread

    10
    Save the shapes in the directory created beforehand with File/Save or Save As.

II. Insert the neck opening element in the front:

    1
    Open the shape Inserted sleeve front.
    2
    Generate a new element in the Shape Editor with .
    3
    Select the entry Neck opening in the Type selection list.
    4
    Set the coordinates for the Neck opening:

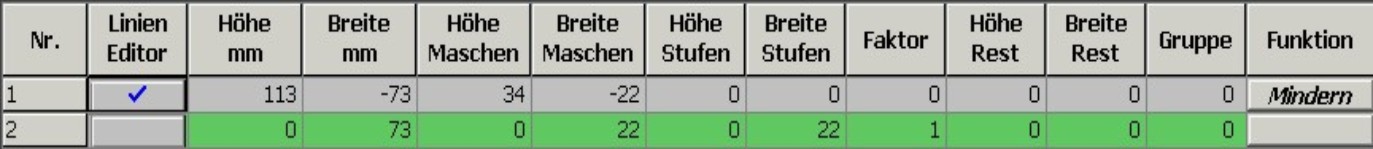

Neck opening in the front

Line Editor Line 1 left

Factor
Grouped

Group

Height
Steps

Width
Steps

Factor

Width
- - -

Width
\ \ \





34

-22









0

2

-2

6







0

4

-2

5







0

2

0

1





    5
    Save shape.

III. Generate the shape for the sleeve in the Shape editor:

    1
    Open Shape Editor.
    2
    Generate a new shape / table for the sleeve using the key.
    3
    Create table with values.

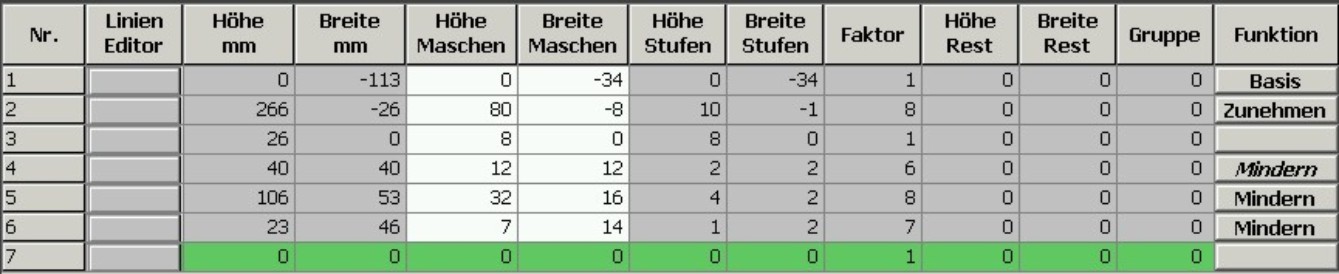

Sleeve

    4
    Allocate the desired attributes Widening and Narrowing to the edges under Function.
    5
    Allocate the following attributes to the edge line (no. 6):

Edge

Tab
General information

Tab
Narrowing

Tab
connections

No. 6

Narrowing

Remaining Narrowing

k&w-Do not knit

Narrow entire width of sleeve

k&w remaining narrowing (SLEEVE-END).

Bind off number of stitches with shoulder gore

The end width of the sleeve and body must be matched to the module width of the collar used.

    6
    Save the shapes in the directory created beforehand with File/Save or Save As.

After the last narrowing in the sleeve, at least two stitches must still be knit, otherwise the last narrowing will not be performed.
