Border Processing Jacquard / Net-end

I. The ways of border processing with adapted Jacquards (yarn bridges):

Border Processing

Due to the motif and the inserted jacquard back, adjustments to the back of the jacquard may be necessary at the border regarding the carriage direction.

Example:

Border processing depends on the carriage direction
The borders of the left and right will be corrected according to the carriage direction.
The module of the jacquard back is repeatedly inserted up to the quantity of needles, which is entered under allowed stepping.

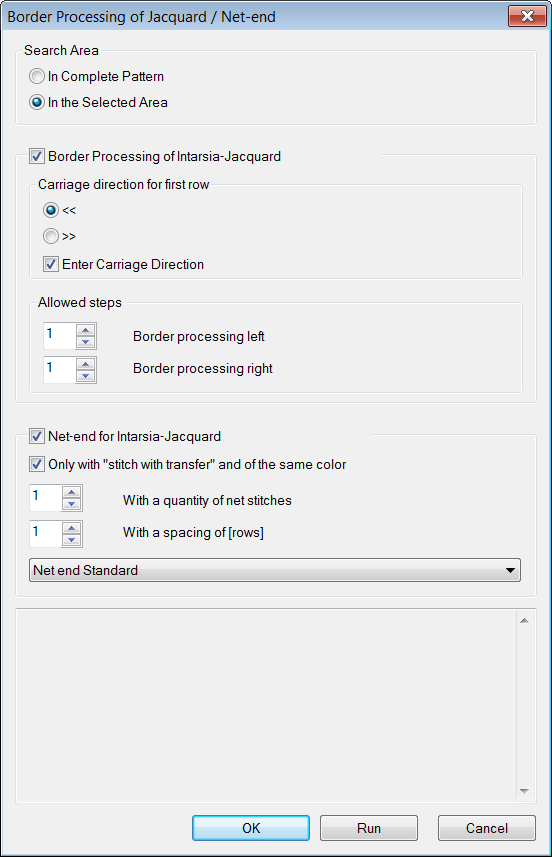

1: Open the Border Processing Jacquard / Net-end dialog box via the Edit menu.

The dialog box appears.

We recommend to do the border processing and the net end following each other as the pattern will be modified by the border processing.
This change may require inserting a Net ending module.

					Function
Jacquard Border Processing
Search Area
		In complete pattern			Edit the border processing of the Jacquard fields within the whole pattern.
		Within the selected area			Border processing only of the Jacquard fields within the selected area. : Multiple selection is possible.
Intarsia Jacquard Border Processing
	Carriage direction for first row
	<<			Carriage direction to the left for the first row of the Jacquard field
	>>			Carriage direction to the right for the first row of the Jacquard field
	Enter Carriage Direction			Switching carriage directions for the left and right border will be inserted into the pattern.
	Allowed Stepping
			Border processing left	Setting for allowed stepping by needles at the left border
			Border processing right	Setting for allowed stepping by needles at the right border
	: No Jacquard back will be entered in the area of allowed stepping

Processing of the net end
Net-end for Intarsia Jacquard
Only with stitch with transfer and same color				The following requirements have to be fulfilled: First SJ row following the Jacquard must contain one color only. First SJ row following the Jacquard must be filled with Stitch with transfer needle action. : Net-end will not be placed if one of these conditions is not met.


		With a quantity of net stitches		Specify the quantity of net stitches at the Jacquard back from which the selected module is to be inserted. : Net-end will not be placed with less stitches at the ending row of the Jacquard.
		With a spacing of [rows]		Quantity of SJ rows interrupting the Jacquard (space) The net-end will be placed if the actual quantity of rows is equal to or greater than the value set. Net-end will not be placed if the actual quantity of rows is less. Stitch with transfer is automatically replaced by Stitch without transfer within the spacing in order to prevent the net stitches from auto transferring to the front. The net back is knitted in the following Jacquard area again. : Recommendation: Avoid the entry of the net end only for small spaces!!! Example: without net-end Example:Setting 5 [rows] With a spacing of 6 rows, the net back is completed. With a spacing of 2 and 4 rows, the net back is not interrupted. : Stitch with transfer will be replaced by Stitch without transfer. With it, the stitch of the Jacquard back will not be transferred.
				Selection of the module for net end Net end Standard Net end 1x1 Technique
